Name: Double Glazing Sealant Sealing Robot Glass Machine For Double Glass
Brand: Jinan Lijiang Automation Equipment Co., Ltd.
SKU: LJTJ2540
Price: 65 USD
Availability: InStock

Home > Products > Insulating Glass Sealing Robot >

Double Glazing Sealant Sealing Robot Glass Machine For Double Glass

Double Glazing Sealant Sealing Robot

Glazing Glass Sealant Sealing Robot

Double Glass Sealant Sealing Robot

Place of Origin:

CHINA

Brand Name:

LIJIANG GLASS

Certification:

Model Number:

LJTJ2540

Request A Quote

Double Glazing Sealant Sealing Robot Glass Machine For Double Glass

Product Details

Voltage:

380V50HZ

Power:

15KW

Dimension(L*W*H):

11000*2000*3500mm

Weight:

4500 Kg

Highlight:

Double Glazing Sealant Sealing Robot

Glazing Glass Sealant Sealing Robot

Double Glass Sealant Sealing Robot

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

65,000 USD per unit

Packaging Details

container

Delivery Time

Within 10 working days

Payment Terms

L/C, T/T

Supply Ability

10 units per month

Vertical Insulating Glass Sealing Robot LJTJ2540

Get Best Price

Video

Automatic Insulated Glass Sealing Robot For Insulating Glass Processing 2500*4000mm

Get Best Price

Video

Automatic Vertical Double Glass Insulated Glass Sealing Robot Machine For Sealant Spreading Processing

Get Best Price

Video

Vertical Automatic Glass Sealing Robot For Insulating Glass IG Unit CE Certificate

Get Best Price

Contact Now

Product Description

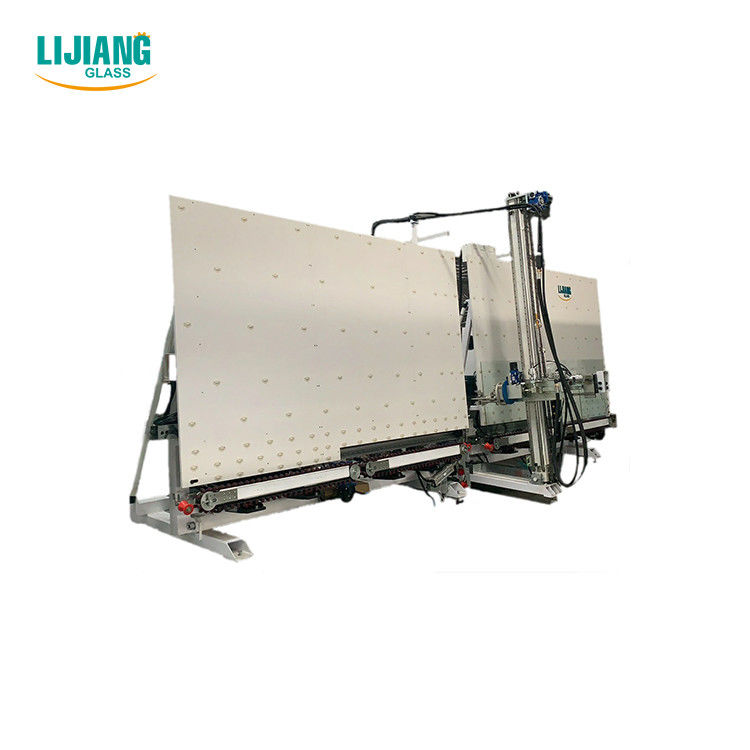

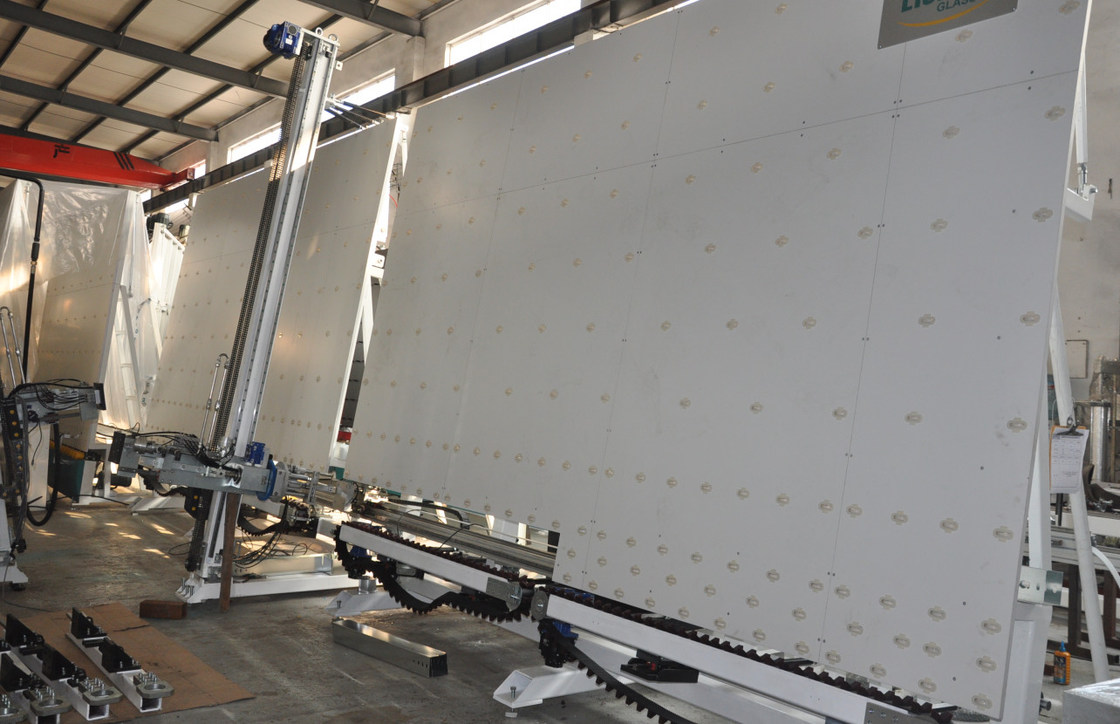

Vertical Insulating Glass Sealing Robot LJTJ2540

Vertical Insulating Glass Sealing Robot LJTJ2540

•Japan Yaskawa servo system control, 8 axes, 7 sets of servo control system, full automatic and high-efficiency sealing machine •4 sections, can storage glass •Adopt timing belt, smooth transfer and accurate position •Automatically repair glass corners with scraper and roller Automatically measure glass size, glue depth (30mm)

Item.	Spec.
Max. glass size	2500*4000mm
Min. glass size	400*300mm
Glass thickness	12-50mm
Working speed	5-40m/min
Air pressure	≥0.6MPa
Squeeze pressure	32MPa
Voltage power	380V 15kw
Overall dimension	1100020003500mm

•Every auto-function is with manual operation •Can coat double glass •Shape glass with optional edges, step glass, triple glass (Optional)

•One set of booster pump controls two groups of sealants (Optional) •Can use silicone, polysulfide and silicone structural sealants •Glue head is in the front of the machine, which is easy for coating step glass

Double Glazing Sealant Sealing Robot Glass Machine For Double Glass 3
