Name: Jumbo Size 3300*7000 Mm Insulating Glass Production Line With Argon Filled
Brand: Jinan Lijiang Automation Equipment Co., Ltd.
SKU: LJBZ3370
Price: 250000 USD
Availability: InStock

Home > Products > Spacer Bending Machine >

Jumbo Size 3300*7000 Mm Insulating Glass Production Line With Argon Filled

3300*7000 Mm Insulating Glass Production Line

Jumbo Insulating Glass Production Line

Argon Filled Insulating Glass Production Line

Place of Origin:

Jinan

Brand Name:

Lijiang

Certification:

Model Number:

LJBZ3370

Request A Quote

Product Details

Product Name:

IG Line

Certification:

CE ISO

Voltage:

380V 50Hz(Customizable)

Aftersale:

Yes

Automation:

Automatic

Machine Type:

Insulating Glass Production Line

Color:

Optional

Function:

Process

Warranty:

1 Year

Max Bending Size:

3300x7000mm

Usage:

Insulating Glass Making

Highlight:

3300*7000 Mm Insulating Glass Production Line

Jumbo Insulating Glass Production Line

Argon Filled Insulating Glass Production Line

Payment & Shipping Terms

Minimum Order Quantity

1 SET

Price

250000

Packaging Details

Container

Delivery Time

50 DAYS

Payment Terms

L/C, T/T

Supply Ability

5 SETS/MONTH

Automatic Aluminum Spacer Bending Machine

Get Best Price

Automatic Aluminum Spacer Bending Machine LJZW2020

Get Best Price

Video

4 Racks Automatic Spacer Bending Machine LJZW2020

Get Best Price

High Speed Insulating Glass Gasket Bending Machine For Insulating Glass Processing

Get Best Price

Contact Now

Product Description

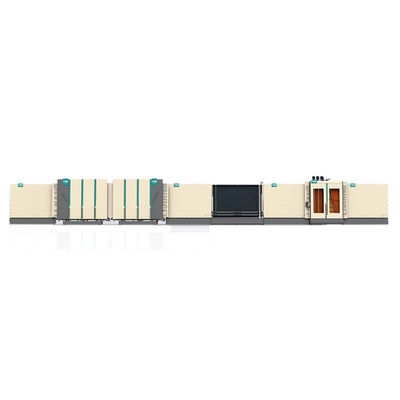

Vertical Insulating Glass Production Line LJBZ3370

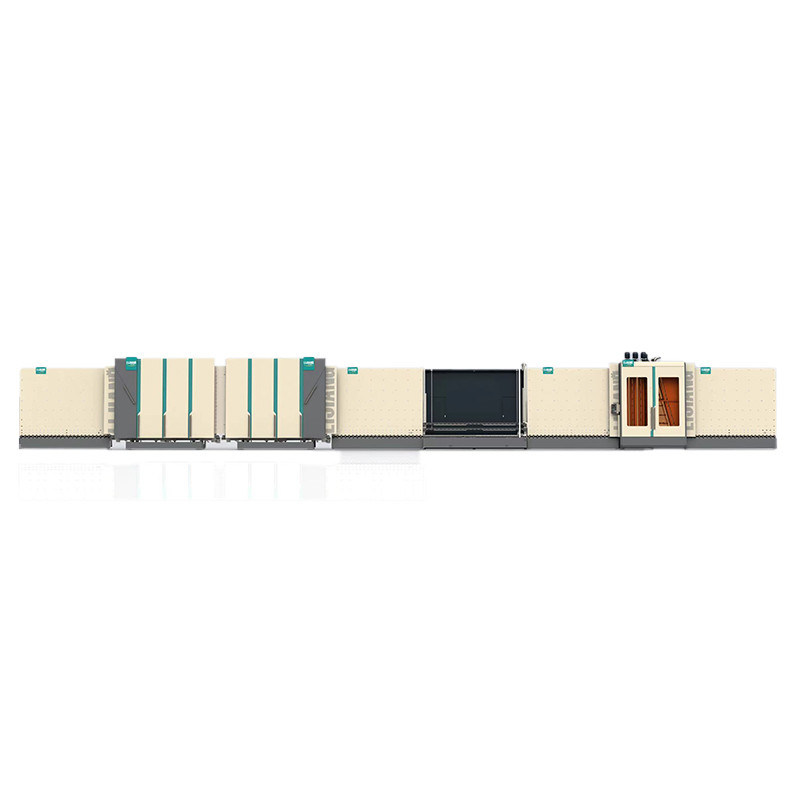

Jumbo Size 3300*7000 Mm Insulating Glass Production Line With Argon Filled 0

transfer section;

washing machine;

discharge section;

inspection and installation section;

transfer section;

pressing and filling section;

discharge section.

* PLC control system, touch screen interface

* Using Siemens servo motors

* Applicable to produce double glass, triple glass

Optional Functions:

•Step glass with optional edges

•Shaped glass

•Filling argon gas automatically

•Air-floating technology to transfer glass

•PLC control system, touch screen interface

•Using Siemens servo motors

•Applicable to produce double glass, triple glass To prevent the glass from being contaminated by wheels and leaving traces to improve the IG production’s high quality.

Parameter:


			Item.

			Spec.

			Max. glass size

			3300mm*7000mm

			Min. glass size

			280mm*400mm

			Glass thickness

			3-15mm

			Insulating glass thickness

			50mm / 60mm

			Glass washing speed

			2-10m/min

			Glass conveyor speed

			45m/min

			Washing brushes

			3 pairs

			Water supply

			Water consumption:0.5t/h conductivity:40μs/cm

			Air supply

			Flow: 0.8m/min

			Air pressure

			≥0.8MPa

			Total power

			3P 380V 50HZ 40KW

			Weight

			6500kgs
