Description

Name:	Cantilever Crane LJXJ300	Max.load:	300kg
Rotated Angle:	90°	Upright Height:	3400mm Or 3900mm
Quantity Of Sucker:	2 Or 4 Or 6 Or 8 Suckers	Air Pressure:	0.5MPa-0.8MPa
Lifting Stroke:	800-2000mm Normal Standard: 1200mm	Gas Source:	Gas Source Compressed Air 6-7Mpa
Highlight:	300kg Glass Vacuum Hoist Lifting Systems , Curtain Wall Vacuum Hoist Lifting Systems , 300kg glass vacuum lifts hoists

Electric Curtain Wall Glass Spreader Vacuum Spreader Sucker 360 Degree Rotating and Flipping Spreader Vacuum Suction Hoist

Product Description

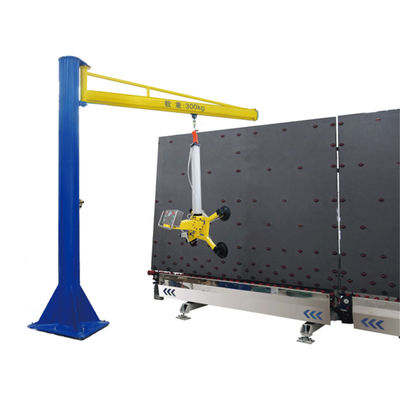

LJXJ300 Glass Loading and Unloading Lifter Cantilever Crane

The pneumatic glass handing manipulator loading and unloading lifter is operated with the aid of the use of compressed air. The gadget does no longer uses electrical energy and is secure and reliable, effortless to operate. It is a necessary glass coping with device for a present-day glass processing industry. The air flowing thru the vacuum generator reasons Vacuum Pressure to suck the glass. A cylinder stroke is acted with the aid of receiving the command sign from the compressed air in an inlet pipe. The gadget is usually used for glass coping with work in glass manufacturing facility processing lines, such as grinding, cleaning, tempered, laminated, insulated, etc.

Advantages & Features

Benefits & Advantages

●Mechanical part:

(1) The whole size of the major beam of the suction hoist is designed to be 2000mm, and the top phase of the center phase is welded and sealed with a plate, and the center phase is used as a vacuum accumulator. The airtightness takes a look at is carried out after welding to make certain no leakage. When the tools are abruptly powered off, it is nonetheless assured to be capable to reliably adsorb the plates for at least 20 minutes, and will no longer purpose protection accidents such as gear injury (the European CE general is to hold 10 minutes)

(2) This gear is outfitted with 6 suction cups with a diameter of 360mm for extraordinary sizes of glass. The function of every suction cup on the beam is adjustable to facilitate the adsorption of a glass of distinctive sizes.

●Electrical part:

(1) A vacuum stress change and a buzzer alarm unit are hooked up on the vacuum hoist. When the vacuum device stress does now not attain the set pressure, or when an electrical failure occurs, the alarm unit will manipulate the crimson warning mild to light up and the buzzer to sound. , Prompt the operator to deal with it in time.

●Vacuum part:

(1) The suction hoist adopts a German oil-free rotary vane vacuum pump, with a pumping capability of 8m3/h, a giant vacuum diploma of over 85%, energy-saving, compact and lightweight, no maintenance, etc.;

(2) The entire set of tools is outfitted with 6 vacuum suction cups, multi-point adsorption to make certain that the plate can keep an excessive stage throughout the coping with procedure except tilting;

(3) The suction cup fabric is nitrile rubber, with a diameter of 360mm, oil (benzene), durable, acid and alkali resistance, and can efficiently adsorb with FRP to produce a real single suction cup level. Theoretical giant suction pressure = positive location (physical product * coefficient) * calculated stress (0.6bar); (0.18*0.18*3.14)*0.6*10000=610.416, which is about 610.4Kg. According to the 4 instances security factor, the true allowable suction energy of the suction cup is 610.4/4=152.6Kg. The complete suction energy of 6 suction cups is 600kg. Note: The vacuum suction pressure cited in the above desk is calculated underneath 60% vacuum degree. Under regular working conditions, the device vacuum diploma can attain extra than 85%;

(4) The vacuum strain sensor is made of Japanese Panasonic brand, and the alarm stress degree is set to 60% vacuum;

(5) Each suction cup is geared up with a guide ball valve to manipulate the opening and closing, which ensures that the equal gear can be utilized to a number specs of plates;

(6) The higher and lower components of the sucker rod are geared up with a spring. When the plate is no longer flat, the spring acts as a buffer to make the sucker evenly stressed, so as to make sure the security and reliability of the suction cup.

● Overall:

(1) According to the European Union DIN EN 13155 vacuum machine diagram for the out of doors constructing curtain wall set up the site.

(2) Horizontal handling, electric-powered flipping, and vertical handling.

(3) Flexible design, can be utilized to the managing of exclusive sizes of ERP.

Application

- Insulating Glass Production line, - Installing Glass Curtain Wall System,
- Loading and Unloading glass sheet on glass slicing table,
- Instaling automobile windscreen.
- Depending on the worksite, the pneumatic suction hoist can raise the glass to any function you want with the assist of distinctive suspension methods.

The Wall-mounted Cantilever Crane

The wall-mounted cantilever crane is used to transport the glass and does no longer occupies the flooring area.

The cantilever crane can be at once set up on the wall, on the column of the manufacturing unit building, or on the equipment and equipment.

The fixing technique is very simple, and the rotating perspective can attain one hundred eighty degrees.

The Column Cantilever Crane

The column cantilever crane is used to transport the glass, which can be set up in any work site. It solely occupies the basis location of the column installation, has a small footprint, and can use all viable space. The most rotatable attitude can attain 270 degrees.

Main Technical Parameter

Item.	Spec.
Safety-absorption	200KG/400kg/600kg/800kg
Performance	Rotation 0-270 degree and lifting 600-1200mm
Quantity and size of sucker	2/4/6/8/12
Working gas source	5-8 Pa
Voltage	DC12V (Built-in 2 batteries for long battery life)
Battery life	It can be used for 3 to 5 days after charging once.(In addition, it can also be connected to the power supply.)
Single suction cup loading	The actual test weighs up to 150kg or more
Length dimension	Control cabinet: 0.3m; Suckers: Optional 1-5m
Width dimension	Suckers: Optional 1-1.5m
Outer size	L1120mmW660mmH620mm

The Installation Schematic

The Size Schematic Diagram of Vacuum Suction Cup Glass Lifter

The Size Schematic Diagram of Column Cantilever Crane Glass Lifter
