Product Details:
|
| Name: | Automatic Warm Spacer Bending Machine | Aluminum Spacer Width: | 5.5-27mm |
|---|---|---|---|
| Dimensional Error: | ±0.5mm | Processing Speed: | ≤26s |
| Air Supply: | ≥0.65MPa | Total Power: | AC220/380V 50Hz 2.5KW |
| High Light: | Auto Aluminum Spacer Bending Machine,27mm Aluminum Spacer Bending Machine,5.5mm Spacer Shape Bending Machine |
||
Auto aluminum spacer bending machine bending aluminium bar machine aluminum spacer shape bending machine
Main feature of glass bending machine
• Germany Siemens PLC control system, touch screen interface
• Japan FUJI CNC servo control system
• Four spacer size storage units
• Using servo system to control feeding mechanism
• Automatically cut and feed aluminum spacers
• Auxiliary function of adjustment for bending large aluminum frame
• Aluminum spacers are available in different sizes and sizes
• Bend shaped spacer frames continuously
• Separated guard board outside of bender
• Automatically avoid the connection while bending and cutting
• Pause and Reset device for handling equipment failures
• Can bend aluminum spacer, Technoform, Alupro, Thermix, warm spacer (Swisspacer)
• USB input function, read the excel format file directly etc (Optional)
• Stainless steel (Optional)
• Automatic drill gas filling hole (Optional)
• Connect to ERP system (Optional)
• Spacer printing code function (Optional)
• Printing label sticker function (Optional)
Technical data of industrial bending machine
| Max. bending size | 2000mm*2000mm (2500mm*2500mm) |
| Min. bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Electrical parameters of servo control system
| NAME | BRAND | NAME | BRAND |
| PLC | GERMAN SIEMENS | Triplet | Taiwan AIRTAC |
| Low voltage electrical apparatus | GERMAN SIEMENS | Cylinder | Taiwan AIRTAC |
| Servo motor | JAPAN FUJI | Solenoid valve | Taiwan AIRTAC |
| Servo driver | JAPAN FUJI | Switch power | Taiwan TEND |
| Relay | JAPAN OMRON | TOUCH SCREEN | Taiwan WEINVIEW |
| Sensor | KOREA AUTONICS | GUIDE | Taiwan TBI |

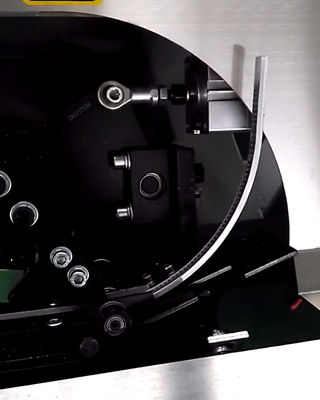

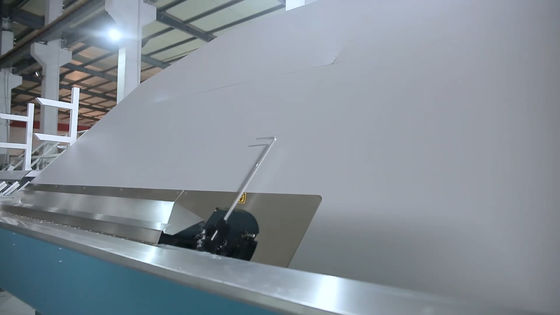

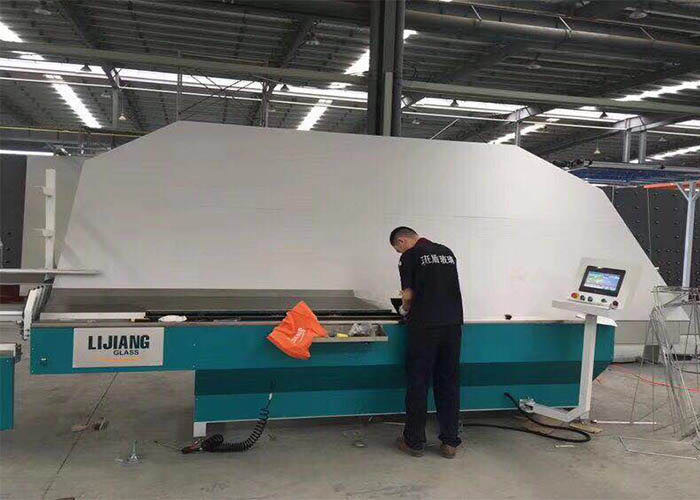

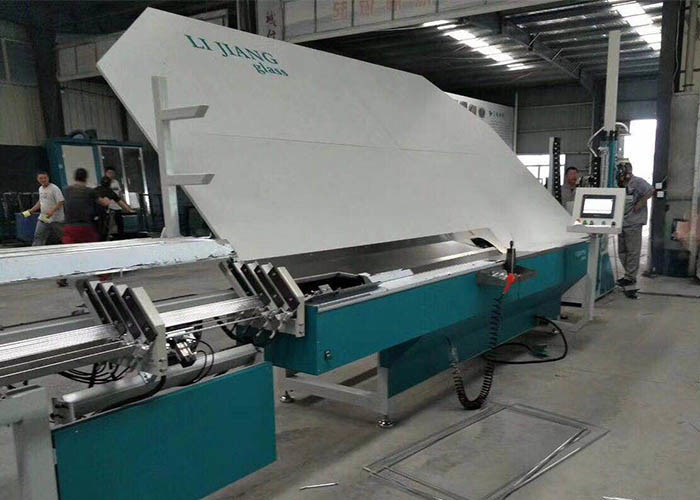

Equipment details manual bending machine
FAQ of aluminium spacer bar
Q: What is the system of Kation’s after sale service?
A: Kation has its own special system for the service, we make a “tree of knowledge”for guiding customer
to find the usual problem and the answer when customers meet.
Q: What is the details of the after sale service?
A: Step1: Notice before installation
Step2 : Confirm before installation
Step3: On-site installation
Step4: On-site debugging
Step5: On-site training
Step6: Client sign
Step7: On-line service
Step8: Technical service
More details please search www.lijiang-glass.com
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
