Product Details:
|
| Certification: | CE | Production Name: | Automatic Aluminum Alu-spacer Bending Machine |
|---|---|---|---|
| Max Spacer Size: | 1800mm*2000mm（in Once）/2500*4000(in Twice) | Min.bending Machine: | 150*300mm |
| Aluminum Spacer Width: | 5.5-26.5mm | Spacer Types: | Aluminum Space/warm Edge Spacer |
| Servo Motor: | Servo Motor | Machine Type: | Beading Machine, |
| Usage: | Aluminum Spacer Bar Bending, Bend Aluminum Spacer Bar Into Required Shape | Automation: | Automatic |
| High Light: | Aluminum Spacer Glass Bending Equipment,Insulating Glass Bending Equipment,150*300mm Spacer Bending Machine |
||
good priceAluminum Spacer Glass Bending Equipment Glass Processing Spacer Bending Machine for insulating glass processin

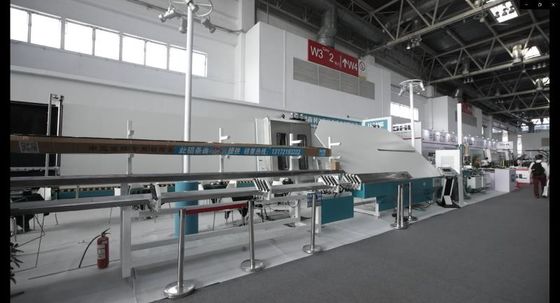

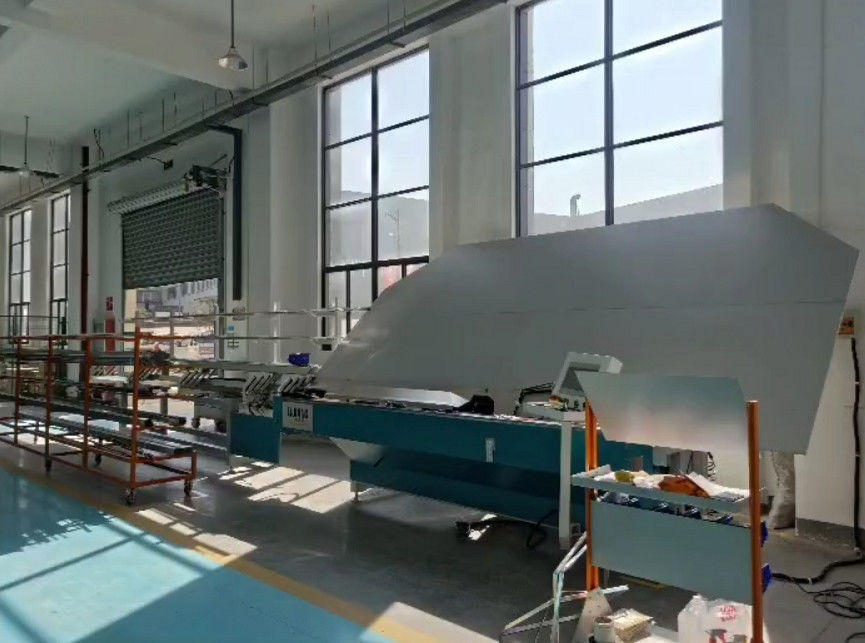

Production Overview of aluminum alu-spacer bending machine
Spacer Auto Bender can make various convex polygonal aluminum frames with aluminum strips at once, which enhances the strength of the aluminum frame and improves the sealing effect of double glazing. Float glass filled with an argon gas desiccator with an aluminum frame. Primary seal (butyl), secondary seal (polysulfide or structure) between double glazing and aluminum frame. Insulated glazing effectively blocks radiation when covered with a low emissivity film.
Main feature of Automatic Aluminum Spacer Bending Machine
● The automatic spacer bender uses a servo-controlled supply system, and the size of the spacer frame is
0.1 mm / m accuracy
● CNC bending angle control system that can be adjusted with an accuracy of 0.1 °
● No hardware prompts, sleep prompts, crash prompts, work prompts, unjustified data
Waste treatment and high speed support Arc type and special aluminum frame. Folding aluminum frame
● Set up 4 groups of spacer storage units
● Automatically adjusts the folding speed according to the size of the aluminum frame
Prevents deformation of large frames and ensures high speed and continuity of small frames
● You can freely choose multiple sizes of aluminum bars
● Automatic continuous connection of spacers, cutting spacers, and spacer bar seal advance
● USB function that can read Excel directly
● Connect to ERP (optional)
Technical parameter of Aluminum spacer bending machine
|
Max. bending size
|
1800mm*2000mm(in once)/2500*4000(in twice) |
|
Min. bending size
|
150mm*300mm |
|
Aluminum spacer width
|
5.5-26..5mm |
| Spacers racks | 4 Racks |
|
Spacer size error
|
±0.5mm |
|
Angle error
|
±1° |
|
Processing speed
|
< 25s (1000mm*1000mm) |
|
Air supply
|
≥0.65MPa |
| Voltage | 380V50Hz 3P |
| Total power | 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |

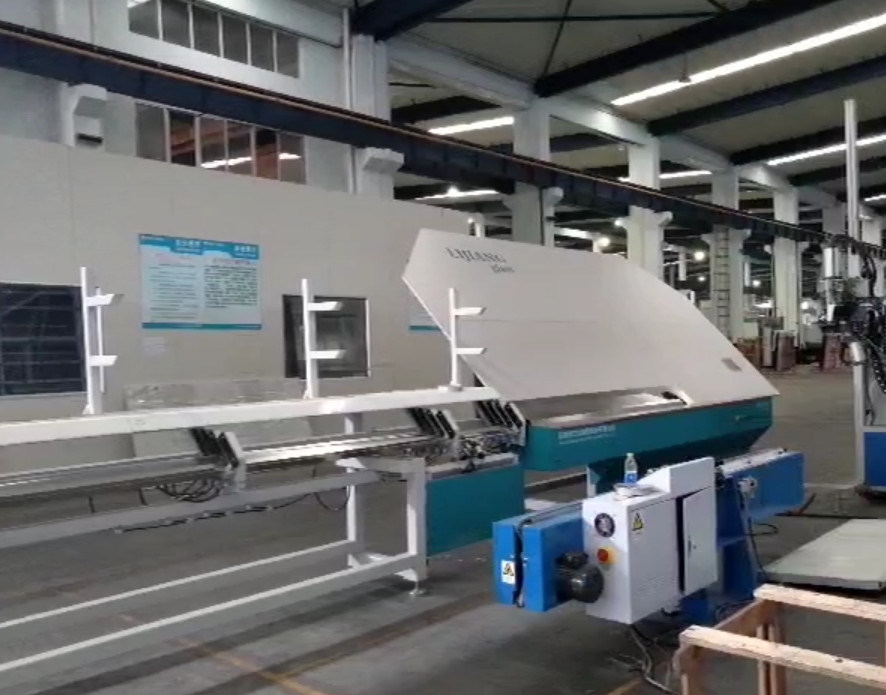

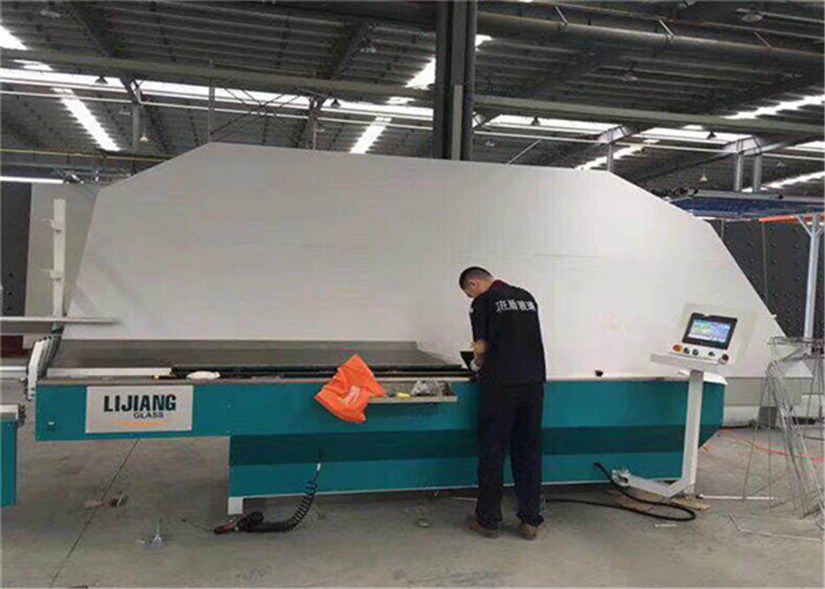

Detail of Automatic spacer bending machine
1.German siemens plc control system,touch screen interface.Siemens 1200PLC control system with fast working speed.
2.Automaticlly cut and feed Aluminum spacers
3.Automatic Aluminum spacer bending machine have Four or Twelve different spacer size storage units can choose
4. Aluminum spacers are available in different specifications and in sizes of 5.5-26.5mm
5.Heavy duty connectors ,convenience and safety for installation and debugging
6.Support continuous bending , it automatically avoid spacer -connection while bending and cutting
7.Spare parts of all machine have ID codes.
8.The special machine hand device is used to bend big spacer frame
9.Automatic spacer bending machine can bend aluminum spacer /technoform /Alupro /swisspacer/ stainless steel /thermix (optional)
10.Precise bending effect, corner error less than 0.1mm.
11.USB input function ,it can read the excel data directly
12.Printing paper label sticker function (Optional),could remove it easily.
Related Product
1.Two pump Sealant-spreading Machine LJST02A
Main feature
• Imported motor system to improve equipment efficiency
• Imported sealant gun,stainless steel mixer
• High pressure protect device
• Anti-back flow control structure
• Mixed rate detector can control the rate of two kinds of glue
Technical data
| Working air pressure | 0.3-0.6MPa |
| Sealant spreading pressure | 15-20MPa |
| Sealant volume | 4L/min |
| Diameter of A/B sealant | 570mm/280mm |
| Sealant spreading air pressure ratio | 50:1 |
| Mixed rate | 6:1-14:1 |
| Air supply | Flow 0.8m3/min |
| Air pressure | ≥0.8MPa |
| Overall dimension | 1100*950*1630mm |
2.Butyl Extruder Machine LJTB 01
Main feature
• PLC control system, touch screen interface
• Automatically identify the width of the aluminum bar and automatically adjust the adhesive nose
• An important part of the flood system that uses components imported from Germany to ensure that the plastic is evenly filled
• High-speed preheating, improved work efficiency
• With preheating function
• Inflatable exhaust function improves sealing quality and saves plastic time
• High speed coating speed, up to 47m / min
• Saves the amount of glue
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 5.5-26.5mm |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
3.Butyl Extruder Machine LJTB 03
Main feature
• PLC control system, touch screen interface
• Frequency control system
• Arched frame cladding structure
• Imported pneumatic and hydraulic supercharging system
• Automatic centering and clamp structure
• Load up to 14kg, save time glue supply
• Adopt 5 steps to manage transportation
• Preheating function, adhesive cylinder limiting function, alarm system
• Adhesion / adhesion mechanism adopts the latest design
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 5.5-26.5mm |
| Speed | 0-40m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW,50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| weight | 650kg |
4.Smart Vertical Edge Deleting Machine LJCM2545
Main feature
• Two-way glass access
• Automatically measure size
• Automatically distinguish low emissivity surfaces
• The head can rotate 360 °
• Safe and fully automated device
• PLC control system, touch screen interface
• 6 servo control systems
• Adjustable edge suppression
• Intelligent control system, can recognize batch processing
Technical data
| Max. glass processing size | 2500*4500mm |
| Min. glass processing size | 400*280mm |
| Glass thickness | 3-15mm |
| Diameter of grinding wheel | 200mm |
| Conveyor height | 500mm |
| Edge deleting width | 10-50mm |
| Transmission speed | 1. 29m/min |
| Edge deleting speed | 2-29m/min |
| Abrasive wheel width | 10/12/15mm |
| Glass thickness | 3 - 15mm |
| Grinding wheel speed | 0~3000r/min |
| Total air consumption | 100L/ min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50Hz 3.35KW |
| Dimension | Dimensions :9700×2500×3400mm |
| Total weight | 3700KG |
Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful Spring
city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole. As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.
The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. So that our company has became an vital domestic and foreign glass processing equipment supplier. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment of the company, our products have been exported to Europe, South America, the Middle East, Southeast Asia, nearly 30 countries and regions. At the same time, our company worked with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research. So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the new butyl extruder machine, and the new fully automatic butyl extruder machine, its technology and quality have reached the leading level in China.
With the rapid development of insulating glass industry, Lijiang is looking forward to working with you for win-win situation and jointly creating a new world of China!
