Product Details:
|
| Production Name: | Automatic Aluminum Spacer Bars Cutting And Bending Machine | Max Bending Size: | 2500mm*4000mm |
|---|---|---|---|
| Min Bending Size: | 280mm*400mm | Aluminum Spacer Width: | 5.5-26.5mm |
| Conveying Speed: | 1250mm/s | Warranty: | 1 Year |
| High Light: | Spacer Bars Cutting And Bending Machine,Glass Processing Cutting And Bending Machine,Glass Processing bar bending machine |
||

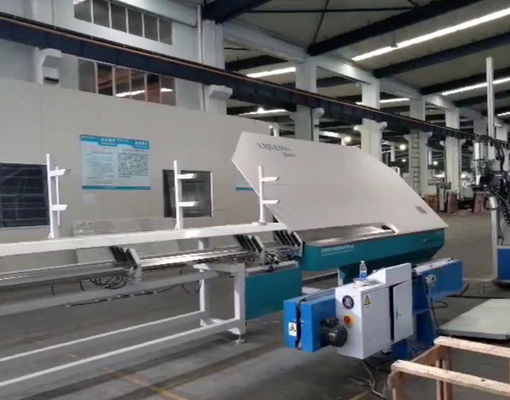

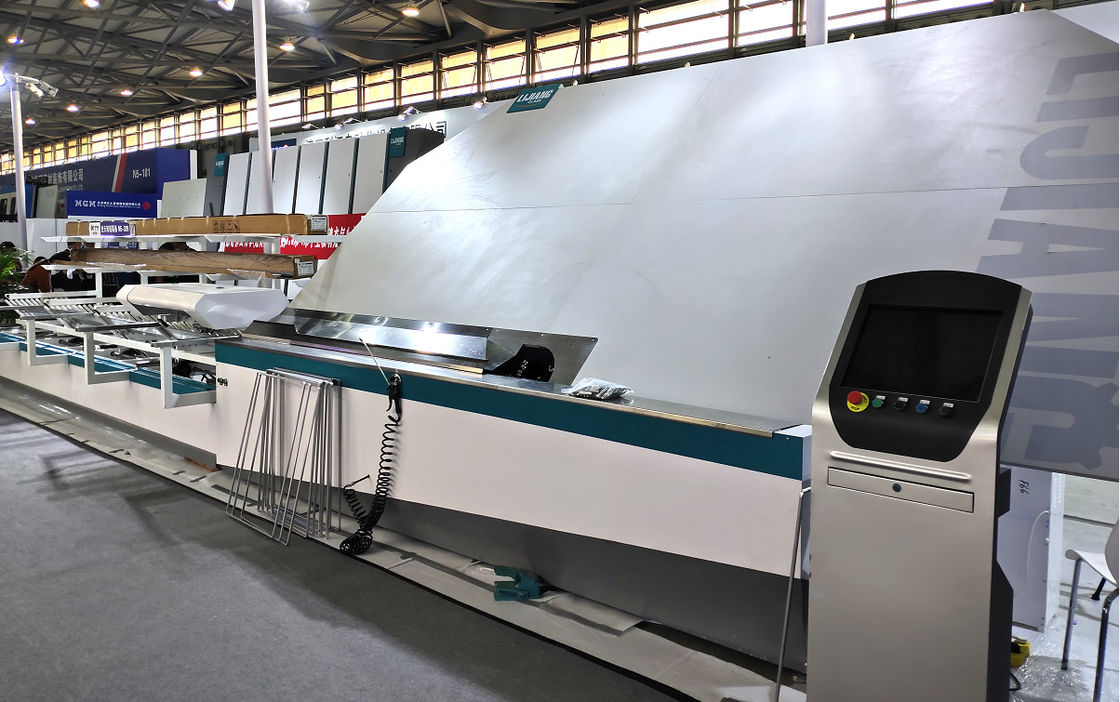

Automatic Aluminum Spacer Bars Cutting And Bending Machine for glass processing
Main features of the automatic spacer bending machine :
• Siemens 1200 PLC control system with fast working speed
• 4 groups of storages (2 or 12 groups of storages can be optional)
• Automatically cut and feed aluminum spacers
• Automatically avoid the pins while bending and cutting
• Bend spacer frames continuously
• Aluminum spacers are available in sizes of 6A-27A
• Different bending tools for different sizes of spacers
• Pause and Reset device for handling equipment failures
• Bend aluminum spacer, smooth stainless steel, warm spacer
• Connect to ERP system (Optional)
• USB input function, read the excel format file directly
• Automatically drill holes for filling argon gas (Optional)
• Spacer printing code function (Optional)
• Printing label sticker function (Optional)
• Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A). Different sizes of aluminum bars require different size tools(Optional)
Technical data of spacer bending machine :
| Max. bending size | 2000mm*2000mm |
| Min. bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | 17s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Electrical parameters of spacer bender machine :
| NAME | ORIGIN | BRAND |
| PLC | Germany | SIEMENS |
| Servo driver | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| Low voltage component | Germany | SIEMENS |
| Triplet | Taiwan | AIRTAC |
| Cylinder | Taiwan | AIRTAC |
| Relay | Japan | OMRON |
| Sensor | KOREA | AUTONICS |
| Touch screen | Taiwan | WEINVIEW |
| Guide | Taiwan | TBI |
| Solenoid valve | Taiwan | AIRTAC |
| Switch power | Taiwan | TEND |
Vertical Insulating Glass Production Sealing Robot With Two Sealing System
Vertical Insulating Glass Sealing Robot LJTJ2540
Main Features:
• Japan Yaskawa servo system control, full automatic and high-efficiency sealing machine
• 4 sections, can storage glass
• Adopt timing belt, smooth transfer and accurate position
• Automatically repair glass corners with scraper and roller
• Automatically measure glass size, glue depth (30mm)
• Every auto-function is with manual operation
• Can coat double glass
• Shape glass with optional edges, step glass, triple glass (Optional)
• One set of booster pump controls two groups of sealants (Optional)
• Can use silicone, polysulfide and silicone structural sealants
• Glue head is in the front of the machine, which is easy for coating step glass
• Can be connected with insulating glass processing line
• With code scanning function (Optional)
Technical data
| Max. glass size | 2500*4000mm |
| Min. glass size | 400*300mm |
| Glass thickness | 12-50mm |
| Working speed | 5-40m/min |
| Air pressure | ≥0.6MPa |
| Squeeze pressure | 32MPa |
| Voltage power | 380V 15kw |
| Overall dimension | 11000*2000*3500mm |
Electrical parameters
| NAME | ORIGIN | BRAND |
| Servo motor | Japan | YASKAWA |
| Servo driver | Japan | YASKAWA |
| CPU | Japan | YASKAWA |
| Low voltage component | Germany | SIEMENS |
| Guideway | Taiwan | HIWIN |
| Switching power supply | Taiwan | MW |
| Sensor switch | Korea | AUTONICS |
| Pneumatic component | Japan | SMC |
| Touch screen | China | GAOSHAN |
| Servo motor | Japan | YASKAWA |
| Servo driver | Japan | YASKAWA |
Sealant-spreading Machine LJST02A
Main feature
• Imported motor system to improve equipment efficiency
• Sealant gun, stainless steel mixer
• High pressure protect device
• Anti-back flow control structure
• Mixed rate detector can control the rate of two kinds of glue
Technical data
| Working air pressure | 0.3-0.6MPa |
| Sealant spreading pressure | 15-20MPa |
| Sealant volume | 4L/min |
| Diameter of A/B sealant | 570mm/280mm |
| Sealant spreading air pressure ratio | 50:1 |
| Mixed rate | 6:1-14:1 |
| Air supply | Flow 0.8m3/min |
| Air pressure | ≥0.8MPa |
| Overall dimension | 1100*950*1630mm |
Sealant-spreading machine LJST03
Main feature
• Use cylinder to provide power
• China sealant gun, stainless steel mixer
• High pressure protect device
• Anti-back flow control structure
• Mixed rate detector can control the rate of two kinds of glue
Technical data
| Working air pressure | 0.3-0.6MPa |
| Sealant spreading pressure | 15-20MPa |
| Sealant volume | 4L/min |
| Diameter of A/B sealant | 570mm/280mm |
| Sealant spreading air pressure ratio | 50:1 |
| Mixed rate | 6:1-14:1 |
| Air supply | Flow 0.8m3/min |
| Air pressure | ≥0.8MPa |
| Overall dimension | 1100*950*1630mm |
