Vertical Insulating Glass Edge Deletion Machine Low-E glass

Large Image : Vertical Insulating Glass Edge Deletion Machine Low-E glass

Product Details:

Place of Origin:	Jinan City, Shandong Province, China
Brand Name:	Jinan Lijiang Glass Machinery
Certification:	CE & ISO9000

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiated Price
Packaging Details:	Wooden Cases Package
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	15 sets per month

Contact Now

Vertical Insulating Glass Edge Deletion Machine Low-E glass

Description

Name:	Vertical Glass Edge Deleting Machine	Dimension:	970025003400mm
Edge Deleting Width:	10-150mm	Glass Thickness:	3-15mm
Max. Glass Processing:	2500*4500mm	Min. Glass Processing:	400*280mm
Edge Deleting Speed:	2-29m/min	Total Power:	3P 380V 50Hz 3.35KW
Air Pressure:	≥0.8MPa	Color:	Requirement
Highlight:	Insulating Glass Edge Deletion Machine , Vertical Glass Edge Deletion Machine , LOW E Glass Edge Deletion Machine

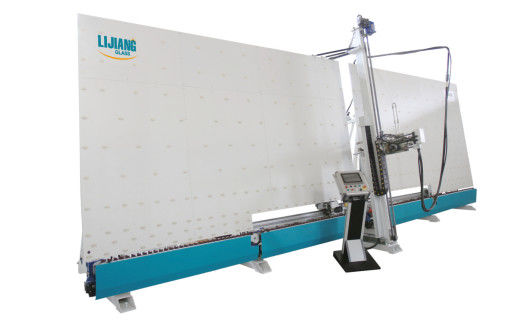

Automatic Vertical Insulating Glass Edge Deleting Machine

Product Description

Automatic Vertical Edge Deleting Machine LJCM2545

LJCM2545 Vertical part deleting desktop is specialised for Low-E glass movie remover. It adopts a vertical shape and manufacturing line for handy connection. Glass aspect deleting computer is easy and efficient. It adopts an imported servo manage device for transmission, correct positioning, and steady operation. Low-E glass movie remover is specialized for LOW-E glass movie remover. It adopts a vertical shape and manufacturing line for effortless connection.

Technical parameter

Item,	Spec.
Max. glass processing size	2500*4500mm
Min. glass processing size	400*280mm
Glass thickness	3-15mm
Diameter of grinding wheel	200mm
Conveyor height	500mm
Edge deleting width	10-50mm
Transmission speed	1. 29m/min
Edge deleting speed	2-29m/min
Abrasive wheel width	10/12/15mm
Glass thickness	3 - 15mm
Grinding wheel speed	0~3000r/min
Total air consumption	100L/ min
Air pressure	≥0.8MPa
Total power	3P 380V 50Hz 3.35KW
Dimension	Dimensions :9700×2500×3400mm
Total weight	3700KG

NAME	ORIGIN	BRAND
Servo motor	Taiwan	TAIDA
PLC	Taiwan	TAIDA
Pneumatic component	Taiwan	AAIRTAC
Low pressure electricity	Germany	SIEMENS
Circuit breaker	Germany	SIEMENS
Sensor switch	Korea	AUTONICS
Approach switch	Korea	AUTONICS
Limit switch	Taiwan	TEND
Connector	Germany	SIEMENS
Frequency converter	France	SCHNEIDER
Main Button	France	SCHNEIDER
Intermediate relay	Japan	OMRON

Advantages & Features

Benefits & Advantages

1) The automated computing device is outfitted with a full servo carry device and Germany Simons manage the system.

2) It is successful in eliminating the scalene movie with one operation. The deleting width for the overlapped place is additionally adjustable

3) Manual operations are on hand for every function, beneficial in debugging and maintenance.

4) It is geared up with a dirt suction gadget to mitigate dirt pollution.

5) The enter phase and output section can be run asynchronously, enhancing productivity.

6) The stripping pace is adjustable (according to distinctive movie kinds and anticipated stripping effect).

7) Six servo motor manage structures and an adjustable linear dimension are provided to warranty a greater accuracy for arc/shapes.

8) The vertical Low-E facet deletion laptop can manage specifically fashioned glass panels, together with the glass panels with holes for point-supported glass curtain wall system.

9) The stripping width tolerance is smaller than 1mm, the stripping effectivity is >90% (for reference).

The Smooth Glue Surface

After making use of glue, It will make sure that the corners of the glass are full, besides bubbles and different impurities, and the glue floor is so smooth.

The High-precision Servo Control System

It adopts a Japanese Yaskawa servo manage devices with a clear wiring sketch to make certain the secure ordinary performance of the equipment.

The Glass Coating

Automatically measure glass size, glue depth, and glue velocity via the linear adjustment to make certain the balance of insulating glass coating quality.

Glue Pump A and Glue Pump B

Equipped with a single A issue and a single B component, blended and glued. When making use of glue, glue pump A and glue pump B are routinely combined to comprehend computerized proportioning.
