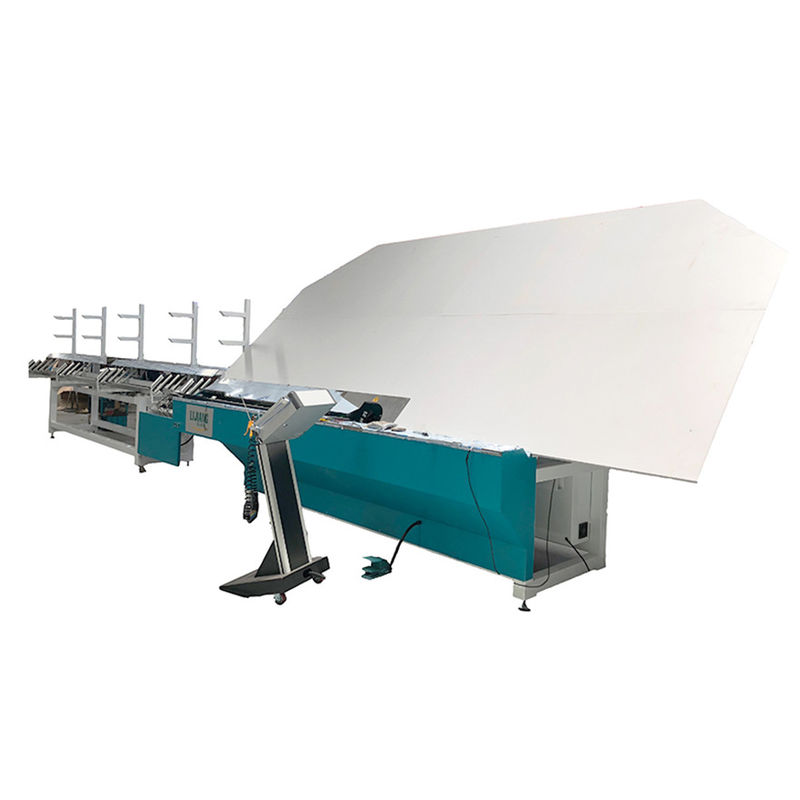

Automatic Spacer Bending Machine For Insulating Glass Aluminum Frame

Large Image : Automatic Spacer Bending Machine For Insulating Glass Aluminum Frame

Product Details:

Place of Origin:	Jinan City, Shandong Province, China
Brand Name:	Jinan Lijiang Glass Machinery
Certification:	CE & ISO9000

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiated Price
Packaging Details:	Wooden Cases Package
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	15 sets per month

Contact Now

Automatic Spacer Bending Machine For Insulating Glass Aluminum Frame

Description

Name:	Double Glazing Silicone Sealant Extruder	Max Glass Size:	Jumbo Size
Advanced Function:	Could Coating 8 Kinds Of Shaped Glass	Dimension:	10500(L)2200(W)2100(H)mm
Raw Material:	Steel Bar	Aluminum Bar Specification:	5.5-20mm
Air Pressure:	0.5-0.8Mpa	Color:	Customers' Request
Highlight:	Automatic Spacer Bending Machine , Insulating Glass Spacer Bending Machine , Insulating Glass aluminum bending machine

Automatic spacer bar bending machine

Product Description

LJZW2020 Automatic Aluminum Spacer Bar Bending Machine

Jinan LIJIANG Glass Automatic spacer bending machine is a special equipment for making aluminum frames of insulating glass, which replaces the traditional fabrication techniques. An automatic spacer bending machine can make a variety of convex polygonal aluminum frames by one aluminum strip at one time, thus strengthening the strength of the aluminum frame, making the sealing effect of the insulating glass better.

Advantages & Features

Main Feature

• Germany Siemens PLC control system, touch screen interface • Japan FUJI CNC servo control system • Four spacer size storage units • Using servo system to control feeding mechanism • Automatically cut and feed aluminum spacers • Auxiliary function of adjustment for bending large aluminum frame • Aluminum spacers are available in different sizes and sizes • Bend shaped spacer frames continuously • Separated guard board outside of bender • Automatically avoid the connection while bending and cutting • Pause and Reset device for handling equipment failures • Can bend aluminum spacer, Technoform, Alupro, Thermix, warm spacer (Swisspacer) • USB input function, read the excel format file directly etc (Optional) • Stainless steel (Optional) • Automatic drill gas filling hole (Optional) • Connect to ERP system (Optional) • Spacer printing code function (Optional) • Printing label sticker function (Optional)

The Unique ID Codes

All equipment spare parts have ID codes, which are matched with the ERP system of Lijiang Spare Parts Warehouse. When there is an after-sales problem, the defective spare parts can be found directly and replaced quickly.

The Printing Labels and Stickers

The spacer bending machine is equipped with the function of printing labels and stickers (optional), which can be easily removed, which is convenient for mass production of bending aluminum strips.

The Accurate Bending Effect

The corner error of the Aluminum Spacer Bar Bending Machine is less than 0.1mm, ensuring that it meets the practical application requirements of the hollow glass aluminum strip interval.

The Safety Components

The heavy-duty connector part of the aluminum spacer bar bending machine, the electrical wiring is clearly and orderly marked, and the installation and debugging are convenient and safe.

Main Technical Parameter

Item.			Spec.
Max. bending size			2000mm2000mm (2500mm2500mm)
Min. bending size			250mm*200mm
Aluminum spacer width			5.5-27mm
Dimensional error			±0.5mm
Angle error			±1º
Processing speed			≤26s
Air supply			≥0.65MPa
Total power			AC220/380V 50Hz 2.5KW
Dimension			10500mm2200mm2600mm

Name	Brand	Name	Brand
PLC	GERMAN SIEMENS	Triplet	Taiwan AIRTAC
Low voltage electrical apparatus	GERMAN SIEMENS	Cylinder	Taiwan AIRTAC
Servo motor	JAPAN FUJI	Solenoid valve	Taiwan AIRTAC
Servo driver	JAPAN FUJI	Switch power	Taiwan TEND
Relay	JAPAN OMRON	Touth Screen	Taiwan WEINVIEW
Sensor	KOREA AUTONICS	Guide	Taiwan TBI
