Product Details:
|
| Product Name: | Automatic Vertical Insulating Glass Sealing Equipment | Dimension(L*W*H): | 8700*2000*3500mm |
|---|---|---|---|
| Max Glass Size: | 2500*4000mm | Min Glass Size: | 280*450mm |
| Glass Thickness: | 12 - 50mm | Working Speed: | 5~40 M/min |
| Voltage Power: | 380V 12KW | Warranty: | 1 Year |
| High Light: | Sealant Glue Spreading Machine,Curtain Wall Glue Spreading Machine,Building Glass Glue Spreading Machine |
||

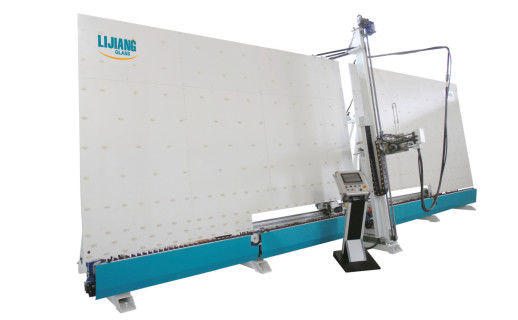

LJTJ2535/LJTJ2025 is the latest automatic vertical insulating glass sealing robot. It is used to coat double glazed glass through mixing the A component and B component together according to a certain percentage. Applied to double/triple/shaped and stepped glasses (Optional) with stable performance and easy operation.
1, Mechanical head is placed in front
Achieve the real connection with IG line when doing stepped glass.
2, Storage Function
It can store three pieces of insulating glasses on the three belts ( less than 1.8m.), it need 2 more sets servo motors, control systems.
3, Eight Servos
The robot uses eight YASKAWA servos, four of them control transmission parts, in the another four servos, they control sucker, lifting, driving and Forward & backward movement and rotating.
Single Glue System
