Automatic Vertical Insulating Glass Sealing Robot Could Spreading 8 Kinds Of Shape

8 Kind Insulating Glass Sealing Robot

2500*4500mm Insulating Glass Sealing Robot

5m/min Insulating Glass Sealing Robot

Place of Origin:

Jinan City, Shandong Province, China

Brand Name:

Jinan Lijiang Glass Machinery

Certification:

CE & ISO9000

Request A Quote

Product Details

Brand Name:

Jinan Lijiang Glass

Dimension(L*W*H):

8700*2000*3500mm

Max. Glass Size:

2500*4500mm

Min Glass Size:

300*300mm

Working Speed:

5-40m/min

Glass Thickness:

3-15mm

Weight:

3300Kgs

Color:

Customers' Request

Highlight:

8 Kind Insulating Glass Sealing Robot

2500*4500mm Insulating Glass Sealing Robot

5m/min Insulating Glass Sealing Robot

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiated Price

Packaging Details

Wooden Cases Package

Delivery Time

5-8 working days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

Glass Deep-processing

Vertical Insulating Glass Sealing Robot LJTJ2540

Get Best Price

Video

Automatic Insulated Glass Sealing Robot For Insulating Glass Processing 2500*4000mm

Get Best Price

Video

Automatic Vertical Double Glass Insulated Glass Sealing Robot Machine For Sealant Spreading Processing

Get Best Price

Video

Vertical Automatic Glass Sealing Robot For Insulating Glass IG Unit CE Certificate

Get Best Price

Contact Now

Product Description

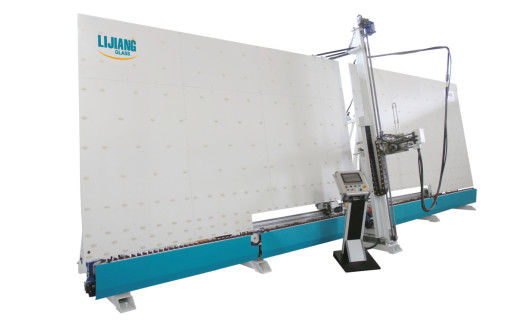

Automatic Vertical Insulating Glass Sealing Robot Could Spreading 8 Kinds of Shape Glass Processing Hot Sale on March Expo

Product Description

Vertical Double Glass Edge Deleting Machine LJCM2545

Smart vertical edge deleting machine LJDM2545 safe and full automatic device,it is used to delete the edge film of the Low-e glass. Vertical Edge Deleting Machine LJCM2545can be connected to the insulating glass production line and it is the necessary equipment in hollow glass processing.

Advantages & Features

Benefits & Advantages

•Adopts Japan Yaskawa servo system control, full automatic and high-efficiency sealing machine •4 sections, can storage glass •Adopt timing belt, smooth transfer and accurate position •Automatically repair glass corners with scraper and roller •Automatically measure glass size, glue depth (30mm) •Every auto-function is with manual operation •Can coat double glass •Shape glass with optional edges, step glass, triple glass (Optional) •One set of booster pump controls two groups of sealants (Optional) •Can use silicone, polysulfide and silicone structural sealants •Glue head is in the front of the machine, which is easy for coating step glass •Can be connected with insulating glass processing line •With code scanning function.(Optional)

The Smooth Glue Surface

After applying glue, It will ensure that the corners of the glass are full, without bubbles and other impurities, and the glue surface is so smooth.

The High-precision Servo Control System

It adopts Japanese Yaskawa servo control system with clear wiring layout to ensure stable overall performance of the equipment.

The Glass Coating

Automatically measure glass size, glue depth and glue speed through linear adjustment to ensure the stability of insulating glass coating quality.

Glue Pump A and Glue Pump B

Equipped with a single A component and a single B component, mixed and glued. When applying glue, glue pump A and glue pump B are automatically mixed to realize automatic proportioning.

Specification

Item.	Spec.
Max. glass processing size	2500*4500mm
Min. glass processing size	400*280mm
Glass thickness	3-15mm
Diameter of grinding wheel	200mm
Conveyor height	500mm
Edge deleting width	10-50mm
Transmission speed	1. 29m/min
Edge deleting speed	2-29m/min
Abrasive wheel width	10/12/15mm
Grinding wheel speed	0~3000r/min
Total air consumption	100L/ min
Air pressure	≥0.8MPa
Total power	3P 380V 50Hz 3.35Kw
Dimension	9700mm2500mm3400mm
Total weight	3700Kgs

Company Profile

The Brief Information

Founded in 2009, Kation-International Group specializes in R&D, production and sales of Insulating glass machinery and related auxiliary equipment for the glass deep processing industry and the door and window construction industry, which is the international group company including the Jinan LIJIANG Automatic Equipment Co,.Ltd. to producing the automatic insulating glass production line, and including the Jinan Kation International Group Co,.Ltd. to export the automatic insulating glass processing machine around the world. Has the professional processing basis of insulating glass machinery, aluminum-plastic windows & doors machinery and the related auxiliary materials, etc. In this way, we provide the most comprehensive glass processing solution and windows & doors solution for domestic and foreign customers well. Until 2019, we exported glass machines and materials to America, South America, Europe, the Middle East, India and so on,nearly 30 countries and regions. We have established a perfect international business relationship with 10 powerful agents and made an endeavor together to build a famous international brand to the world. Kation-Tech, with craftsmanship, profession and honesty, wins the future with you together!
