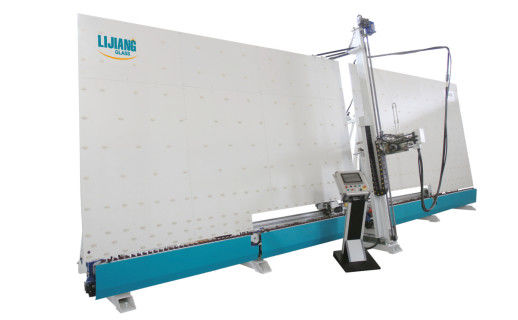

Thickness 12-56mm Insulating Glass Sealing Robot Silicone Spreading Machine

Thickness 12-56mm Insulating Glass Sealing Robot Silicone Spreading Machine
Thickness 12-56mm Insulating Glass Sealing Robot Silicone Spreading Machine
Thickness 12-56mm Insulating Glass Sealing Robot Silicone Spreading Machine Thickness 12-56mm Insulating Glass Sealing Robot Silicone Spreading Machine Thickness 12-56mm Insulating Glass Sealing Robot Silicone Spreading Machine Thickness 12-56mm Insulating Glass Sealing Robot Silicone Spreading Machine

Large Image :  Thickness 12-56mm Insulating Glass Sealing Robot Silicone Spreading Machine

Product Details:
Place of Origin: CHINA
Brand Name: LIJIANG
Certification: ce
Model Number: 2025
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: US$55,000 each
Packaging Details: Wooden box, container
Delivery Time: one month
Payment Terms: L/C, T/T
Supply Ability: Four per month

Thickness 12-56mm Insulating Glass Sealing Robot Silicone Spreading Machine

Description
Power: 12kw Weight: 1000
Warranty: 1 Year Key Selling Points: Long Service Life
Glass Thickness: 12-56mm Max.glass Size: 2500mm
High Light:

56mm Insulating Glass Sealing Robot

,

12mm Insulating Glass Sealing Robot

,

56mm Silicone Spreading Machine

Insulating glass sealing robot silicone spreading machine automatic insulating glass sealing robot

l Min & Max glass sizes can be optional

l Adopt 8 servo motors

l Adopt Japan ANCHUAN servo control system with stable performance

l Automatically measure glass size, glue depth and glue speed with linear adjustment

l Adopt timing belt to keep smooth convey with accurate position

l Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working

l The glass corners are full without air bubbles, smooth surface, no need to

l Full automatic and high-efficiency machine

l New scraper design, especially for making train IG with very even sides and corners, without any bubbles.

l Automatically repair glass corners with beautiful surface

l Smooth convey without scratch and pollution

l Single-function parts are equipped with manual functions, easy adjustment

l Shaped IG units (Optional)

l Stepped IG units with four sides (Optional)

l Double and Triple IG units

Insulating glass sealing robot silicone spreading machine automatic insulating glass sealing robot

Insulating glass sealing robot silicone spreading machine automatic insulating glass sealing robot





Max.glass size 2500mm
Min.glass size 170mm*400mm (2000mm machine)
Glass thickness 12-56mm
Working speed 5-40m/min
Air pressure 0.6-0.8MPa
Squeeze pressure <350kg/m³
Plane angle - 9°
Max glass weight 400kg
Voltage power 380V 12kw
Overall dimension 8700mm*2000mm*3500mm



Main electrical components

The main electrical components are adopted Siemens, SMC and so on famous spares to maintain more stable performance.

Insulating glass sealing robot silicone spreading machine automatic insulating glass sealing robot

Thickness 12-56mm Insulating Glass Sealing Robot Silicone Spreading Machine 3
JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD
Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful Spring city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole. As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.
The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts,establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importingadvanced technology and so on. So that our company has been a vital domestic and foreign glass processing equipment supplier.

Now,our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan LiHehua and other well-known enterprises. Since the establishment of the company, our products have been exported to Europe, SouthAmerica, the Middle East, Southeast Asia, nearly 30 countries and regions. At the same time, our company worked with thewell-known domestic research institutes, such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research. So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the new butyl extruder machine, and the new fully automatic butyl extruder machine, its technology and quality have reached the leading level in China.
With the rapid development of insulating glass industry, Lijiang is looking forward to working with you for win-win situation and jointly creating a new world of China!
