Product Details:
|
Name: | Vertical Insulating Glass Sealing Robot LJTJ2540 | Min. Glass Size: | 400*300mm |
---|---|---|---|
Glass Thickness: | 12-50mm | Working Speed: | 5-40m/min |
Air Pressure: | ≥0.6MPa | Squeeze Pressure: | 32MPa |
High Light: | 400*300mm Sealant Sealing Robot,Insulating Glass Sealant Sealing Robot,400*300mm Insulating Glass Sealing machine |

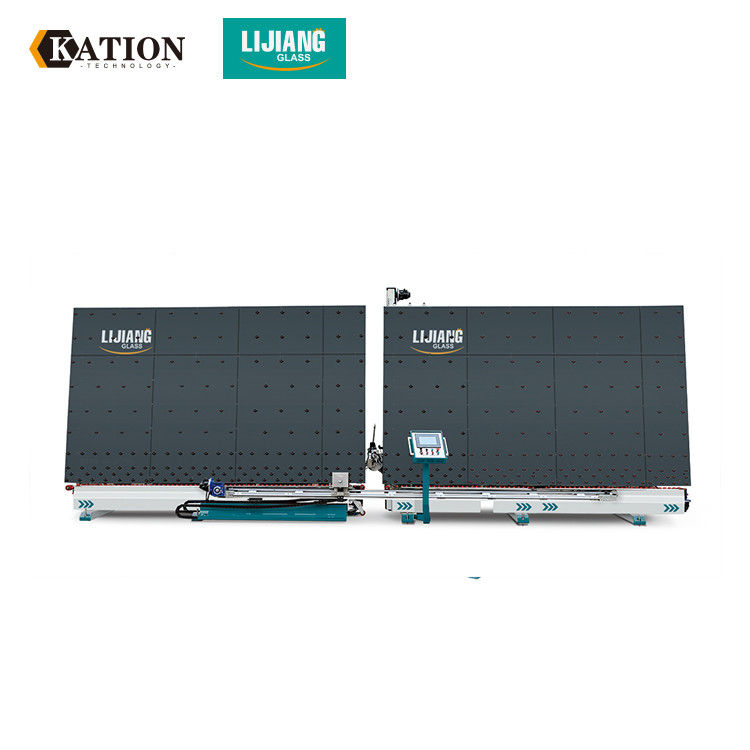

Vertical Insulating Glass Sealing Robot LJTJ2540
Main Features of automatic sealing robot equipment
• Japan Yaskawa servo system control, 8 axes, 7 sets of servo control system, full automatic
and high-efficiency sealing machine
• 4 sections, can storage glass
• Adopt timing belt, smooth transfer and accurate position
• Automatically repair glass corners with scraper and roller
Automatically measure glass size, glue depth (30mm)
• Every auto-function is with manual operation
• Can coat double glass
• Shape glass with optional edges, step glass, triple glass (Optional)
• One set of booster pump controls two groups of sealants (Optional)
• Can use silicone, polysulfide and silicone structural sealants

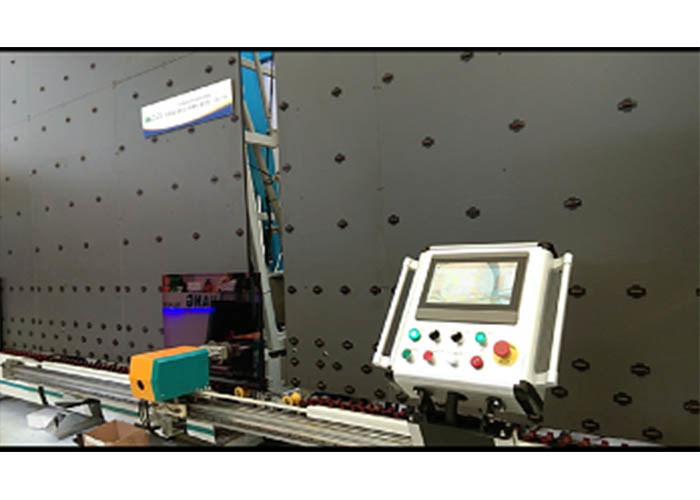

• Glue head is in the front of the machine, which is easy for coating step glass
• Can be connected with insulating glass processing line
• With code scanning function (Optional)
Technical data of automatic sealing robot glass processing machine
Max. glass size | 2500*4000mm |
Min. glass size | 400*300mm |
Glass thickness | 12-50mm |
Working speed | 5-40m/min |
Air pressure | ≥0.6MPa |
Squeeze pressure | 32MPa |
Voltage power | 380V 15kw |
Overall dimension | 11000*2000*3500mm |
Electrical parameters of double glazing automatic sealing robot equipment
NAME | ORIGIN | BRAND |
Servo motor | Japan | YASKAWA |
Servo driver | Japan | YASKAWA |
CPU | Japan | YASKAWA |
Low voltage component | Germany | SIEMENS |
Guideway | Taiwan | HIWIN |
Switching power supply | Taiwan | MW |
Sensor switch | Korea | AUTONICS |
Pneumatic component | Japan | SMC |
Touch screen | China | GAOSHAN |
Servo motor | Japan | YASKAWA |
Servo driver | Japan | YASKAWA |
FAQ of insulated glass line automatic sealing robot
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
Q: About this Machine,What’s the guarantee ?
A:1)Our guarantee for 12 months.
2)24 hour’s technical support by email or calling
3)English manual and video tutorial
4)We will provide the consumable parts at an agency price
5)24 hours on line service each day, free technical support.
Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique support, Feedback to
you within 24 hours and help you to repair your problem controller freely, even it's not from our factory
Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel
and pick up you from airport.
Company Profile
Jinan Lijiang Automation Equipment Co., Ltd specializes in the R & D and manufacturing
of automatic insulating glass machinery, with a registered capital of 20 million RMB. Domestic
friendly partners include nearly one thousand customers, such as North glass, Xinfuxing, Yaohua,
etc. The products have been exported to Europe, the United States, the Middle East, Southeast Asia,
South America,Romania, Bulgaria, Span and other countries (about 30 countries) of the world. There
are about ten agencies, such as North America, South America, Europe, Southeast Asia, the Middle
East, South Korea, etc. At the same time, we have set up branches in New Delhi, India. At present,
the export of products accounts for more than 50% of the company's total sales.
LIJIANG’ new factory covers an area of 20000 square meters, has more than 100 employees, 6 people
with middle and senior technical titles, 8 full-time technical R & D personnel, 3 production workshops
(welding sheet metal workshop, machining workshop and assembly workshop) and technical R & D
department, and has an independent international trading company (JINAN KATION). The production
management and sales system of the enterprise adopts the advanced ERP and CRM management
software in China to build an efficient, accurate, united and orderly high-end team.
