Product Details:
|
| Name: | Vertical Insulating Glass Sealing Robot | Air Pressure: | 0.6-0.8MPa |
|---|---|---|---|
| Squeeze Pressure: | <350kg/m³ | Plane Angle: | 6°- 9° |
| Max Glass Weight400kg: | 400kg | Voltage Power: | 380V 12kw |
| High Light: | CE Insulating Glass Sealing Robot,Hollow Glass Insulating Glass Sealing Robot,Hollow Glass Sealant Sealing Robot |
||

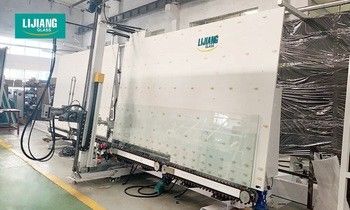

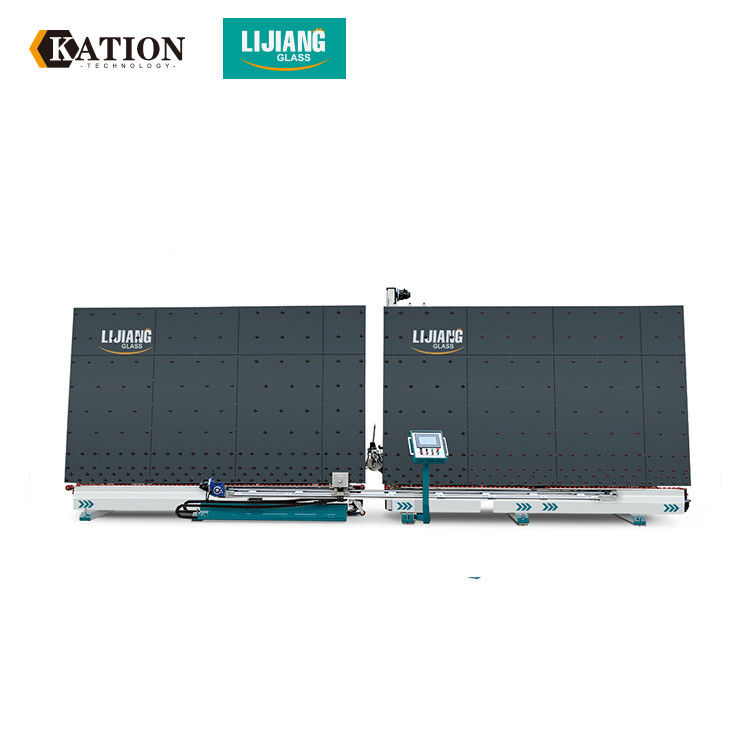

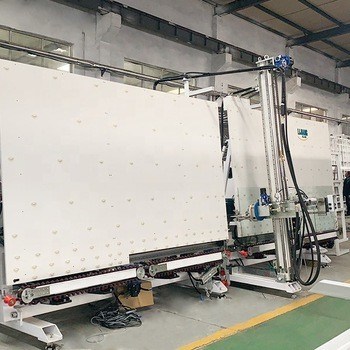

Vertical Insulating Glass Sealing Robot LJTJ2540
² Application of
l Min & Max glass sizes can be optional
l Adopt 8 servo motors
l Adopt Japan ANCHUAN servo control system with stable performance
l Automatically measure glass size, glue depth and glue speed with linear adjustment
l Adopt timing belt to keep smooth convey with accurate position
l Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working
l The glass corners are full without air bubbles, smooth surface, no need to
l Full automatic and high-efficiency machine
l New scraper design, especially for making train IG with very even sides and corners, without any bubbles.
l Automatically repair glass corners with beautiful surface
l Smooth convey without scratch and pollution
l Single-function parts are equipped with manual functions, easy adjustment
l Shaped IG units (Optional)
l Stepped IG units with four sides (Optional)
l Double and Triple IG units
Technical data
| Max.glass size | 2500mm |
| Min.glass size | 170mm*400mm (2000mm machine) |
| Glass thickness | 12-56mm |
| Working speed | 5-40m/min |
| Air pressure | 0.6-0.8MPa |
| Squeeze pressure | <350kg/m³ |
| Plane angle | 6°- 9° |
| Max glass weight | 400kg |
| Voltage power | 380V 12kw |
| Overall dimension | 8700mm*2000mm*3500mm |
| Name | Brand |
| Switch | SIEMENS |
| Servo motor | Japan YASKAWA |
| I/O model | Japan MSYSTEM |
| Lower voltage component | Siemens |
| CPU | Japan YASKAWA |
| Frequency converter | Japan OMRON |
| Switching power supply | Taiwan MW |

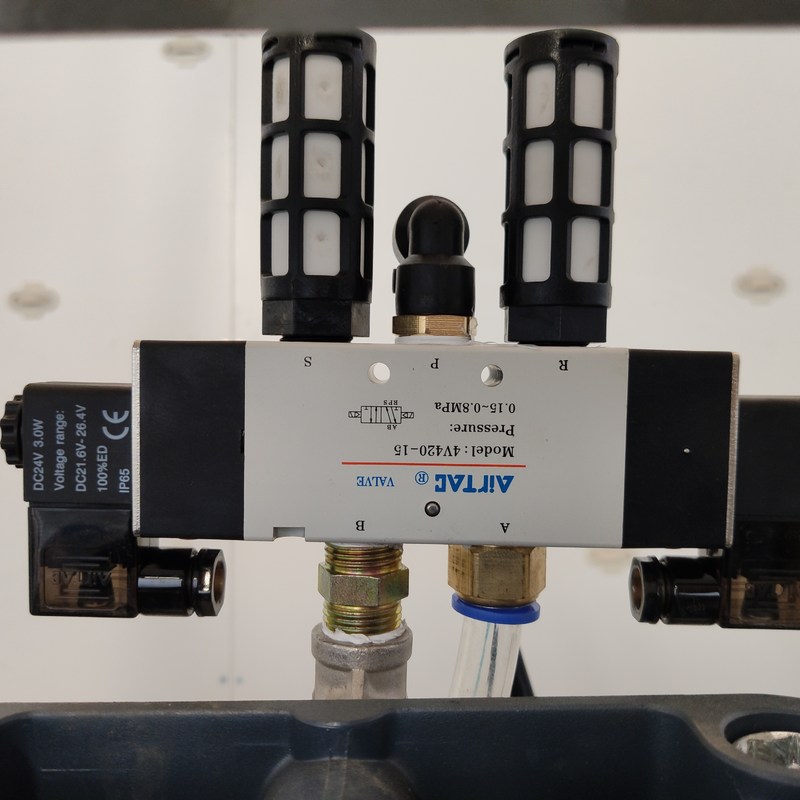

| Pneumatic component | Japan SMC |
| PLC | Siemens |
| Guideway | Siemens |

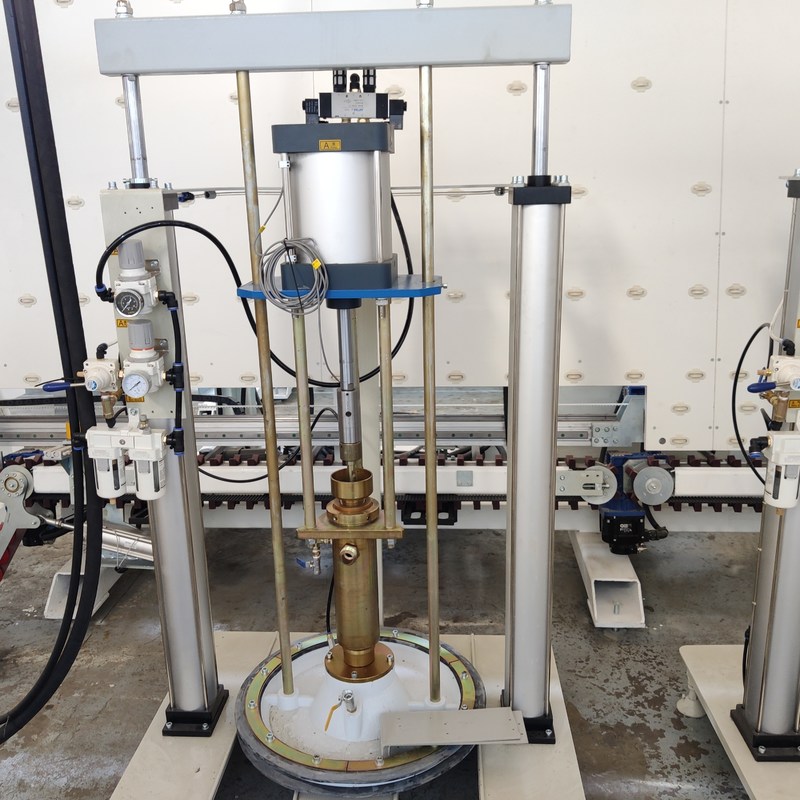

Ø One Set of Pump A & Pump B
Equipped with single A component and single B component. Glue A and B automatic mixing, automatic ratio.
Ø Two Sets of Pump A & Pump B
Equipped with two sets of A components and two sets of B components, which can be used for two kinds of different sealants, such as silicone rubber, polysulfide rubber, silicone structural adhesive and so on.
Ø Back Glue Device
When the pressure increasing, more Glue B will flow back automatically, saving materials.
FAQ
FAQ
Q: What is the system of Kation’s after sale service?
A: Kation has its own special system for the service, we make a “tree of knowledge”for guiding
customer to find the usual problem and the answer when customers meet.
Q: What is the details of the after sale service?
A: Step1: Notice before installation
Step2 : Confirm before installation
Step3: On-site installation
Step4: On-site debugging
Step5: On-site training
Step6: Client sign
Step7: On-line service
Step8: Technical service
More details please search www.lijiang-glass.com
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
Q: About this Machine,What’s the guarantee ?
A:1)Our guarantee for 12 months.
2)24 hour’s technical support by email or calling
3)English manual and video tutorial
4)We will provide the consumable parts at an agency price
5)24 hours on line service each day, free technical support.
Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique support,
Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not
from our factory
