Product Details:
|
| Certification: | CE | Production Name: | Automatic Insulating Glass Aluminum Alu-spacer Bending Machine |
|---|---|---|---|
| Max Spacer Size: | 1800mm*2000mm | Min.bending Machine: | 150*250mm |
| Spacer Types: | Aluminum Space/warm Edge Spacer | Servo Motor: | Servo Motor |
| Machine Type: | Beading Machine, | Usage: | Aluminum Spacer Bar Bending, Bend Aluminum Spacer Bar Into Required Shape |
| Automation: | Automatic | Aluminum Spacer Width: | 5.5-26.5mm |
| High Light: | Cnc Bending Glass Machine,High Frequency Bending Glass Machine,Cnc glass bending equipment |
||

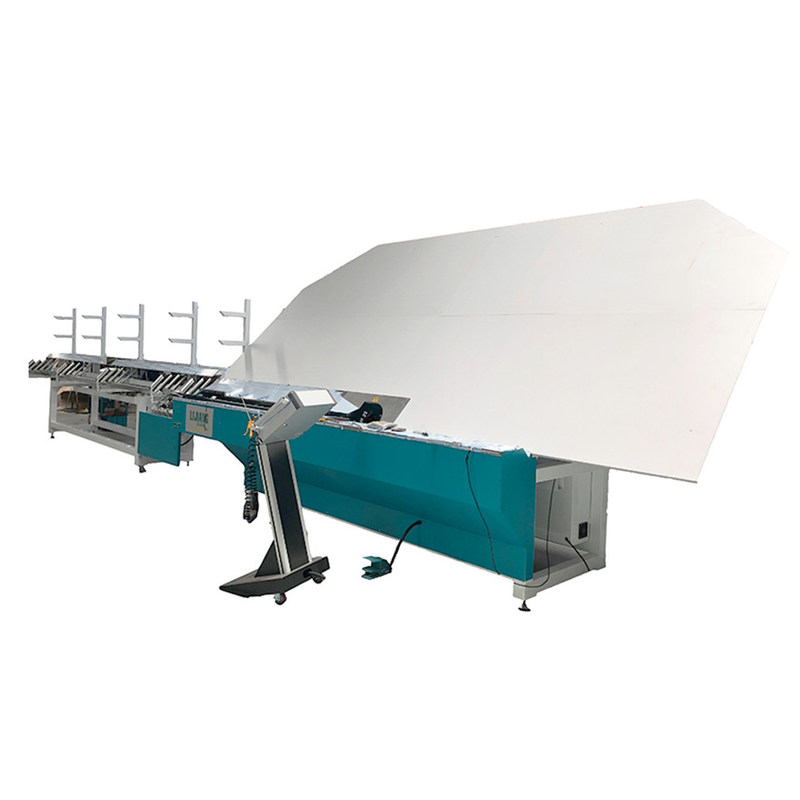

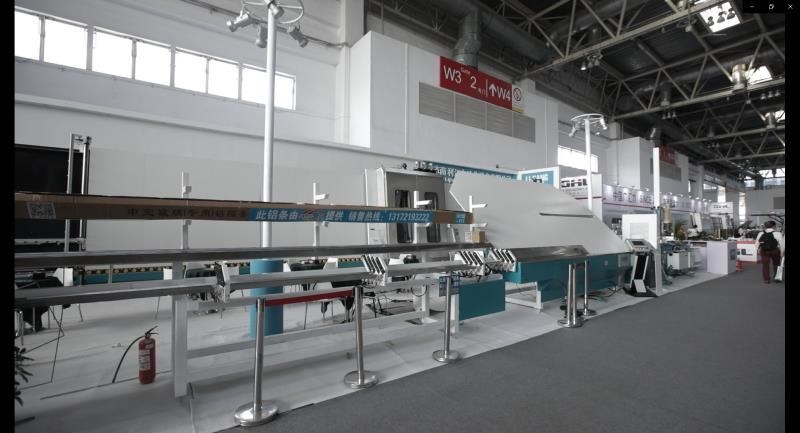

Automatic Insulating Glass Aluminum Spacer Bending Machine for glass Processing
Technical parameter of Automatic spacer frame bending machine
|
Max. bending size
|
2000mm*2000mm |
|
Min. bending size
|
250mm*180mm |
|
Aluminum spacer width
|
6A - 27A |
| Spacers racks | 4 Racks |
|
Spacer size error
|
±0.5mm |
|
Angle error
|
±1° |
|
Processing speed
|
< 25s (1000mm*1000mm) |
|
Air supply
|
≥0.65MPa |
| Voltage | 380V50Hz 3P |
| Total power | 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |

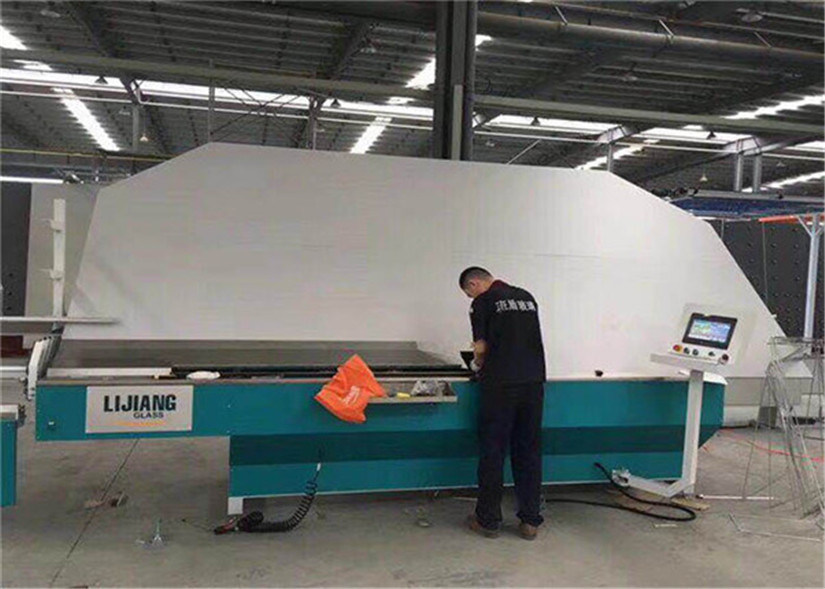

Main feature of Automatic Aluminum Spacer Bending Machine
● Lijiang glass aluminum spacer bending machine adopts servo control feed method, and spacer frame size can be adjusted with an accuracy of 0.1mm / m.
● You can freely choose multiple sizes of aluminum bars.
Automatically adjusts bending speed according to the size of the aluminum frame
Prevents deformation of large frames and ensures high speed and continuity of small frames
● Installed 4 groups of spacer storage units
● Automatic continuous connection of spacers, spacer cutting, spacer bar joint height
● No important prompts, sleep prompts, failure prompts, word prompts, unjustified data
Garbage disposal and quick support Arc type aluminum frame and special shape aluminum frame bending
● USB function that can read Excel directly ● Connect with ERP (optional)
Production Overview of aluminum alu-spacer bending machine
Insulating glass is made of 2 or more float glass with argon desiccant with aluminum frame. The primary seal (butyl) and the secondary seal (polysulfide or structure) between the hollow glass and the aluminum frame. When the insulating glass is coated with Low-E film, it will be effectively protected by radiation.
Automatic aluminum gasket bending machine is special equipment for manufacturing hollow glass aluminum frame, which replaces traditional manufacturing technology.
The automatic gasket bending machine can make one aluminum strip at a time, and make a variety of convex polygonal aluminum frames, thereby enhancing the strength of the aluminum frame and making the sealing effect of the insulating glass better.
Detail of Automatic spacer bending machine
1.German siemens plc control system,touch screen interface.
Siemens 1200PLC control system with fast working speed.
2.Automatic Aluminum spacer bending machine have Four or Twelve different spacer size storage units can choose
3 Aluminum spacer can be automatically cut and fed with a bending machine
4. Rugged connector, convenience and safety for installation and debugging

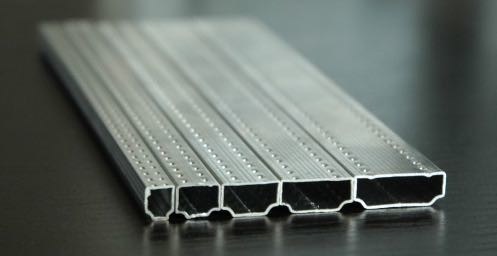

5. Aluminum spacers are available in different specifications and in sizes of 6A-27A.
6.Spare parts of all machine have ID codes.
7.Support continuous bending , it automatically avoid spacer -connection while bending and cutting
8.Precise bending effect, corner error less than 0.1mm.
9.The special machine hand device is used to bend big spacer frame
10. Automatic spacer bender can bend aluminum spacer / technofoam / Alupro / swisspacer / stainless steel / thermix (optional)
11.Printing paper label sticker function (Optional),could remove it easily.
11.USB input function ,it can read the excel data directly
Related Product
Sealant-spreading Machine LJST02A
Main feature
• Imported motor system to improve equipment efficiency
• Imported sealant gun,stainless steel mixer
• High pressure protect device
• Anti-back flow control structure
• Mixed rate detector can control the rate of two kinds of glue
Technical data
| Working air pressure | 0.3-0.6MPa |
| Sealant spreading pressure | 15-20MPa |
| Sealant volume | 4L/min |
| Diameter of A/B sealant | 570mm/280mm |
| Sealant spreading air pressure ratio | 50:1 |
| Mixed rate | 6:1-14:1 |
| Air supply | Flow 0.8m3/min |
| Air pressure | ≥0.8MPa |
| Overall dimension |
1100*950*1630mm |
Butyl Extruder Machine LJTB 01
Main feature
•PLC control system, touch screen interface
•Automatically recognize the width of the aluminum strip, and the glue nozzle can be automatically adjusted
• The key part of the hydraulic system uses components imported from Germany to ensure that the plastic is evenly filled
•Quick preheating to improve work efficiency
•Has preheating function
• With the function of exhaust and inflation, improve the sealing quality and save plastic time
• Fast coating speed, up to 47m/min
•Save the amount of glue
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
Electrical parameters
| Name | Original | Brand |
| PLC | China | KINCO |
| Valve | German | HAWE |
| Low voltage electrical apparatus | German | SIEMENS |
| Hydraulic and pneumatic supercharging system | German | MAXIMATOR |
| Frequency converter | China | KINCO |
| Pneumatic components | Taiwan | ARTAC |
| Quick exhaust valve/Vacuum generator | Japan SMC | SMC |
| Travel light | Japan | OMRON |
| Optical fiber | Japan | OMRON |
Smart Vertical Edge Deleting Machine LJCM2545
Main feature
•Two-way glass channel
•Automatic size measurement
•Automatically identify low-emission surfaces
• The head can be rotated 360°
•Safe and fully automatic equipment
•PLC control system, touch screen interface
•Six servo control system
• Edge deletion is adjustable
•Intelligent control system, can identify batch processing
Technical data
| Max. glass processing size | 2500*4500mm |
| Min. glass processing size | 400*280mm |
| Glass thickness | 3-15mm |
| Diameter of grinding wheel | 200mm |
| Conveyor height | 500mm |
| Edge deleting width | 10-50mm |
| Transmission speed | 1. 29m/min |
| Edge deleting speed | 2-29m/min |
| Abrasive wheel width | 10/12/15mm |
| Glass thickness | 3 - 15mm |
| Grinding wheel speed | 0~3000r/min |
| Total air consumption | 100L/ min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50Hz 3.35KW |
| Dimension | Dimensions :9700×2500×3400mm |
| Total weight | 3700KG |
Electrical parameters
| NAME | ORIGIN | BRAND |
| Servo motor | Taiwan | TAIDA |
| PLC | Taiwan | TAIDA |
| Pneumatic component | Taiwan | AAIRTAC |
| Low pressure electricity | Germany | SIEMENS |
| Circuit breaker | Germany | SIEMENS |
| Sensor switch | Korea | AUTONICS |
| Approach switch | Korea | AUTONICS |
| Limit switch | Taiwan | TEND |
| Connector | Germany | SIEMENS |
| Frequency converter | France | SCHNEIDER |
| Main Button | France | SCHNEIDER |
| Intermediate relay | Japan | OMRON |
Butyl Extruder Machine LJTB 03
Main feature
• PLC control system, touch screen interface
• Frequency control system
• Arc frame coating structure
• Imported pneumatic and hydraulic supercharging system
• Automatic centering and clamp structure
• Up to 14KG load capacity, saves adhesive supply time
• Adopt 5 steps to control transmission
• Preheating function, adhesive cylinder limiting function, alarm system
• Adhesion/adhesion mechanism adopts the latest design
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 6A-27A |
| Speed | 0-40m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW,50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| weight | 650kg |
Glass Washing Machine
Main feature:
• Use 6 soft brushes
• Cleans online and offline low-e glass and automatically recognizes Low-e film
・ The cleaning part adopts a design with a vertical layer structure
• Adopts variable frequency fan, energy efficient and excellent cleaning effect
• The air knife can automatically adjust the width of the air knife according to the thickness
• Use of intelligent intermittent energy-saving work methods
• Hierarchical cleaning system
• Automatic temperature control of water tank, water supply system
• European silencer system
• 304 stainless steel material
3.Desiccant Filling Machine
Main feature
• Adopt Siemens PLC control system
• Touch screen interface, easy operation
• The height can be adjusted according to the size of spacer frame
• Automatically loading and replenish desiccant
• Filling time can be adjusted
• Automatically drilling, filling and sealing
• Core parts are imported brands
• Arc frame (optional)
• Fill large particle molecular sieve (Optional)
Technical data
| Max. frame size | 2000mm*2000mm (2500mm*2500mm) |
| Min. frame size | 300mm*250mm |
| Aluminum specifications | 6A- 27A |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1KW |
| Molecular sieve diameter needed | 0.5-0.8mm |
| Dimension | 1100mm*1100mm*3600mm |
