CNC Servo Control Automatic Spacer Bending Machine Glass Bending Equipment

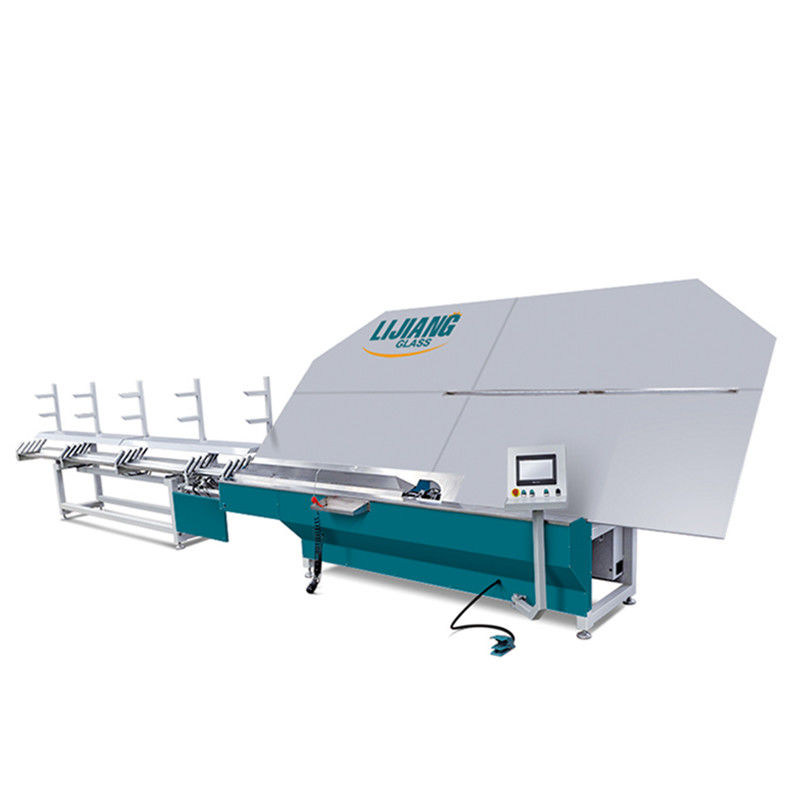

Large Image : CNC Servo Control Automatic Spacer Bending Machine Glass Bending Equipment

Product Details:

Place of Origin:	China
Brand Name:	Lijiang Glass
Certification:	CE
Model Number:	LJZW2020

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 30000.00 -35000.00
Packaging Details:	Container/wooden box
Delivery Time:	30days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	15sets/month

Contact Now

CNC Servo Control Automatic Spacer Bending Machine Glass Bending Equipment

Description

High Light:

Servo Automatic Spacer Bending Machine

2000mm Automatic Spacer Bending Machine

Servo Control Glass Bending Equipment

Automatic Spacer Bending Machine LJZW2020A/Glass Bending Machine CNC Servo Control Automatic Spacer Bending Machine Glass Bending Equipment 0

Automatic Spacer Bending Machine of Insulating Glass LJZW2020

Main feature

• Germany Siemens PLC control system, touch screen interface

• Japan FUJI CNC servo control system

• Four spacer size storage units

• Using servo system to control feeding mechanism

• Automatically cut and feed aluminum spacers

• Auxiliary function of adjustment for bending large aluminum frame

• Aluminum spacers are available in different sizes and sizes

• Bend shaped spacer frames continuously

• Separated guard board outside of bender

• Automatically avoid the connection while bending and cutting

• Pause and Reset device for handling equipment failures

• Can bend aluminum spacer, Technoform,


Technical parameter:

			Max.bending size
			2000mm*2000mm (2500mm*2500mm)

			Min.bending size
			250mm*200mm

			Aluminum spacer width
			5.5-27mm

			Dimensional error
			±0.5mm

			Angle error
			±1º

			Processing speed
			≤26s

			Air supply
			≥0.65MPa

			Total power
			AC220/380V 50Hz 2.5KW

			Dimension
			10500mm*2200mm*2600mm
