Product Details:
|
| Production Name: | Automatic Sealing Robot | Color: | Option |
|---|---|---|---|
| Max Glass Size: | 2500 * 4000 | Min Glass Size: | 250*400 |
| IG Thickness: | 56 Mm | IG Types: | Step Glass , Triple Glass , Double Glass |
| Shaped Glass: | 8 Shapes | Triple Glass: | Coated By Once Time |
| Warranty: | 1 Year | After Sales Service: | Provide |
| High Light: | Polysulfide Sealant Sealing Robot,Silicone Sealant Sealing Robot,Polysulfide sealant sealing machine |
||

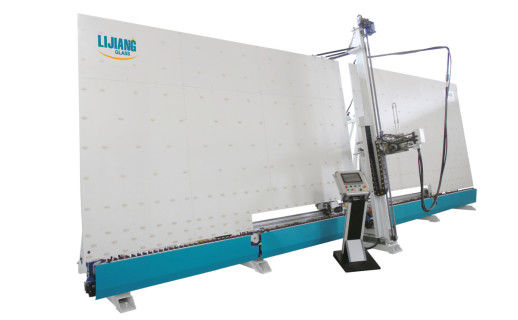

Automatic Sealer Silicone And Polysulfide Sealants Sealing Robot Machine
Main features for the automatic sealer machine
● Japan Yaskawa servo control system, full automatic and high-efficiency
● Automatic memory function, no need to input parameters repeatedly
● Automatically repair glass corners with scraper and roller
● Machine has four sections, can storage glass
● Automatically measure glass size and glue depth, adjust sealing speed
● Adopt timing belt, smooth transfer and accurate position
● Every auto-function is with manual operation
● Can coat double glass, shaped glass, step glass, triple glass
● One set of booster pump controls two groups of sealants
● Automatic timing glue discharging function
● The glue mixing system adopts anti-blocked structure and is easy to clean
Technical parameter
| Max. glass size | 2000*3000/2500*4000mm |
| Min. glass size | 400*300mm |
| Glass thickness | 12-56mm |
| Working speed | 5-40m/min |
| Air pressure | 0.6-0.8MPa |
| Squeeze pressure | ＜ 35MPa |
| Voltage | 380V 50Hz 3P |
| Power | 15kw |
| Overall dimension | 6700*2500*3000mm/8700*2500*3500mm |
| Weight | 4300kg/5000kg |
Based options for automatic sealing robot :
1. Single / double glue supply system can be selected. The single glue supply system is equipped with one set of A pump and B pump, which is suitable for a kind of sealant. Double glue supply system is suitable for two different kinds of sealant. Polysulfide, silicone, silicone structural and polyurethane sealants are all suitable for this machine.
2. Synchronous belt conveyor glass V-block is replaceable
3. Special anti blocking structure Easy to clean
4. Four sections Store 4 pieces of glass
Electrical parameters for the automatic sealing robot
| NAME | ORIGIN | BRAND |
| Servo motor | Japan | YASKAWA |
| Servo driver | Japan | YASKAWA |
| CPU | Japan | YASKAWA |
| Low voltage component | Germany | SIEMENS |
| Guideway | Taiwan | HIWIN |
| Switching power supply | Taiwan | MW |
| Sensor switch | Korea | AUTONICS |
| Pneumatic component | Japan | SMC |
| Touch screen | China | GAOSHAN |
| Servo motor | Japan | YASKAWA |
| Servo driver | Japan | YASKAWA |
After sales service for the automatic sealing robot
Introduction of the LIJIANG GLASS
Jinan Lijiang Automation Equipment Co., Ltd specializes in the R & D and manufacturing of automatic insulating glass machinery, with a registered capital of 20 million RMB. There are nearly one thousand domestic friendly customers, such as North glass, Xinfuxing, Yaohua, etc. The products have been exported to Europe, the United States, the Middle East, Southeast Asia, South America,Romania, Bulgaria, Span and other countries (about 30 countries) of the world. Our company mainly has 10 agents, located in Unite States, South America, Europe, Southeast Asia, the Middle East, South Korea, etc. At the same time, we have set up branches in New Delhi, India with local after-sales engineers. Up to now, the export volume of our products accounts for more than 50% of the total sales of the company.
