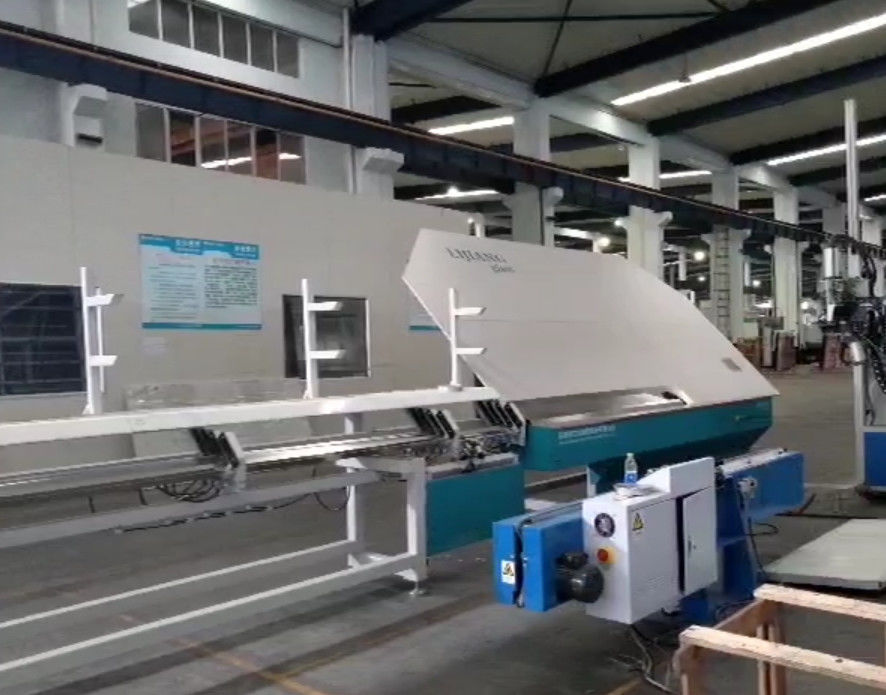

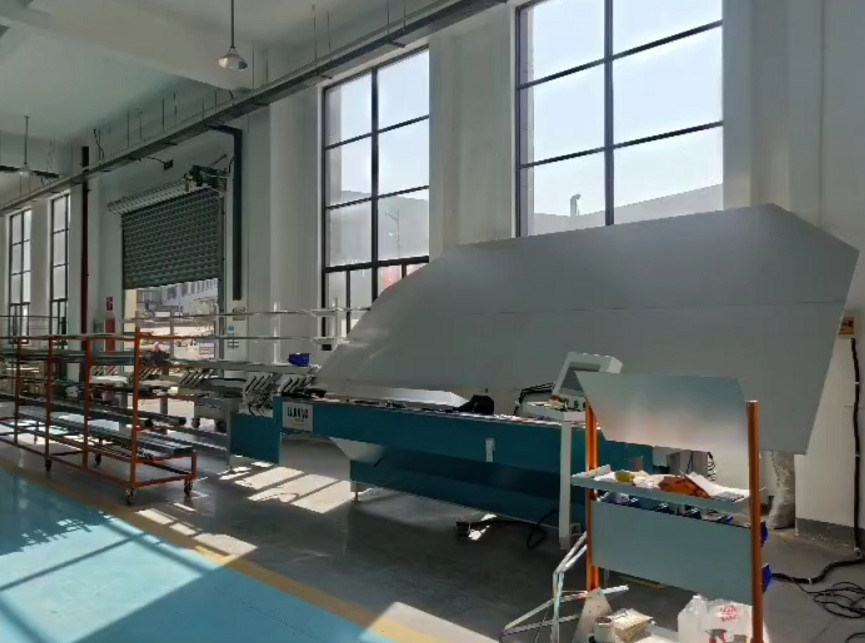

Automatic Insulating glass aluminum alu-spacer bending deep processing machine
Production Overview of aluminum alu-spacer bending machine
Hollow glass is made by 2pcs or more float glasses which filled with desiccant of Argon gas with Aluminum frame.Primary seal(butyl)between insulating glass and Aliminum frame, secondry seal(polysulfide or structure). Insulating glass will be effectively protect radiation when coated Low-E film.Automatic Aluminum spacer bending machine is a special equipment for making aluminum frames of insulating glass, which replaces the traditional fabrication technology. Spacer bending machine can make a variety of convex polygonal aluminum frames by one aluminum strip in one time, thus strengthening the strength of the aluminum frame, making the sealing effect of the insulating glass more better.
Main Features:
1. PLC control, touch screen simple operation.Siemens 1200 PLC control system with fast working speed
2.Four material strage slots for four different specifications of spacers.
3.Bend aluminum spacer, smooth stainless steel, warm spacer,Automatically avoid the pins while bending and cutting
4.Bending and cutting automaticlly avoid the connection, the roundness,auto matically cut after bending.
5.It can make triangle ,rectangle,positive five squareness,positive hexagon,roundness shap and so on.
6.Pause and Reset device for handling equipment failures
7.Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 5.5-26.5). Different sizes of aluminum bars require different size tools
Technical parameter of Automatic Aluminum spacer bending machine
|
Max. bending size
|
2000mm*2000mm |
|
Min. bending size
|
250mm*180mm |
|
Aluminum spacer width
|
6A - 27A |
| Spacers racks | 4 Racks |
|
Spacer size error
|
±0.5mm |
|
Angle error
|
±1° |
|
Processing speed
|
< 25s (1000mm*1000mm) |
|
Air supply
|
≥0.65MPa |
| Voltage | 380V50Hz 3P |
| Total power | 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Detail of Automatic Aluminum spacer bending machine
1.Siemens 1200PLC control system with fast working speed.German siemens plc control system,touch screen interface.
2.Automatic Aluminum spacer bending machine have Four or Twelve different spacer size storage units can choose
3.Automaticlly cut and feed Aluminum spacers
4.Heavy duty connectors ,convenience and safety for installation and debugging
5. Aluminum spacers are available in different specifications and in sizes of 6A-27A.
6.Spare parts of all machine have ID codes.
7.Support continuous bending , it automatically avoid spacer -connection while bending and cutting
8.Precise bending effect, corner error less than 0.1mm.
9.The special machine hand device is used to bend big spacer frame
10.Automatic spacer bending machine can bend aluminum spacer /technoform /Alupro /swisspacer/ stainless steel /thermix (optional)
11.USB input function ,it can read the excel data directly
12.Printing paper label sticker function (Optional),could remove it easily.
Related Product
Butyl Extruder Machine LJTB 01
Main feature
• PLC control system, touch screen interface
• Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust
• The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full
• Fast preheat, improve work efficiency
• with preheating function
• With exhaust inflatable function, improve the quality of sealing and save time for plastic
• Quickly coating speed,can up to 47m/min
• Saving the amount of glue
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
Electrical parameters
| Name | Original | Brand |
| PLC | China | KINCO |
| Valve | German | HAWE |
| Low voltage electrical apparatus | German | SIEMENS |
| Hydraulic and pneumatic supercharging system | German | MAXIMATOR |
| Frequency converter | China | KINCO |
| Pneumatic components | Taiwan | ARTAC |
| Quick exhaust valve/Vacuum generator | Japan SMC | SMC |
| Travel light | Japan | OMRON |
| Optical fiber | Japan | OMRON |
Smart Vertical Edge Deleting Machine LJCM2545
Main feature
• Two-way glass access
• Automatically measure size
• Automatically distinguish low-e surface
• The head can be rotated 360°
• Safe and full automatic device
• PLC control system, touch screen interface
• Six servos control system
• Edge deletion is adjustable
• Intelligent control system, can recognize batch processing
Technical data
| Max. glass processing size | 2500*4500mm |
| Min. glass processing size | 400*280mm |
| Glass thickness | 3-15mm |
| Diameter of grinding wheel | 200mm |
| Conveyor height | 500mm |
| Edge deleting width | 10-50mm |
| Transmission speed | 1. 29m/min |
| Edge deleting speed | 2-29m/min |
| Abrasive wheel width | 10/12/15mm |
| Glass thickness | 3 - 15mm |
| Grinding wheel speed | 0~3000r/min |
| Total air consumption | 100L/ min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50Hz 3.35KW |
| Dimension | Dimensions :9700×2500×3400mm |
| Total weight | 3700KG |
Electrical parameters
| NAME | ORIGIN | BRAND |
| Servo motor | Taiwan | TAIDA |
| PLC | Taiwan | TAIDA |
| Pneumatic component | Taiwan | AAIRTAC |
| Low pressure electricity | Germany | SIEMENS |
| Circuit breaker | Germany | SIEMENS |
| Sensor switch | Korea | AUTONICS |
| Approach switch | Korea | AUTONICS |
| Limit switch | Taiwan | TEND |
| Connector | Germany | SIEMENS |
| Frequency converter | France | SCHNEIDER |
| Main Button | France | SCHNEIDER |
| Intermediate relay | Japan | OMRON |
