Place of Origin:
China
Brand Name:
Jinan Lijiang Glass Machinery
Certification:
CE & ISO9000
Model Number:
LJCM2545 Smart Vertical Edge Deleting Machine
Video
Video
Video

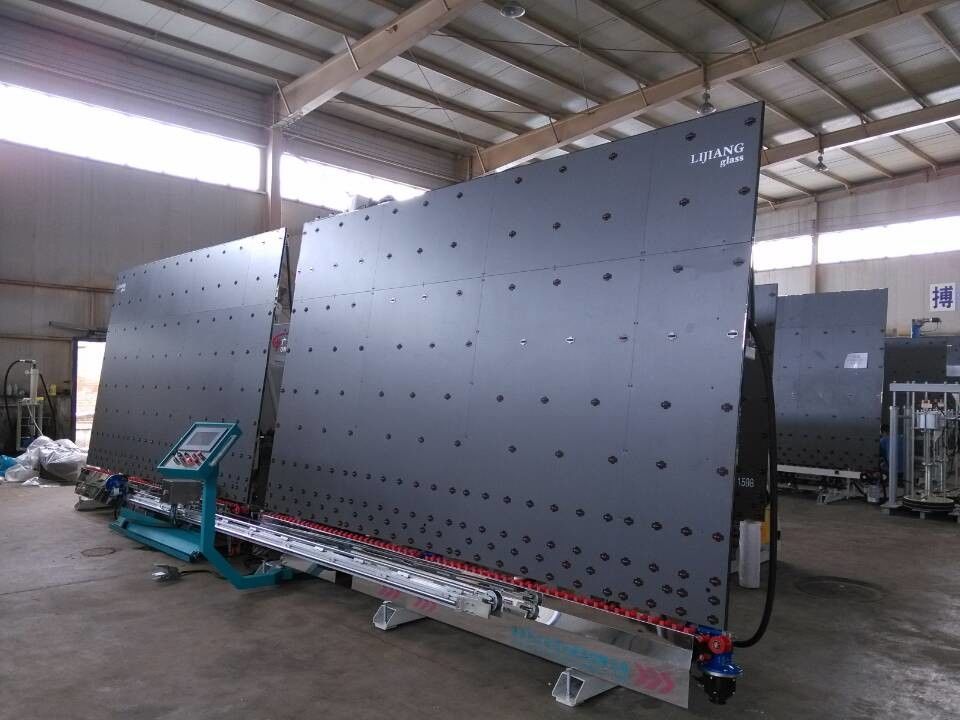

Automatic Insulating Glass Sealing Robot Sealant Line Double Glazing Hollow Glasing Coating Machine for Glass Processing
Feature:
1) Automatically adjust nozzle extending width according to the glass width
2) Intelligent dispensing system is able to calculate the amount of sealant needed
3) Pressure regulation set via human-machine interface, working smoothly and operated conveniently
4) Automatic sealant compensation at the corners, sealing supplementary time adjustable
5) Can be either used standalone, or integrated into existing I.G production line
6) Sealing head floating pressure intelligent control
7) Sealant extruded by hydraulic cylinder, performance is smooth and uniform
8) Input and outcome transmission flat V-belt automatically open and close
according to the thickness of the glass
9) Circa 10 servo motors control system, can work with triple insulating glass
Technical Data:
1) Power: AC380V, 50Hz, circa 15KW
2) Air pressure: 0.6~0.7MPa
3) Dimension: 9000(L)×3000(W)×3500(H)mm
4) Min. glass size: 450×300mm
5) Max. glass size:3500×2500mm (can be larger or smaller according to the requirements )
6) Insulating glass thickness: 14~54mm
7) Working height: 530±30mm
8) Sealing speed: 5~30m/min
9) Sealing depth: 4-22mm
10) Sealing width:6-24mm
11) Sealants supply Pressure: ≤300kg/cm2
12) Working angle: 6°~8°
13) Max. glass weight: circa 600kg
14) Average estimated yield: about 700 chunks / per 8h
More Details Pictures
Main Components List:
| NO. | Name | Brand | Original |
| 1 | Air-Switch & Relay | Schneider | France |
| 2 | DC power | Meanwell | Taiwan, China |
| 3 | Touch Screen | Weinview | Taiwan, China |
| 4 | Servo Motor & Driver | Fuji | Japan |
| 5 | PLC | TRIO | UK |
| 6 | Planetary Reducer | Eisele | Germany |
| 7 | Cylinder | SMC or AIRTAC | Japan or Taiwan,China |
| 8 | Synchronous Belt | Megadyne | Italy |
