Product Details:
|
| Dimension(L*W*H): | 22000x2000x3380mm | Power: | 25kw |
|---|---|---|---|
| Glass Thickness: | 3-60mm | Brush: | Soft Low-E Brush |
| Press Type: | Flat Press | Material: | Stainless Steel |
| Production Capacity: | 50m/min | Voltage: | 380V |
| High Light: | 50m/min Insulating Glass Machine,Low E Insulating Glass Machine,50m/min silicone sealant pump |
||

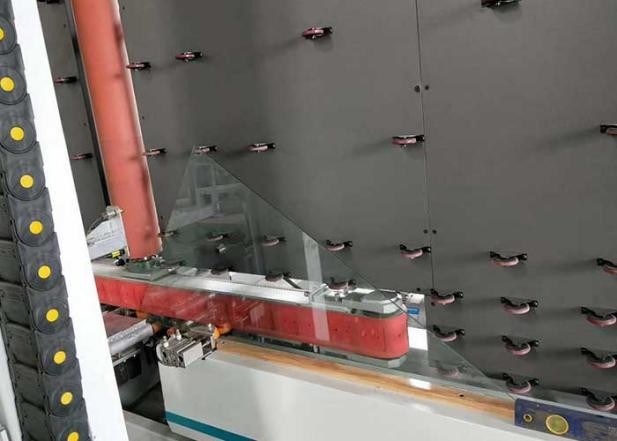

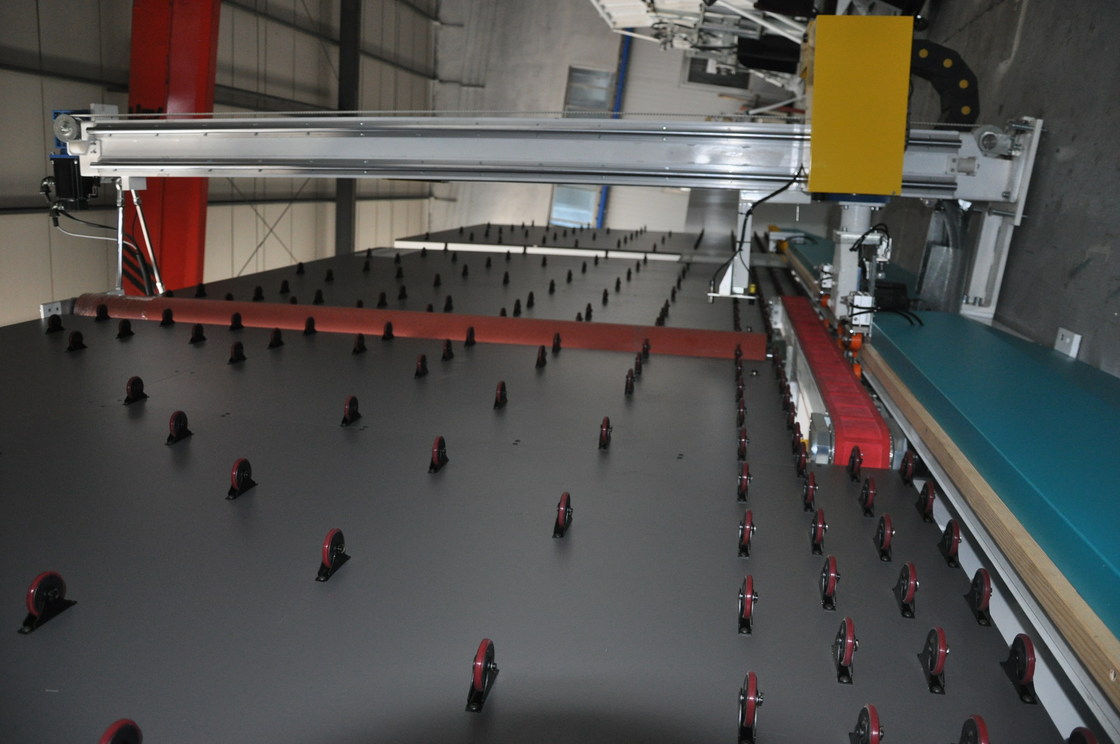

INSULATING GLASS AUTOMATIC SEALING ROBOT
Features:

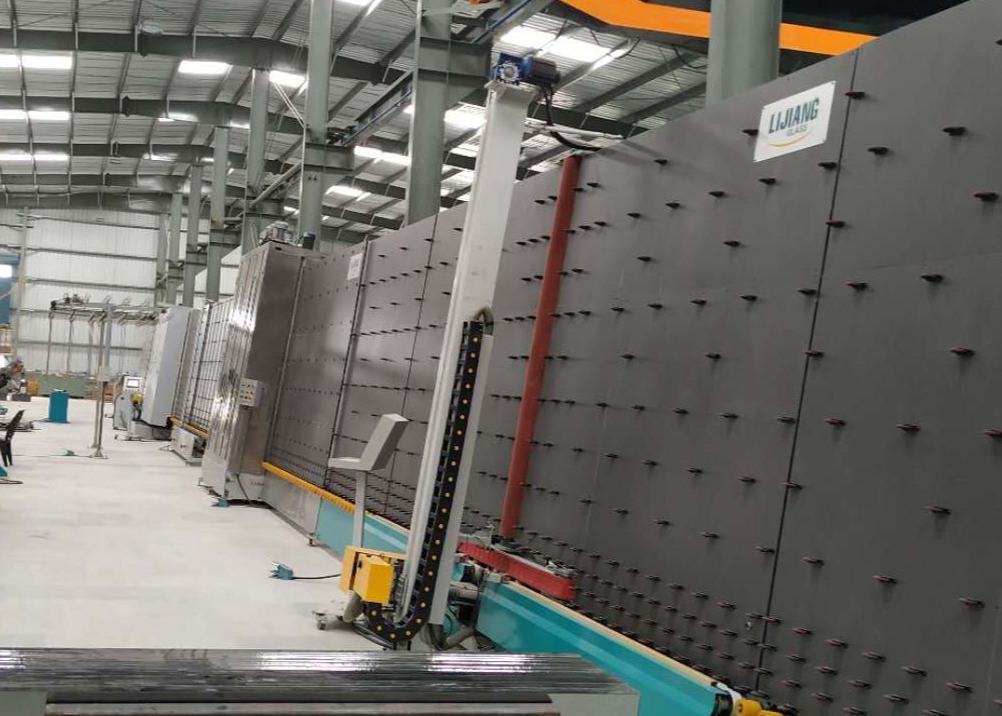

a. The whole line is composed of feeding part, glass washing and drying part, lamp
inspection part, glass conveyor part, aluminum frame locating part, flat (roller) press
part, tilting part.
b. Low-E Insulating Glass Production Line, soft low-e brush installed, it can process
low-e glass.
c. It can make triple insulating glass, that is three layers insulating glass and shaped
insulating glass.
d. Washing and drying part with full stainless steel.
e. Heating device, auto heat the water in cold weather.
f. Man-machine interface, easy to operate
Functions & characteristics:
1) Achieve various size of rectangular insulating glass automatic continuously sealing,high efficiency & stable quality sealing performance.
2) Two separate sealant(pump,mixing device )system,which can be switched freely.
3) Finished IG unit can be stored on the third section,strengthen the continuity of machine’s operation,and improve the production efficiency.
4) Economical and practical,suitable for glass deep,processing enterprises.
5) Friendly interface,easy for operation
6) All edges and corners sealant coating enrich no air bubbles,fully coating ,without manual trimming.
7) Adopt word-renowned brand of servo control system,stable perfomance.
8) Accurate synchronous belt transmission system to ensure glass convey stable and clean.
9) Unique insufficient sealant to be automatic alarm device.
Technique parameter:
Power voltage: 380V/50HZ/3P or customized
Min. Glass size: 280x450mm
Max. Glass size: 2500x3500mm
Glass thickness: 3-12mm
Insulating glass thickness: 12-60mm
Sealing speed : 12-30m/min
Sealing width: 6-24mm
Sealing depth: 2-15mm
Conveyor speed: 0-48m/min
Power supply: 13KW
Air supply: 0.5-0.8Mpa
Working height: 520mm
Technical Data
| Model | Max.Glass Size | Min.Glass Size | Glass Thickness | Power | Weight | Dimension |
| 2500 | 2500*3000mm | 300*500mm | 3-50mm | 25Kw | 8000Kg | 22000*2000*3380mm |
| 2200 | 2200*3000mm | 300*500mm | 3-50mm | 25Kw | 6500Kg | 20000*2000*3000mm |
| 2000 | 2000*2500mm | 300*500mm | 3-50mm | 20Kw | 6000Kg | 14000*1680*2800mm |
| 1800 | 1800*2500mm | 300*500mm | 3-50mm | 20Kw | 5000Kg | 14000*1680*2600mm |
| 1800G | 1800*2500mm | 300*500mm | 3-50mm | 12.8Kw | 4800Kg | 13500*1680*2600mm |
| 1600 | 1600*2000mm | 300*500mm | 3-25mm | 13.59Kw | 4000Kg | 12000*12 |
Details Photos
