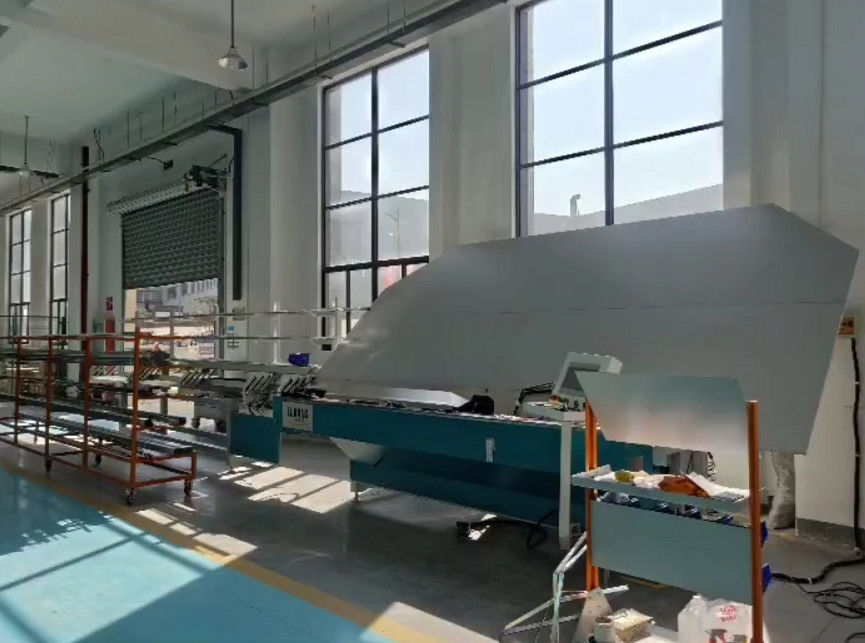

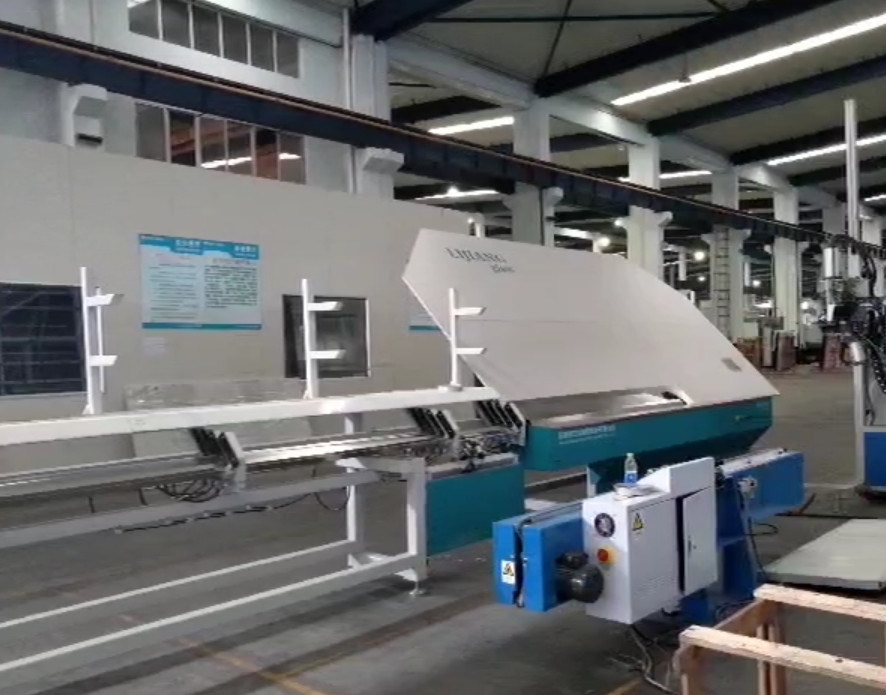

w5.5mm Aluminum Spacer Bar Bending Machine Insulating Glass

w5.5mm Aluminum Spacer Bar Bending Machine Insulating Glass
w5.5mm Aluminum Spacer Bar Bending Machine Insulating Glass w5.5mm Aluminum Spacer Bar Bending Machine Insulating Glass

Large Image :  w5.5mm Aluminum Spacer Bar Bending Machine Insulating Glass

Product Details:
Place of Origin: CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJZW2020A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Container
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month

w5.5mm Aluminum Spacer Bar Bending Machine Insulating Glass

Description
Production Name: Automatic Aluminum Spacer Bending Machine Max Spacer Size: 2000mm*2000mm
Min.bending Machine: 150*250mm Spacer Types: Aluminum Space/warm Edge Spacer
Servo Motor: Servo Motor Machine Type: Beading Machine,
Usage: Aluminum Spacer Bar Bending, Bend Aluminum Spacer Bar Into Required Shape Certification: CE
Automation: Automatic Aluminum Spacer Width: 5.5-26.5mm
High Light:

Aluminum Spacer Bar Bending Machine

,

W5.5mm Spacer Bar Bending Machine

,

W5.5mm Aluminum Bar Bending Machine

Aluminum automatic spacer bar bending machine for insulating glass



Features of Aluminum Spacer frame Bending Machine



• 4 or 12groups of spacer racks

• Bend aluminum spacer, smooth stainless steel, warm spacer

• Bend spacer frames continuously

• Automatically avoid the pins while bending and cutting

• Automatically cut and feed aluminum spacers

• Aluminum spacers are available in sizes of 6A-27A

• Siemens 1200 PLC control system with fast working speed

• Pause and Reset device for handling equipment failures

• Connect to ERP system

• Drill holes

• Printing code

• Printing label sticker

• Different bending tools for different sizes of spacers

• USB input function, read the excel format file directly Optional functions

• Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A). Different sizes of aluminum bars require different size tools



Technical Data of Automatic Aluminum spacer bar bending machine

Max. bending size



2000mm*2000mm

Min. bending size



250mm*180mm

Aluminum spacer width



6A - 27A
Spacers racks 4 Racks

Spacer size error



±0.5mm

Angle error



±1°

Processing speed



< 25s (1000mm*1000mm)

Air supply



≥0.65MPa
Voltage 380V50Hz 3P
Total power 2.5KW
Dimension 10500mm*2200mm*2600mm



Overview of  automatic aluminum spacer bending machine



Double glazing glass is made by 2pcs or more float glasses which filled with desiccant of Argon gas with Aluminum frame.Primary seal(butyl)between insulating glass and Aliminum frame, secondry seal(polysulfide or structure). Insulating glass will be effectively protect radiation when coated Low-E film.





Detail of Automatic Aluminum spacer frame bending machine



1.Automatic Aluminum spacer frame bending machine have Four or Twelve different spacer size storage units can choose.

w5.5mm Aluminum Spacer Bar Bending Machine Insulating Glass 0



2.Adopt German siemens plc control system,touch screen interface.Siemens 1200PLC control system with fast working speed.

w5.5mm Aluminum Spacer Bar Bending Machine Insulating Glass 1



3. Aluminum spacers are available in different specifications and in sizes of 5.5-26.5mm.

w5.5mm Aluminum Spacer Bar Bending Machine Insulating Glass 2



4Automatic spacer Support continuous bending , it automatically avoid spacer -connection while bending and cutting

w5.5mm Aluminum Spacer Bar Bending Machine Insulating Glass 3

4.Automaticlly cut and feed Aluminum spacers

5.Heavy duty connectors ,convenience and safety for installation and debugging

w5.5mm Aluminum Spacer Bar Bending Machine Insulating Glass 4



6.Automatic spacer bending machine can bend aluminum spacer /technoform /Alupro /swisspacer/ stainless steel /thermix (optional)

w5.5mm Aluminum Spacer Bar Bending Machine Insulating Glass 5





7.USB input function ,it can read the excel data directly



8.Spare parts of all machine have ID code ,convenient for after-sale service

w5.5mm Aluminum Spacer Bar Bending Machine Insulating Glass 6



9.The special machine hand device is used to bend big spacer frame

w5.5mm Aluminum Spacer Bar Bending Machine Insulating Glass 7



w5.5mm Aluminum Spacer Bar Bending Machine Insulating Glass 8



Related Product

Butyl Extruder Machine LJTB 03

w5.5mm Aluminum Spacer Bar Bending Machine Insulating Glass 9

Main feature

• PLC control system, touch screen interface

• Frequency control system

• Arc frame coating structure

• Imported pneumatic and hydraulic supercharging system

• Automatic centering and clamping structure

• Loading capacity up to 14KG, saving time for feeding glue

• Adopt five steps to control convey

• Preheating function,glue cylinder limit function,alarm system

• Covey and gluing mechanism adopts the latest design

Technical data



Squeeze pressure 10-18MPa
Temperature 110~140℃
Aluminum spacer width 6A-27A
Speed 0-40m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Air pressure ≥0.6MPa
Total power 380V, 5KW,50HZ
Dimension 2600×680×1100mm(L×W×H)
weight 650kg

Sealant-spreading Machine LJST02A

w5.5mm Aluminum Spacer Bar Bending Machine Insulating Glass 10

Main feature

• Imported motor system to improve equipment efficiency

• Imported sealant gun,stainless steel mixer

• High pressure protect device

• Anti-back flow control structure

• Mixed rate detector can control the rate of two kinds of glue

Technical data



Working air pressure 0.3-0.6MPa
Sealant spreading pressure 15-20MPa
Sealant volume 4L/min
Diameter of A/B sealant 570mm/280mm
Sealant spreading air pressure ratio 50:1
Mixed rate 6:1-14:1
Air supply Flow 0.8m3/min
Air pressure ≥0.8MPa
Overall dimension 1100*950*1630mm
