Product Details:
|
| Certification: | CE | Production Name: | Automatic Aluminum Spacer Edge Bending Machine |
|---|---|---|---|
| Max Spacer Size: | 2000mm*2000mm | Min.bending Machine: | 150*250mm |
| Spacer Types: | Aluminum Space/warm Edge Spacer | Servo Motor: | Servo Motor |
| Machine Type: | Beading Machine, | Usage: | Aluminum Spacer Bar Bending, Bend Aluminum Spacer Bar Into Required Shape |
| Automation: | Automatic | Aluminum Spacer Width: | 6-27A |
| High Light: | 27A Aluminum Spacer Bending Machine,6A Aluminum Spacer Bending Machine,27A Bar Arch Bending Machine |
||
High Quality portable aluminum spacer bar arch bending machine
Overview of fully automatic bar bending machine
Double glazing is made up of two or more float glasses, an argon desiccant and an aluminum frame. Primary seal (butyl) and secondary seal (polysulfide or structure) between double glazing and aluminum frame. When coated with Low-E film, the insulating glass is effectively protected by radiation.
Technical Data of Automatic Aluminum spacer bending machine
|
Max. bending size
|
2000mm*2000mm |
|
Min. bending size
|
250mm*180mm |
|
Aluminum spacer width
|
6A - 27A |
| Spacers racks | 4 Racks |
|
Spacer size error
|
±0.5mm |
|
Angle error
|
±1° |
|
Processing speed
|
< 25s (1000mm*1000mm) |
|
Air supply
|
≥0.65MPa |
| Voltage | 380V50Hz 3P |
| Total power | 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |

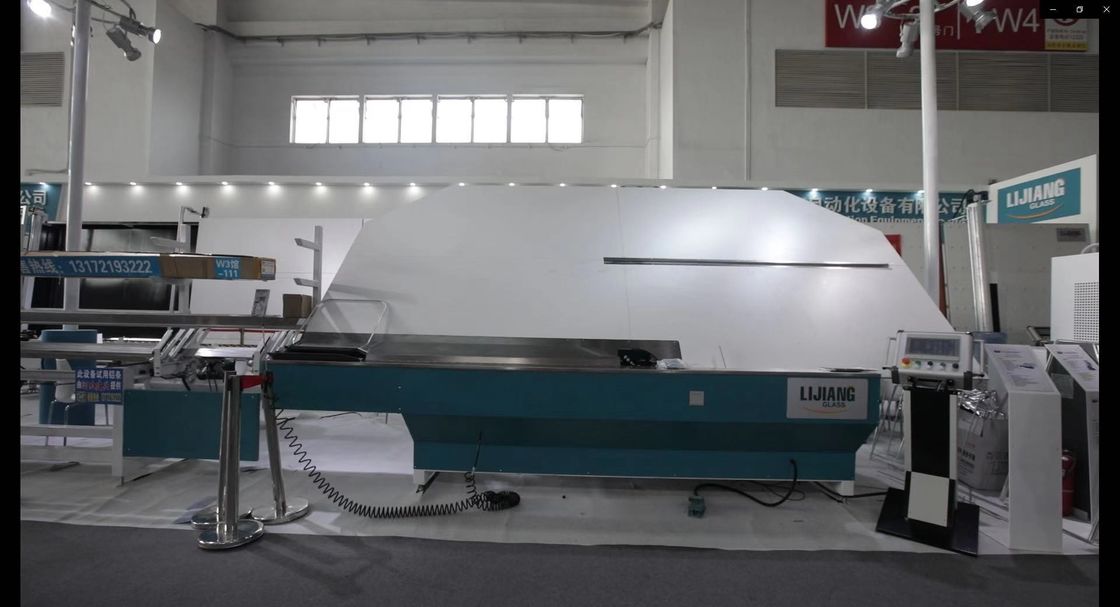

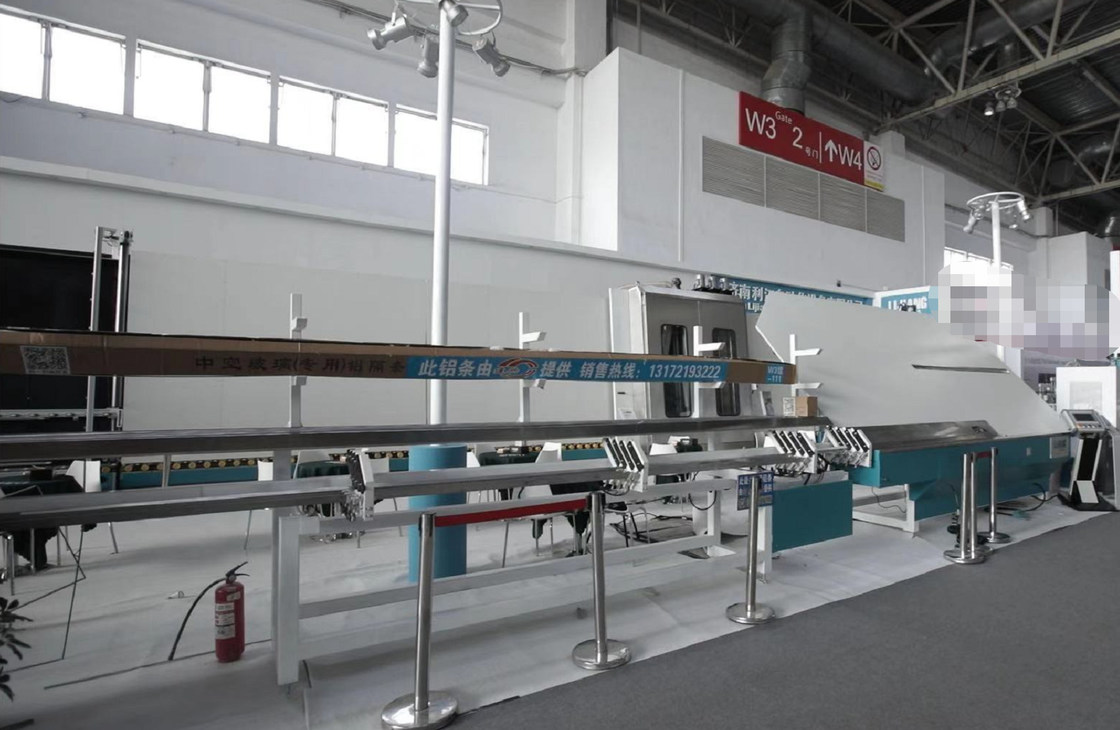

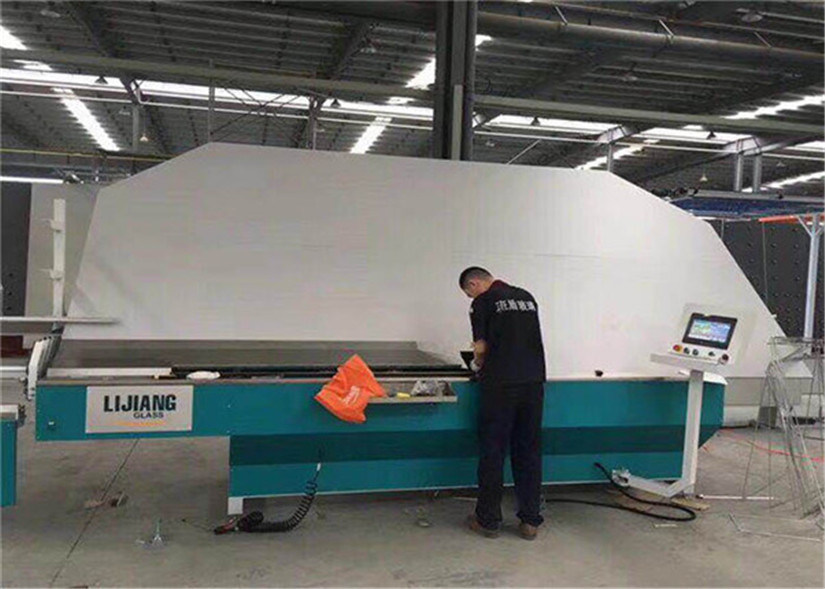

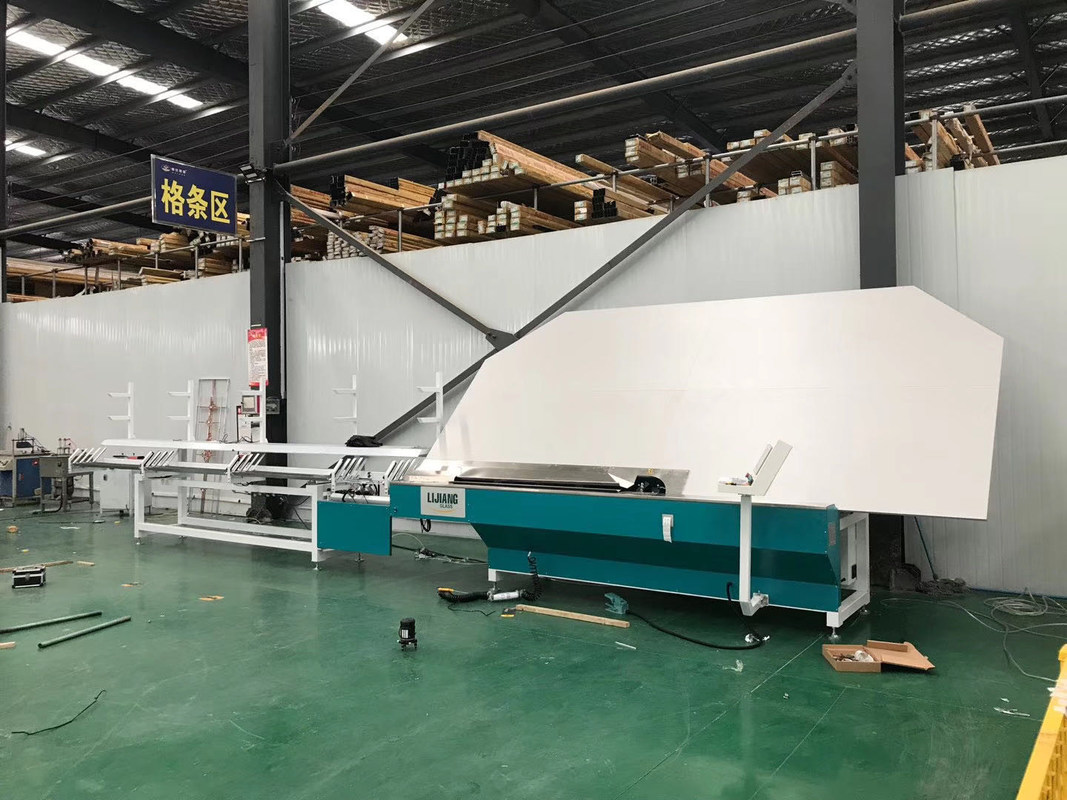

Detail of Automatic Aluminum spacer bending machine
1.Siemens 1200PLC control system with fast working speed.German siemens plc control system,touch screen interface.
2.Automatic Aluminum spacer bending machine have Four or Twelve different spacer size storage units can choose
3.Automaticlly cut and feed Aluminum spacers
4.Heavy duty connectors ,convenience and safety for installation and debugging
5. Aluminum spacers are available in different specifications and in sizes of 6A-27A.
6.Support continuous bending , it automatically avoid spacer -connection while bending and cutting
7.Automatic spacer bending machine can bend aluminum spacer /technoform /Alupro /swisspacer/ stainless steel /thermix (optional)
8.The special machine hand device is used to bend big spacer frame
9.USB input function ,it can read the excel data directly
10.Spare parts of all machine have ID code ,convenient for after-sale service
Features of Aluminum Spacer Bar Bending Machine
• Siemens 1200 PLC control system, fast working speed
• 4 or 12 sets of spacers
•Bending aluminum gasket, smooth stainless steel, warm gasket
•Continuously curved spacer frame
• Automatically avoid overhead nails when bending and cutting
•Automatically cut and feed aluminum gasket
•The size of aluminum gasket is 6A-27A
• Suspend and reset equipment to handle equipment failures
• Different bending tools for different size gaskets
•USB input function, directly read excel format files
Optional function
• Connect to the ERP system
• Drill holes

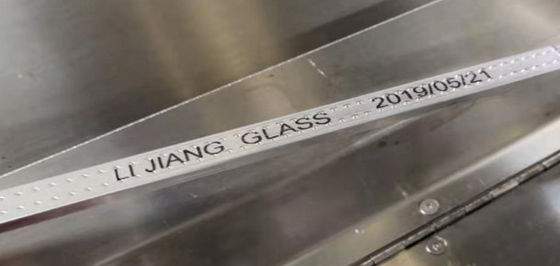

•Print code
• Print labels
• Curved shape frame. Use round wheels to bend round frames or frames with rounded corners. Minimum R60, maximum R150, gasket size: 6A-16A). Different size aluminum bars require different size tools
Related Product
Smart Vertical Edge Deleting Machine LJCM2545
Main feature
• Two-way glass access
• Automatically measure the size
• Automatically distinguish low-e surfaces
• The head can rotate 360 °
• Safe and fully automatic device
• PLC control system, touch screen interface
• 6 servo control systems
• Adjustable edge removal
• Intelligent control system can recognize batch processing
Technical data
| Max. glass processing size | 2500*4500mm |
| Min. glass processing size | 400*280mm |
| Glass thickness | 3-15mm |
| Diameter of grinding wheel | 200mm |
| Conveyor height | 500mm |
| Edge deleting width | 10-50mm |
| Transmission speed | 1. 29m/min |
| Edge deleting speed | 2-29m/min |
| Abrasive wheel width | 10/12/15mm |
| Glass thickness | 3 - 15mm |
| Grinding wheel speed | 0~3000r/min |
| Total air consumption | 100L/ min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50Hz 3.35KW |
| Dimension | Dimensions :9700×2500×3400mm |
| Total weight | 3700KG |
Electrical parameters
| NAME | ORIGIN | BRAND |
| Servo motor | Taiwan | TAIDA |
| PLC | Taiwan | TAIDA |
| Pneumatic component | Taiwan | AAIRTAC |
| Low pressure electricity | Germany | SIEMENS |
| Circuit breaker | Germany | SIEMENS |
| Sensor switch | Korea | AUTONICS |
| Approach switch | Korea | AUTONICS |
| Limit switch | Taiwan | TEND |
| Connector | Germany | SIEMENS |
| Frequency converter | France | SCHNEIDER |
| Main Button | France | SCHNEIDER |
| Intermediate relay | Japan | OMRON |
