Product Details:
|
| Production Name: | Automatic Spacer Edge Bending Machine | Max Spacer Size: | 2000mm*2000mm |
|---|---|---|---|
| Spacer Types: | Aluminum Space/warm Edge Spacer | Servo Motor: | SIEMNES Servo Motor |
| Machine Type: | Beading Machine, | Usage: | Aluminum Spacer Bar Bending, Bend Aluminum Spacer Bar Into Required Shape |
| Certification: | CE | Automation: | Automatic |
| High Light: | 4 Racks Spacer Edge Bending Machine,Glazing Glass Spacer Edge Bending Machine,4 Racks metal bar bender |
||

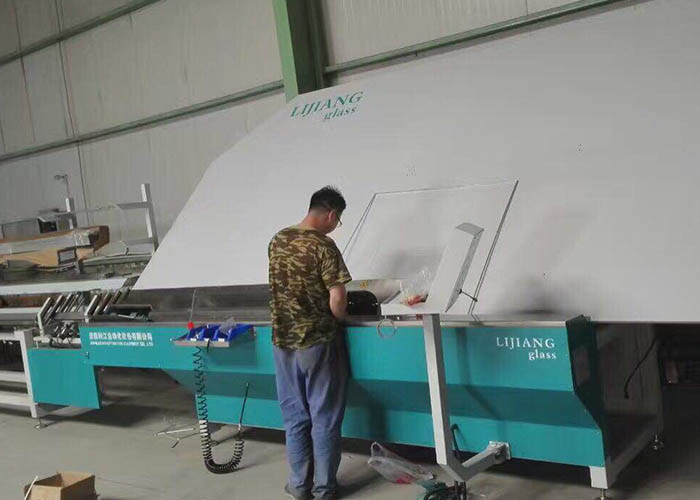

Automatic Spacer Bending Machine for Double Glazing Glass Processing
Overview of Spacer Edge Bending Machine
Insulating glass is made by 2pcs or more float glasses which filled with desiccant of Argon gas with Aluminum frame.Primary seal(butyl)between insulating glass and Aliminum frame, secondry seal(polysulfide or structure). Insulating glass will be effectively protect radiation when coated Low-E film.
Technical Data of Automatic spacer bending machine
|
Max. bending size
|
2000mm*2000mm |
|
Min. bending size
|
250mm*180mm |
|
Aluminum spacer width
|
6A - 27A |
| Spacers racks | 4 Racks |
|
Spacer size error
|
±0.5mm |
|
Angle error
|
±1° |
|
Processing speed
|
< 25s (1000mm*1000mm) |
|
Air supply
|
≥0.65MPa |
| Voltage | 380V50Hz 3P |
| Total power | 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Detail of Aluminum spacer bending machine
1.German siemens plc control system,touch screen interface.
2.Four or Twelve different spacer size storage units can choose
3.Heavy duty connectors ,convenience and safety for installation and debugging
4. Aluminum spacers are available in different specifications and sizes
5.Support continuous bending , it automatically avoid spacer -connection while bending and cutting
6.The special machine hand device is used to bend big spacer frame
7.Automatic spacer bending machine can bend aluminum spacer /technoform /Alupro /swisspacer/ stainless steel /thermix (optional)
8.USB input function ,it can read the excel data directly
9.Spare parts of all machine have ID code ,convenient for after-sale service
Features of Aluminum Spacer Bending Machine
• Siemens 1200 PLC control system with fast working speed
• 4 or 12groups of spacer racks
• Bend spacer frames continuously
• Automatically avoid the pins while bending and cutting
• Automatically cut and feed aluminum spacers
• Aluminum spacers are available in sizes of 6A-27A
• Pause and Reset device for handling equipment failures
• Bend aluminum spacer, smooth stainless steel, warm spacer
• USB input function, read the excel format file directly
• Different bending tools for different sizes of spacers
Optional functions
• Connect to ERP system
• Drill holes
• Printing code
• Printing label sticker
• Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A). Different sizes of aluminum bars require different size tools
Related Product of LIJIANG GLASS Insulating glass machiery equipment manufacture
Product overview of Insulating Glass sealing robot
Insulated Glazing Unit silicone spreading robot can apply the mixed sealant evenly to the outer channel of the insulating glass through the servo mechanism to help the sealing and bonding performance of the insulating glass.It is an important link in the manufacture of hollow glass.
Main feature of IGU sealing machine
1.Adopt 8 sets Japan ANCHUAN servo motors
2.The glass corners are full without air bubbles, smooth surface, no corner trimming required
3. Equipped with single A component and single B component. Glue A and B automatic mixing, automatic ratio.
4.Glue system can be selected
One Set of Glue System Equipped with single A component and single B component.
Two Sets of Glue Systems Equipped with two sets of A components and two sets of B components, which can be used for two kinds of different sealants, such as silicone rubber, polysulfide rubber, silicone structural adhesive and so on.
