Place of Origin:
China
Brand Name:
Lijiang
Certification:
CE
Model Number:
KX4
glass vacuum lifting equipment for glass factory vacuum lifts hoists

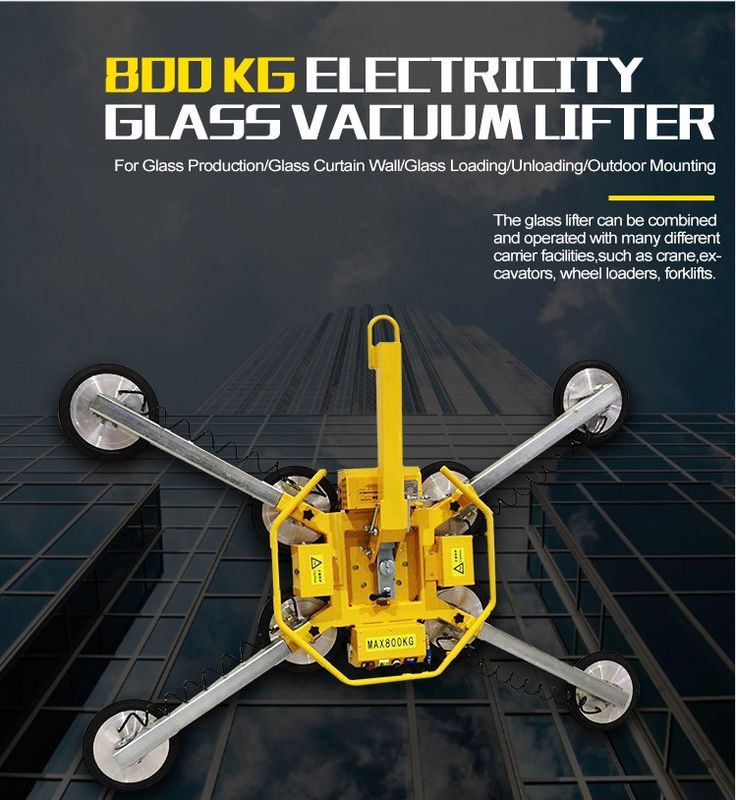

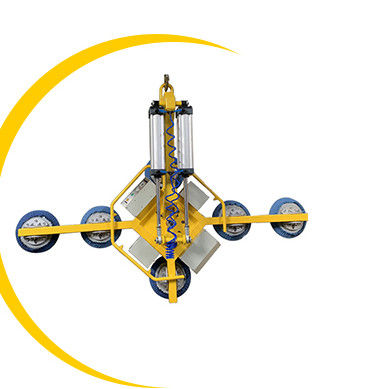

Vacuum glass electric suction cup lifter KX4
Vacuum glass electric suction cup lifter KX4
Manual rotation: 360° edgewise, with locking at each quarter point.
Manual tilt: 90° between upright and flat, with automatic latching in upright position.
| Product features of glass vacuum suction cups lifters |
1. The vacuum glass lifter is for handling glass plates.
2. Maximum glass lifter. Capacity 200 kg. 400 kg. 600kg.800kg (including safety factor 4.0).
3. Vacuum pumps, valves, switches, and some important spare parts imported from abroad.
4. Stable performance, easy to maintain, efficient, safe, quick and easy.
5. The material of the suction pad is NBR (oil resistance, skid resistance, corrosion resistance), which enables effective vacuum suction and vacuum generation of steel.
6. The suction pad is adjustable and can be turned off or opened individually.
7. The vacuum lifter is equipped with a buzzer and warning light unit, which immediately turns off the optical and acoustic signals in the event of a power outage or vacuum leak, alerting the operator to perform an emergency operation.
8. The vacuum lifter is equipped with a safety tank and pressure switch warning to prevent the workpiece from falling for 30 minutes at all times if the power is suddenly turned off.
9. Our vacuum lifter design has been passed to EUCE. CE identification product.
Useing For
- Insulating Glass Production line,
- Installing Glass Curtain Wall System,
- Loading and Unloading glass sheet on glass cutting table,
- Instaling car windscreen.

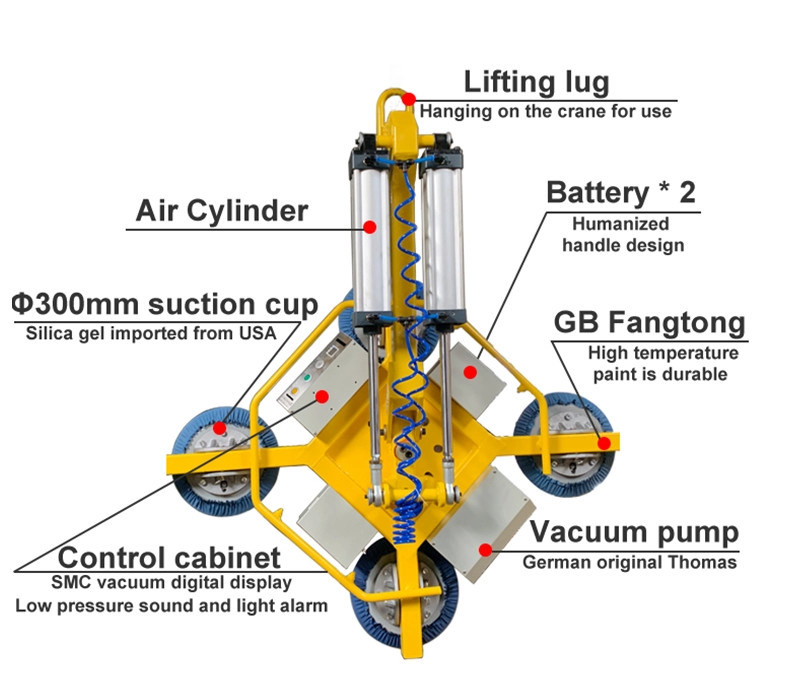

l The sealing cover protects safe and reliable components. Copper is usually plated with a bridge crane for deep glass processing and processing. Alternatively, a cantilever crane is used for copper plating for the installation of glass curtain walls.
l Adjustable, the suction cups can be repositioned to absorb different shapes and sizes of glass (can also be customized according to the size of the glass)
l Manually rotate 360 ° vertically and 90 ° horizontally manually, but can be electrically picked and placed
l Uses American THOMAS vacuum pump and high quality maintenance-free battery, no air source or power supply required for use.
l Japanese Panasonic Digital Display Vacuum Pressure Switch, Battery Fuel Gauge, Clear Monitoring for Safe Use.
l Equipped with an automatic vacuum pressure supply system to ensure that the entire vacuum system is maintained at a relatively constant safe pressure value when handling glass.
l There is a power failure, but it is equipped with a pressure holding device and an alarm device. Even if an unexpected power failure occurs, the pressure holding function extends the processing time and allows safe use.
l Equipped with a 12V backup battery that can be replaced in time to ensure the progress of the project.
