Automatic Cantilever Crane Glazing Lifting Equipment Loading 600kgs 800kgs 1000kgs Glass Vacuum Suction Cups Lifters

Large Image : Automatic Cantilever Crane Glazing Lifting Equipment Loading 600kgs 800kgs 1000kgs Glass Vacuum Suction Cups Lifters

Product Details:

Place of Origin:	Jinan City, Shandong Province, China
Brand Name:	Jinan Lijiang Glass Machinery
Certification:	CE & ISO9000
Model Number:	Automatic Horizontal Insulating Glass Heating Roller Press Machine LJRY2500 Glass Crane

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Discussible
Packaging Details:	Wooden Cases Package
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Contact Now

Automatic Cantilever Crane Glazing Lifting Equipment Loading 600kgs 800kgs 1000kgs Glass Vacuum Suction Cups Lifters

Description

Dimension(LWH):	296017001200	Certification:	CE & ISO9000
Warranty:	1 Year	Weight:	1540Kg
Power:	25.5Kw	Horizontal Rotation:	360degree
Vacuum Pressure:	>0.5bar	Color:	Customer Opitional
Highlight:	1000kg Glass Lifting Crane , Roller Press Glass Lifting Crane , 1000kg glass lifter machine

Big Size of Automatic Horizontal Insulating Glass Heating Roller Press Machine LJRY2500 and Glass Crane by max 1000kg

Insulating Glass Heating Press Machine(horizontal type)LJRY2500

1.Main features

1) Transmission adopts changeable frequency speed adjustment according to environment spot, the speed is adjustable freely to improve efficiency.

2) High efficiency power-saving design; control working temperature automatically.

Brand name	LIJIANG
Model	LJRY2500
Power voltage:	380V 50Hz
Total power:	22.75 KW
Max Glass Size:	2500*3000mm
Process thickness:	≤50mm
Glass carry speed:	1-5m/min
Overall dimmension	295021501200mm(mm)/295021501200mm/29502500900mm
Weight	1500kg

Customization Glass Cantilever Crane with four lifting suckers 1000KG LJXJ1000

Main Features

It can select DC chaging vacuum pump,equipped with battery device.

-Maximum bearing capacity is 1000kgs (10 vacuum cups), Max. Glass size can reach to 8m (The lifter with post can reach 3.9 meter)

-suitable for high-temperature glass

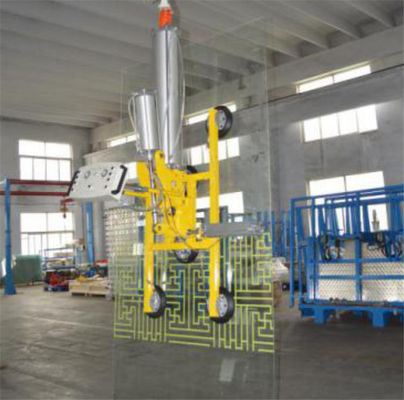

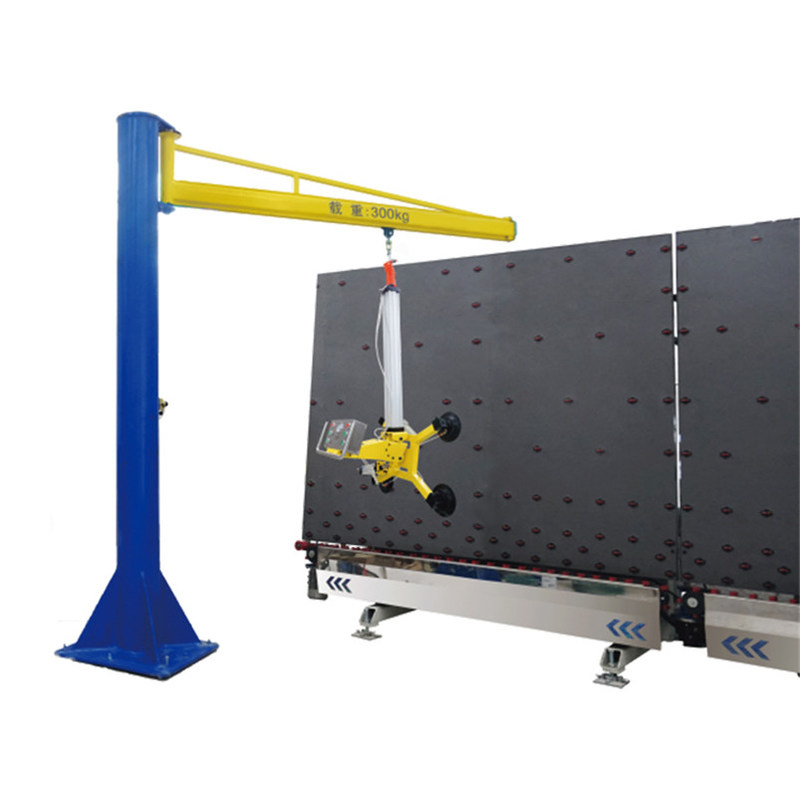

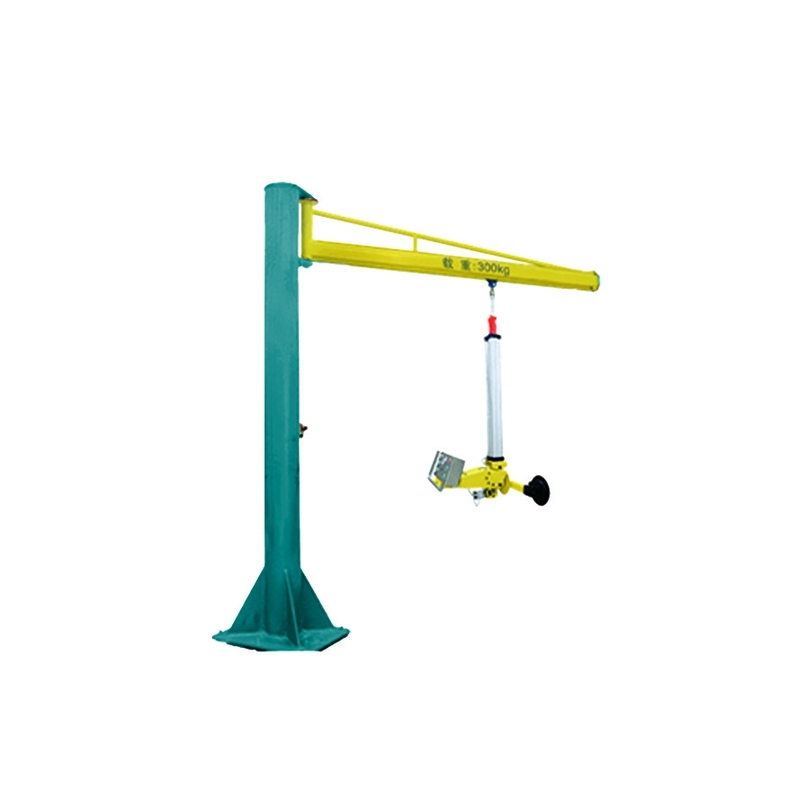

Glass Cantilever Crane with lifting sucker

1. This vacuum glass lifter is for handling insulating glass sheet.

2. This glass lifter is able to lift the glass sheet with 1000kg

3. It is equip with 5 suckers. But the sucker can be add according to need of the client.

4. The equipment is Stable, Easy to use and safe.

5. The vacuum lifter is equipped with a warning light in case of a power failure or vacuum leakage, an optical and an acoustic signal goes off immediately to warn the operator to do emergency operation.

Features & Advantages

●Mechanical part: (1) The total length of the main beam of the suction hoist is designed to be 2000mm, and the upper part of the middle part is welded and sealed with a plate, and the middle part is used as a vacuum accumulator. The air tightness test is carried out after welding to ensure no leakage. When the equipment is suddenly powered off, it is still guaranteed to be able to reliably adsorb the plates for at least 20 minutes, and will not cause safety accidents such as equipment damage (the European CE standard is to maintain 10 minutes) (2) This equipment is equipped with 6 suction cups with a diameter of 360mm for different sizes of glass. The position of each suction cup on the beam is adjustable to

facilitate the adsorption of glass of different sizes.

●Electrical part:

(1) A vacuum pressure switch and a buzzer alarm unit are installed on the vacuum hoist. When the vacuum system pressure does not reach the set pressure, or when a power failure occurs, the alarm unit will control the red warning light to light up and the buzzer to sound. , Prompt the operator to deal with it in time.

●Vacuum part:

(1) The suction hoist adopts a German oil-free rotary vane vacuum pump, with a pumping capacity of 8m3/h, a large vacuum degree of over 85%, energy saving, compact and lightweight, no maintenance, etc.;

(2) The whole set of equipment is equipped with 6 vacuum suction cups, multi-point adsorption to ensure that the plate can maintain a high level during the handling process without tilting;

(3) The suction cup material is nitrile rubber, with a diameter of 360mm, oil (benzene), durable, acid and alkali resistance, and can effectively adsorb with FRP to produce a true single suction cup level. Theoretical large suction force = effective area (physical product * coefficient) * calculated pressure (0.6bar); (0.18*0.18*3.14)*0.6*10000=610.416, which is approximately 610.4Kg. According to the 4 times safety factor, the actual allowable suction power of the suction cup is 610.4/4=152.6Kg. The total suction power of 6 suction cups is 600kg. Note: The vacuum suction force mentioned in the above table is calculated under 60% vacuum degree. Under normal working conditions, the system vacuum degree can reach more than 85%; (4) The vacuum pressure sensor is made of Japanese Panasonic brand, and the alarm pressure level is set to 60% vacuum; (5) Each suction cup is equipped with a manual ball valve to control the opening and closing, which ensures that the same equipment can be applied to various specifications of plates; (6) The upper and lower parts of the sucker rod are equipped with a spring. When the plate is not flat, the spring acts as a buffer to make the sucker evenly stressed, so as to ensure the safety and reliability of the suction cup. ● Overall 2. According to the European Union DIN EN 13155 vacuum system design for the outdoor building curtain wall installation site. 3. Horizontal handling, electric flipping and vertical handling. 4. Flexible design, can be applied to the handling of different sizes of FRP.

Features & Advantages

●Mechanical part: (1) The total length of the main beam of the suction hoist is designed to be 2000mm, and the upper part of the middle part is welded and sealed with a plate, and the middle part is used as a vacuum accumulator. The air tightness test is carried out after welding to ensure no leakage. When the equipment is suddenly powered off, it is still guaranteed to be able to reliably adsorb the plates for at least 20 minutes, and will not cause safety accidents such as equipment damage (the European CE standard is to maintain 10 minutes) (2) This equipment is equipped with 6 suction cups with a diameter of 360mm for different sizes of glass. The position of each suction cup on the beam is adjustable to facilitate the adsorption of glass of different sizes. ●Electrical part: (1) A vacuum pressure switch and a buzzer alarm unit are installed on the vacuum hoist. When the vacuum system pressure does not reach the set pressure, or when a power failure occurs, the alarm unit will control the red warning light to light up and the buzzer to sound. , Prompt the operator to deal with it in time. ●Vacuum part: (1) The suction hoist adopts a German oil-free rotary vane vacuum pump, with a pumping capacity of 8m3/h, a large vacuum degree of over 85%, energy saving, compact and lightweight, no maintenance, etc.; (2) The whole set of equipment is equipped with 6 vacuum suction cups, multi-point adsorption to ensure that the plate can maintain a high level during the handling process without tilting; (3) The suction cup material is nitrile rubber, with a diameter of 360mm, oil (benzene), durable, acid and alkali resistance, and can effectively adsorb with FRP to produce a true single suction cup level. Theoretical large suction force = effective area (physical product * coefficient) * calculated pressure (0.6bar); (0.18*0.18*3.14)*0.6*10000=610.416, which is approximately 610.4Kg. According to the 4 times safety factor, the actual allowable suction power of the suction cup is 610.4/4=152.6Kg. The total suction power of 6 suction cups is 600kg. Note: The vacuum suction force mentioned in the above table is calculated under 60% vacuum degree. Under normal working conditions, the system vacuum degree can reach more than 85%; (4) The vacuum pressure sensor is made of Japanese Panasonic brand, and the alarm pressure level is set to 60% vacuum; (5) Each suction cup is equipped with a manual ball valve to control the opening and closing, which ensures that the same equipment can be applied to various specifications of plates; (6) The upper and lower parts of the sucker rod are equipped with a spring. When the plate is not flat, the spring acts as a buffer to make the sucker evenly stressed, so as to ensure the safety and reliability of the suction cup. ● Overall 2. According to the European Union DIN EN 13155 vacuum system design for the outdoor building curtain wall installation site. 3. Horizontal handling, electric flipping and vertical handling. 4. Flexible design, can be applied to the handling of different sizes of FRP.

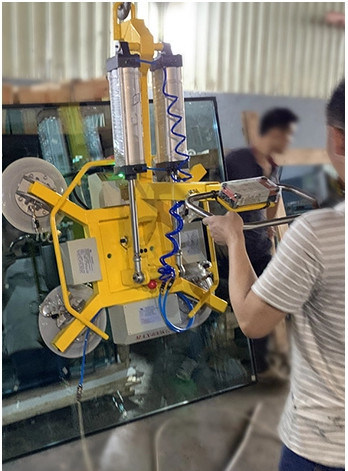

Pneumatic glass handing manipulator is operated by using compressed air. The device does not use electricity and is safe and reliable, easy to operate. It is an essential glass handling tool for a modern glass processing industry. The air flowing through the vacuum generator causes Vacuum Pressure to suck the glass.

A cylinder stroke is acted by receiving the command signal from the compressed air in an inlet pipe. The device is commonly used for glass loading and unloading work in glass factory processing lines, such as grinding, cleaning, tempered, laminated, insulated, etc.
