Place of Origin:
China
Brand Name:
Lijiang
Certification:
CE
Model Number:
KX4

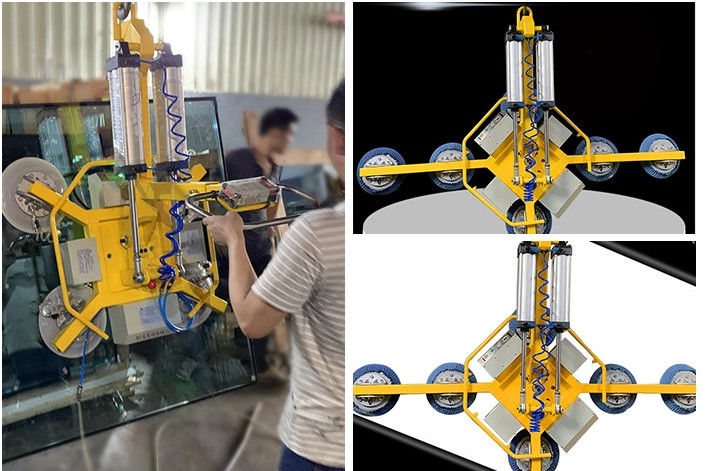

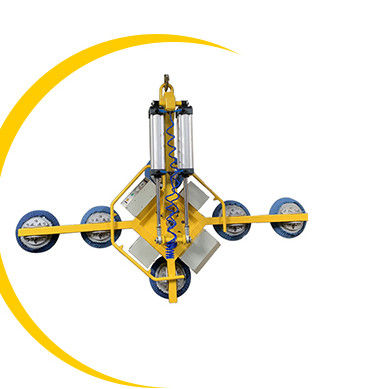

Vacuum glass electric suction cup lifter KX4
Vacuum glass electric suction cup lifter KX4
Manual rotation: 360° edgewise, with locking at each quarter point.
Manual tilt: 90° between upright and flat, with automatic latching in upright position.
1. The vacuum glass lifter is for handling the glass sheet.
2. Glass lifter max. carrying capacity 200kg. 400kg. 600kg.800kg ( a safety factor 4.0 include).
3. The vacuum pump, valve, switch and some important spare parts we are import from oversea.
4. Stable performance, easy to maintain, efficient, safe, quick, easy.
5. The material of suction pad is NBR (oil resistance,skid resistance, corrosion resistance) , Be able to effectively and steel vacuum suction and produce vacuum.
6. The suction pad can be adjustable, can be turned off and open individually.
7. The vacuum lifter is equipped with a buzzer and warning light units, in case of a power failure or vacuum leakage, an optical and an acoustic signal goes off immediately to warn the operator to do emergency operation.
8. The vacuum lifter is equipped with safety tank&Pressure switch warning, when the power is turned off in sudden, always can keep the work piece not falling down for 30 minutes.
9. The design of vacuum lifter by our company is passed to EU CE passed.It is CE identification product.
Glass Cantilever Crane with lifting sucker
1. This vacuum glass lifter is for handling insulating glass sheet.
2. This glass lifter is able to lift the glass sheet with 800kg
3. It is equip with 5 suckers. But the sucker can be add according to need of the client.
4. The equipment is Stable, Easy to use and safe.
5. The vacuum lifter is equipped with a warning light in case of a power failure or vacuum leakage, an optical and an acoustic signal goes off immediately to warn the operator to do emergency operation.
Parameters:
| Max Glass weight | 500KG | |
| Rotation angle |
Rotate 90 ° Flip 90° |
Left and Right Up and Down |
| Suction cups | 6 Pieces | |
| Cup Materials | Silicone | |
| Sliding method | Manual | |
| Column height | 4 meters | Gas storage function |
| Arm length | 4 meters | |
| Air Control parts | Airtac |
| Max Glass weight | 400KG | |
| Rotation angle |
Rotate 90 ° Flip 90° |
Left and Right Up and Down |
| Suction cups | 2 pieces | |
| Cups Materials | Silione | |
| Sliding method | Manual | |
| Column height | 4 meters | Gas storage function |
| Arm length | 4 meters | |
| Air control parts | Airtac |
Useing For
- Insulating Glass Production line,
- Installing Glass Curtain Wall System,
- Loading and Unloading glass sheet on glass cutting table,
- Instaling car windscreen.
