Product Details:
|
Name: | Aluminum Spacer Cutting And Bending Machine | Spacer Width: | 6A To 27A |
---|---|---|---|
Spacer Type: | Aluminum Spacer | Spacer Racks: | 4 Sets For Different Sizes Of Spacers |
PLC: | Siemens | Operating: | Automatically |
Warranty: | 1 Year | ||
High Light: | 6A Aluminum Spacer Bending Machine,0.65MPa Aluminum Spacer Bending Machine,PLC spacer bar bending machine |

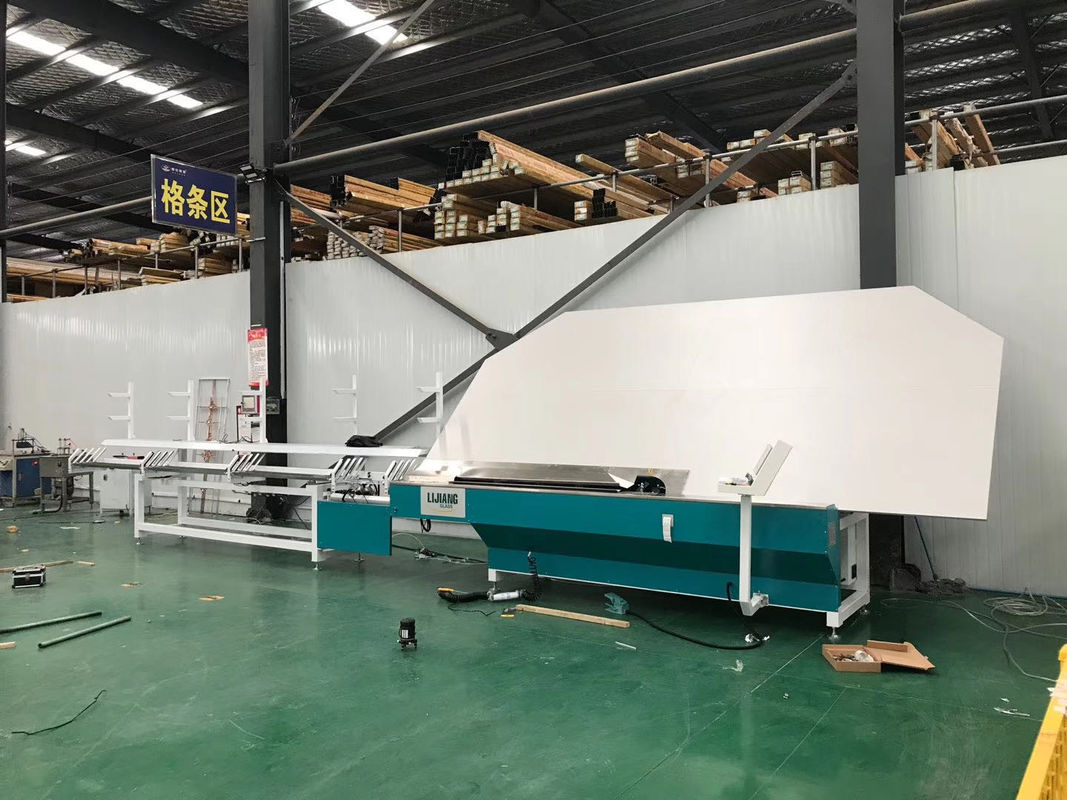

Automatically PLC Controlled Aluminum Spacer Bars Cutting And Bending Machine
Main features of the automatic spacer bending machine :
• High working speed Siemens 1200 PLC control system
• 4 groups of storage (2 or 12 groups of storage is optional)
• Automatically cut and feed aluminum spacers
• Automatically avoid pins when bending or cutting
• Bend the spacer frame continuously
• Aluminum spacers are available in sizes 6A-27A
• Different bending tools for different spacer sizes
• Suspend and reset the device to handle equipment failures
• Bent aluminum spacer, smooth stainless steel, warm spacer
• Connect to ERP system (optional)
• USB input function, directly read Excel format files

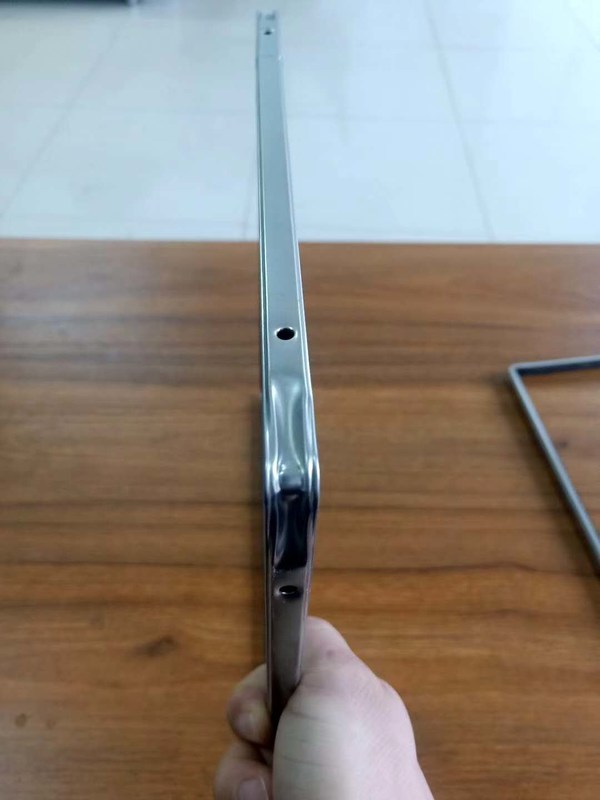

• Automatically drills holes for filling with argon gas (optional)
• Spacer print code function (optional)

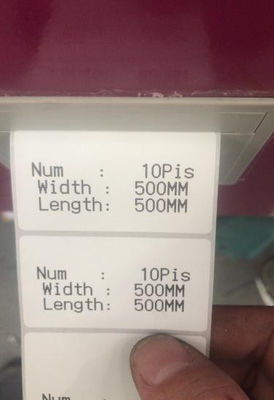

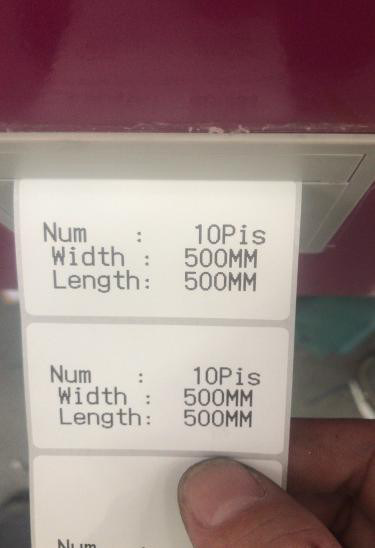

• Printing of label sticker function (optional)

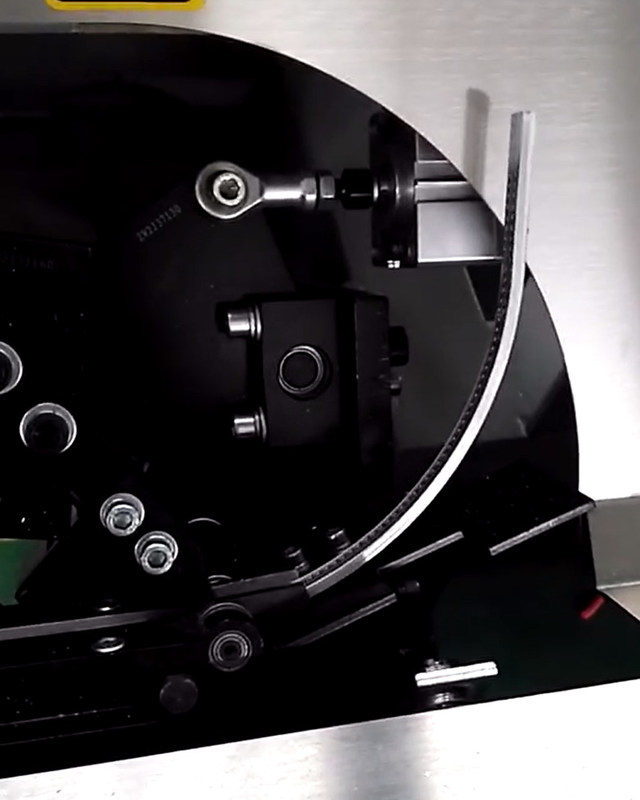

• Bent shape frame. Use the circle wheel device to bend a circle frame or a frame with circle corners. Minimum R60, maximum R150, spacer size: 6A to 16A). Different sized aluminum bars require different sized tools (optional)
Technical data of spacer bending machine :
Max. bending size | 2000mm*2000mm |
Min. bending size | 250mm*200mm |
Aluminum spacer width | 5.5-27mm |
Dimensional error | ±0.5mm |
Angle error | ±1º |
Processing speed | 17s |
Air supply | ≥0.65MPa |
Total power | AC220/380V 50Hz 2.5KW |
Dimension | 10500mm*2200mm*2600mm |
Electrical parameters of spacer bender machine :
NAME | ORIGIN | BRAND |
PLC | Germany | SIEMENS |
Servo driver | Germany | SIEMENS |
Servo motor | Germany | SIEMENS |
Low voltage component | Germany | SIEMENS |
Triplet | Taiwan | AIRTAC |
Cylinder | Taiwan | AIRTAC |
Relay | Japan | OMRON |
Sensor | KOREA | AUTONICS |
Touch screen | Taiwan | WEINVIEW |
Guide | Taiwan | TBI |
Solenoid valve | Taiwan | AIRTAC |
Switch power | Taiwan | TEND |
