2.5kw Spacer Bars Bender Machine With Touch Screen Servo Motor

Servo Motor Controlled Spacer Bars Bender Machine With PLC And Touch Screen

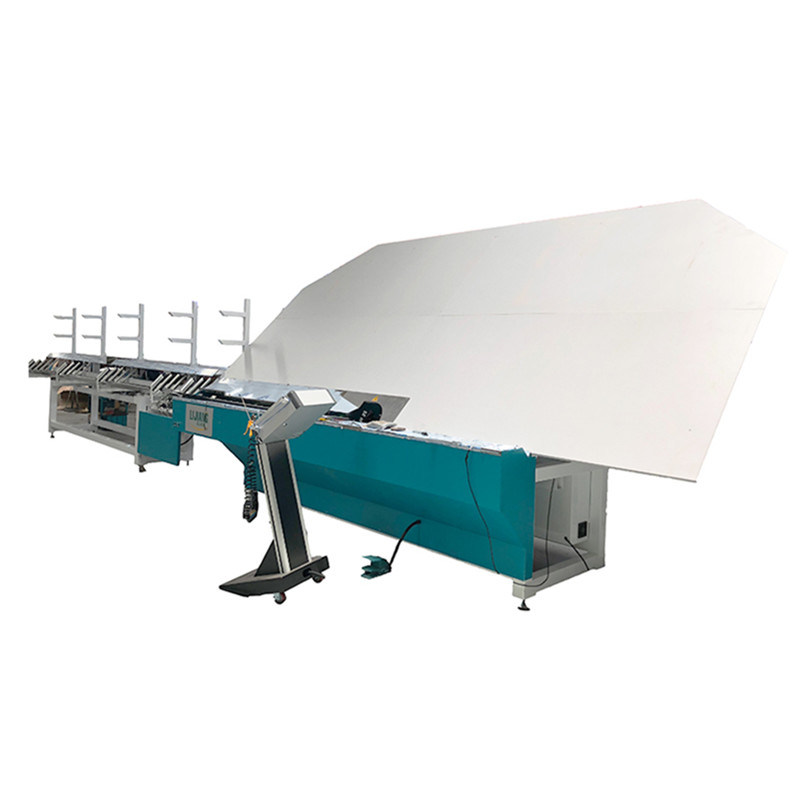

Automatic spacer bending machine is used for aluminum frame of insulating glass. Automatic aluminum spacer bending machine is controlled by PLC. By virtue of the mode of human-machine interactive data input on the touch screen, the facility can get the expected parameter data in different specifications of rectangular aluminum frames, or the convex polygon’s edge and corner data composed of arc-shaped section or straight flange not more than 8 edges. Simultaneously, acquire the quantity of the aluminum frames that are required to be processed, as well as the parameter of other control equipment in accurate operation, which essentially satisfy the required shapes of the current insulating glass.

Equipment body of bending machine is composed of body and frame, aluminum frame backplane, automatic feeding system, feeding system by servo, automatic breaking mechanism, automatic bending system, electrical control system, power control system, control cabinet and touch human-machine interface.

Main feature

• Siemens 1200 PLC control system with fast working speed

• 4 groups of storages (2 or 12 groups of storages can be optional)

• Automatically cut and feed aluminum spacers

• Automatically avoid the pins while bending and cutting

• Bend spacer frames continuously

• Aluminum spacers are available in sizes of 6A-27A

• Different bending tools for different sizes of spacers

• Pause and Reset device for handling equipment failures

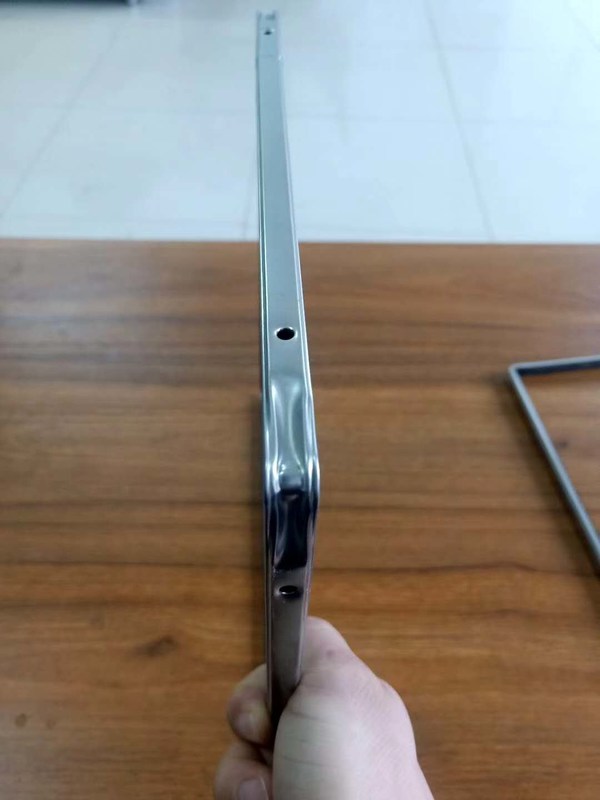

• Bend aluminum spacer, smooth stainless steel, warm spacer

• Connect to ERP system (Optional)

• USB input function, read the excel format file directly

• Automatically drill holes for filling argon gas (Optional)

• Spacer printing code function (Optional)

• Printing label sticker function (Optional)

• Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A). Different sizes of aluminum bars require different size tools(Optional)
