Place of Origin:
China
Brand Name:
Lijiang
Certification:
CE
Model Number:
LJZW2020

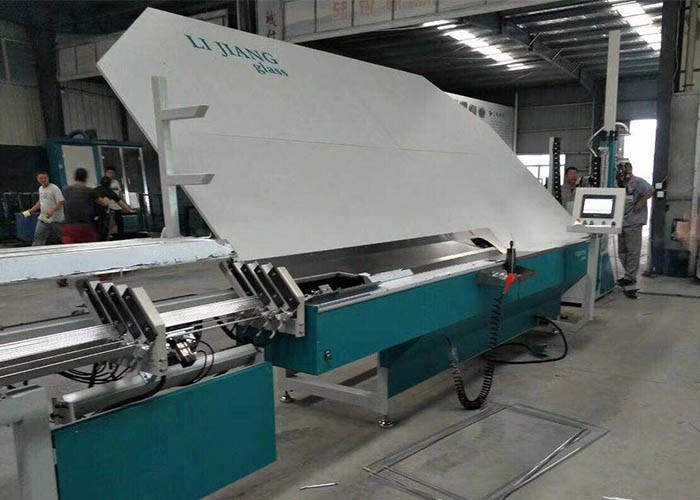

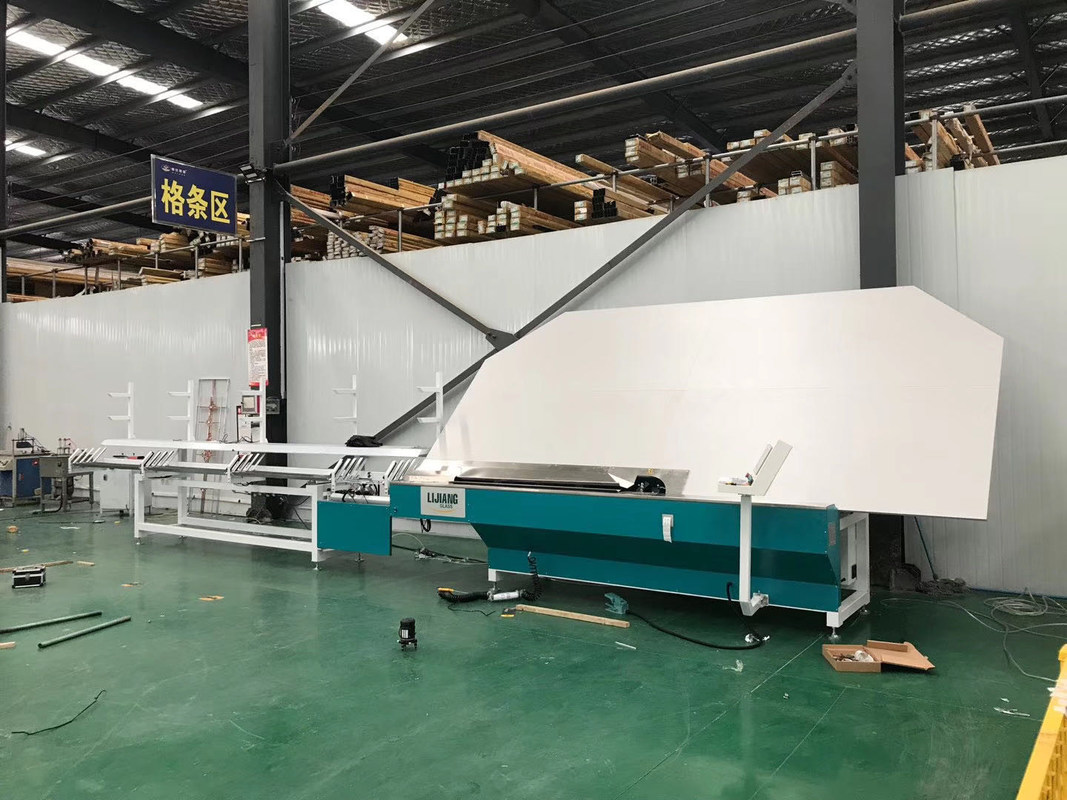

Automatic corrugated iron bending machine is a specialized equipment to replace the aluminum and glass frame to replace traditional fabrication technology. This device can create a variety of convex polygonal aluminum frames with an aluminum strip at once, thereby enhancing the strength of the aluminum frame, making the sealing effect of the insulating glass better.
Equipment details
Adopt Siemens PLC control system
There are 4 Siemens sermens.
It uses 4 sets of brackets which can store pads of different sizes. Use Siemens Servants to replace different brackets.
Aluminum gaskets are automatically cut and transported.
The cushions are continuously curved
Automatically prevents corners from connecting when folded or disassembled
Instead of snatching gaskets from below, the machine treats them from above, solving the classic flip problem.
It uses industrial computer technology that allows industrial computer workers to draw on the spot and fold drawn graphics directly.
Fold the wide gap frame with a special mechanical tool.
Technical data
| Max.bending size | 2000mm*2000mm (2500mm*2500mm) |
| Min.bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Leading Technology
Company Information
Electrical parameters
| NAME | BRAND | NAME | BRAND |
| PLC | GERMAN SIEMENS | Triplet | Taiwan AIRTAC |
| Low voltage electrical apparatus | GERMAN SIEMENS | Cylinder | Taiwan AIRTAC |
| Servo motor | GERMAN SIEMENS | Solenoid valve | Taiwan AIRTAC |
| Servo driver | GERMAN SIEMENS | Switch power | Taiwan TEND |
| Relay | JAPAN OMRON | TOUCH SCREEN | Taiwan WEINVIEW |
| Sensor | KOREA AUTONICS | GUIDE | Taiwan TBI |
