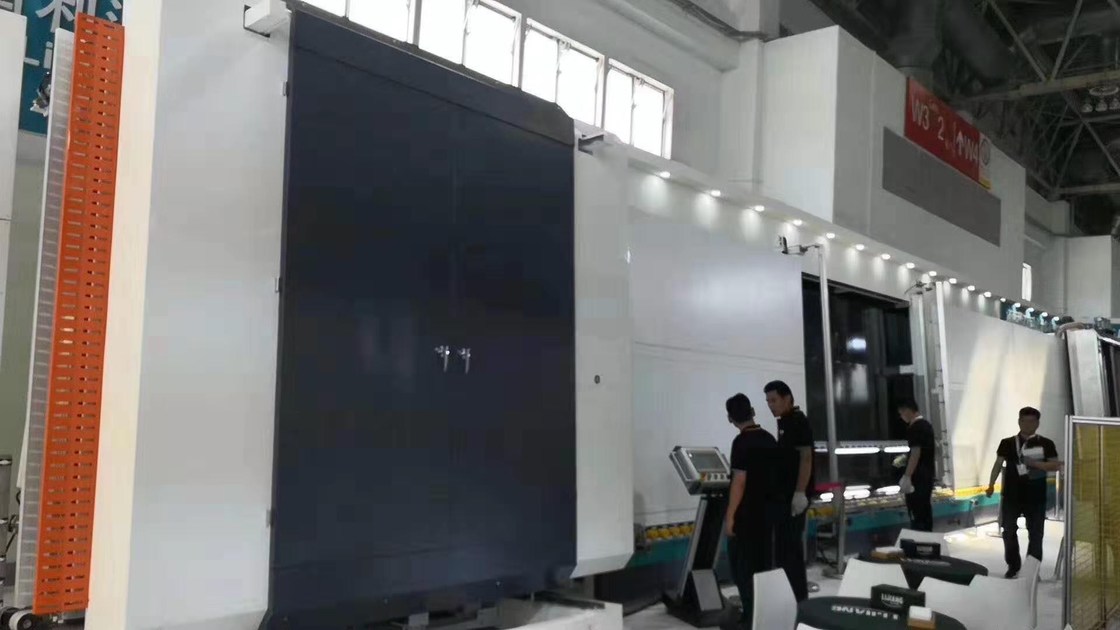

10m Insulated Glass Processing Line With Filling Argon Gas Online

10m Insulated Glass Processing Line With Filling Argon Gas Online
10m Insulated Glass Processing Line With Filling Argon Gas Online 10m Insulated Glass Processing Line With Filling Argon Gas Online

Large Image :  10m Insulated Glass Processing Line With Filling Argon Gas Online

Product Details:
Place of Origin: JINAN, CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJBZ2535G
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 60days
Supply Ability: 20 sets per month

10m Insulated Glass Processing Line With Filling Argon Gas Online

Description
Production Nam: Automatic Insulated Glass Processing Line Max Filling Gas Size: 2500*3200mm
Application: Double Glass , Triple Glass Control: PLC Control
Insulating Glass Thickness: 60mm Motor: Simens
Gas Content: >90%
High Light:

IG Insulated Glass Processing Line

,

Argon Gas Insulated Glass Processing Line

,

Automatic Double Glazing Fabrication Equipment

Automatic Insulated Glass Processing Line With Filling Argon Gas Online LJBZ2535G



Description of Automatic Insulated Glass Processing Line



Insulated Glass Processing Line main purpose is to create high-end quality, to provide customers with the latest production technology, improve production efficiency, save production costs and produce maximum benefits.



Main Features:



• Insulated Glass Processing has 7 sections: 01 transfer section; 02 washing machine; 03 discharge section; 04 inspection and installation section; 05 transfer section; 06 pressing and filling section; 07 discharge section

• Using Siemens servo motors

• PLC control system, touch screen interface

• Applicable to produce double glass, triple glass

• Step glass with optional edges and shaped glass





Details introduce of the Insulating glass line



01 transfer section

Automatic detection of offline Low-e film,Coating detection mechanism

10m Insulated Glass Processing Line With Filling Argon Gas Online 0

02 washing machine

10m Insulated Glass Processing Line With Filling Argon Gas Online 1



Advantages​:



• Using 3Pairs of soft brushes with 0.1mm soft hair, can wash low-e glass

• Pre-washing (Optional)

• The air knife can automatically adjust the width of the air knife according to the thickness

• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.

• The operation box with washing speed display, can accurately display washing speed (8-10m)

• Water tank automatic temperature control, water replenishing system

• European silencer system

• Stainless steel material



03 discharge section

• Storage glass



04 inspection and installation section

It is easy to inspect and wipe the glass.The new structure of this section is changed to an inline beam lifting structure (double beam).

10m Insulated Glass Processing Line With Filling Argon Gas Online 2









































05 transfer section

• It can be used according to actual needs when working.Automatic measurement of glass thickness.

10m Insulated Glass Processing Line With Filling Argon Gas Online 3



































06 pressing and filling section

10m Insulated Glass Processing Line With Filling Argon Gas Online 4

Advantages:



• Ultra-long (2500mm*3500mm) insulating glass can be compressed twice

• Adopts conveyor belt to transfer glass, uses servo motor to press glass

• The pressing plate can be opened for easy maintenance

• Pressing board with adjustable structure to guarantee long-lasting service life

10m Insulated Glass Processing Line With Filling Argon Gas Online 5

• Automatically fill argon gas with significant sealing effect, higher argon content



10m Insulated Glass Processing Line With Filling Argon Gas Online 6



• Fast reacting sensor for permanent control of gas filling process

• Gas concentration can reach more than 90%

• Set zones to fill different size of glass with follow-up sealing method reduces argon loss

• Can set gas value and show the process of filling gas on the touch screen

• No need to drill holes on the spacer frame

• Standard gas is Argon gas

07 discharge section

• Storage glass

• Can be connected to sealing machine



Technical parameters

Max. glass size 2500mm*3500mm
Max glass size for filling gas 2500mm*3200mm
Min. glass size 280mm*450mm
Glass thickness 3-15mm
Insulating glass thickness 60mm
Glass washing speed 2-10m/min
Glass conveyor speed 45m/min
Washing brushes 3 pairs of soft brushes with 0.1mm hair
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P 380V 50HZ 40KW
Dimension 23500*3500*3700mm
Weight 6500kg



Electrical parameters



NAME ORIGIN BRAND
Servo motor Germany SIEMENS
PLC Germany SIEMENS
Low voltage electrical appliance Germany SIEMENS
Frequency converter Germany SIEMENS
Transfer motor Taiwan LINHAI
Brush motor Taiwan LINHAI
Water pump China LINGXIAO
Guide Taiwan HIWIN
Pneumatic Components Taiwan AIRTAC
Electric gauge China MIRAN
Photoelectric switch Germany SICK
Micro Switch Taiwan TEND
Button and indicator light France SCHNEIDER
touch screen Taiwan WEINVIEW
Intermediate relay Japan OMRON
IG line with gas filling online



10m Insulated Glass Processing Line With Filling Argon Gas Online 710m Insulated Glass Processing Line With Filling Argon Gas Online 810m Insulated Glass Processing Line With Filling Argon Gas Online 910m Insulated Glass Processing Line With Filling Argon Gas Online 10

10m Insulated Glass Processing Line With Filling Argon Gas Online 11
