Product Details:
|
| Name: | Insulating Window Glass Making Glazing Glass Making Machine | Voltage: | 380V,50HZ Or Customized |
|---|---|---|---|
| Washing Speed: | 2-10m/min | ||
| High Light: | 10m/min Glazing Glass Making Machine,Double Layers Glazing Glass Making Machine,2 Layers Glazing Glass Making Machine |
||

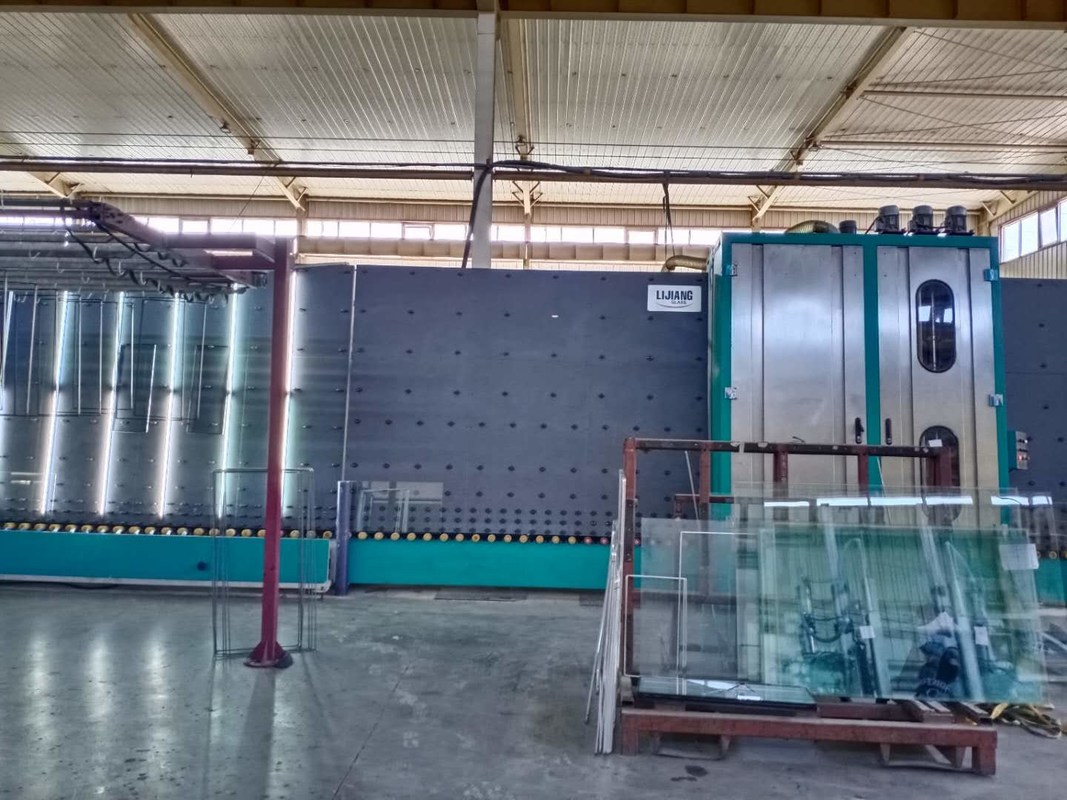

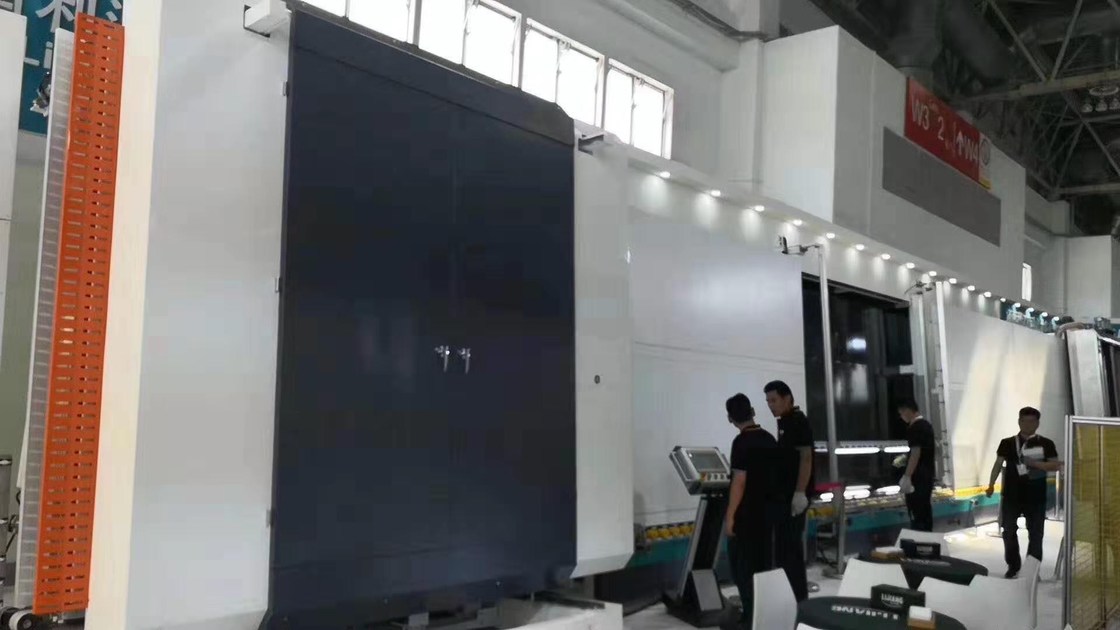

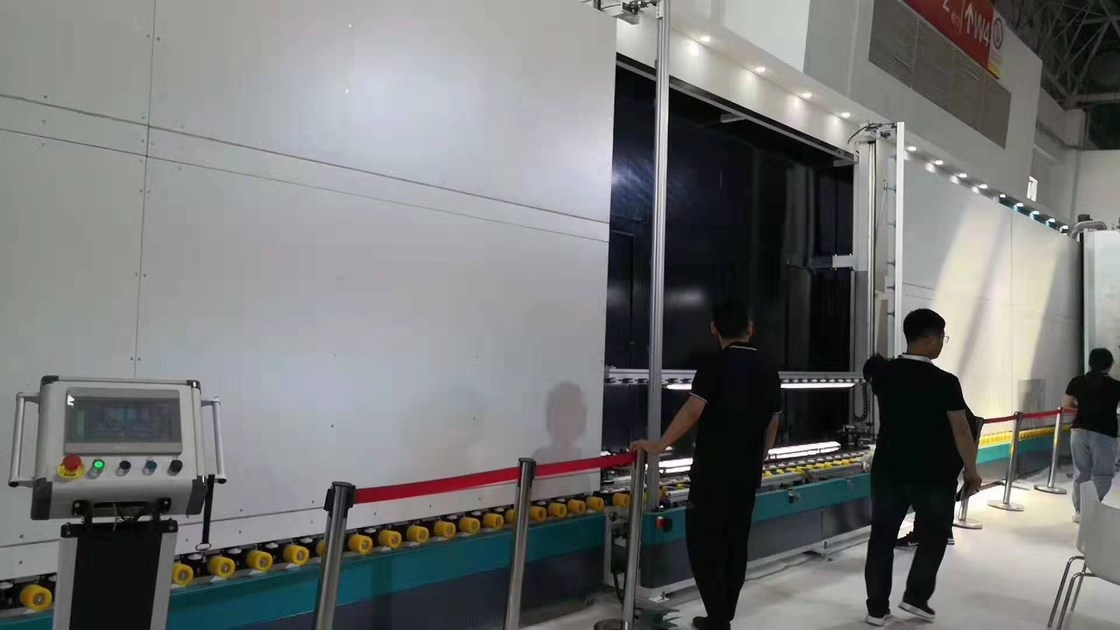

Insulating glass production line
Insulating glass production line is a kind of glass deep processing equipment, which is mainly used for processing and making insulating glass. The original glass is cut into the hollow production line
Mainly after cleaning, drying, making spacers, filling with desiccant, the first seal (coated with butyl glue),
Check, put the frame together, press the tablet, the second seal (polysulfide glue or silicone glue), the next film,
The processed products are of high quality and fast processing speed.
|
Voltage
|
380V 50HZ
|
|
Power
|
26.5KW
|
|
Thickness of the glass
|
3mm-10mm
|
|
speed
|
2-10m/min
|
|
Max Glass Size
|
1800mm×2500mm
|
|
Machine Size
|
13030mm×2350mm×3000mm
|
Structure and performance
There are four main sections of insulating glass production line: feeding section, cleaning and drying section, inspection section and closing section. All four sections are placed vertically with the same inclination angle, compact structure, economical and practical, high efficiency and easy maintenance.
1. The cleaning box is made of stainless steel, and the transfer roller is acid and alkali resistant rubber roller; the glass cleaning situation can be easily observed at any time through the plexiglass window; the feeding section and the cleaning and drying section are driven by manual stepless speed regulation motor. It runs smoothly at a good speed.
2. The use of high wind tilting air knife in the drying section can make the glass surface dry.
3. The inspection section is equipped with a light tube, which can clearly check the cleaning quality of the glass;
4. The closing section has glass positioning and aluminum frame positioning devices, which can complete the functions of glass positioning and aluminum frame positioning.
The glass is supported and conveyed by the transmission rubber roller. The transmission roller is driven by the motor (rolling section motor) through the frequency converter and the sprocket. The glass enters this section at a low speed from the cleaning and drying section. To improve work efficiency;
The running speed of the speed-regulating motor in this section is controlled by the frequency converter, and the glass is controlled by the photoelectric switch to enter the next working section.
The cleaning water system of the insulating glass production line is a circulation system, and its water tank is equipped with a constant temperature water heating device, and the water temperature can be automatically maintained within a reasonable range.
Water is drawn from the water tank by the water pump, sprayed onto the glass surface through the spray water pipe, cleaned the glass and then flows back to the water tank for recycling. If the water quality is poor, a water treatment device (provided by the user) needs to be equipped. After treatment, the water enters the water tank and is recycled according to the above steps.
Air path system: The glass is dried by the fan through a pair of inclined air knives.
