Product Details:
|
Max Bending Size: | 2500*2500mm | Min Bending Size: | 150*300mm |
---|---|---|---|
Aluminum Spacer Width: | 6A-27A | Bending Size Error: | ±0.5mm |
Angle Error: | ±1 | Total Power: | 2.5kw |
Dimension: | 1000*2200*2600mm | NAME: | SPACER BENDING MACHINE |
Weight: | 500kg | ||
Highlight: | ±0.5mm aluminum bending machine,Servo glass bending machine |

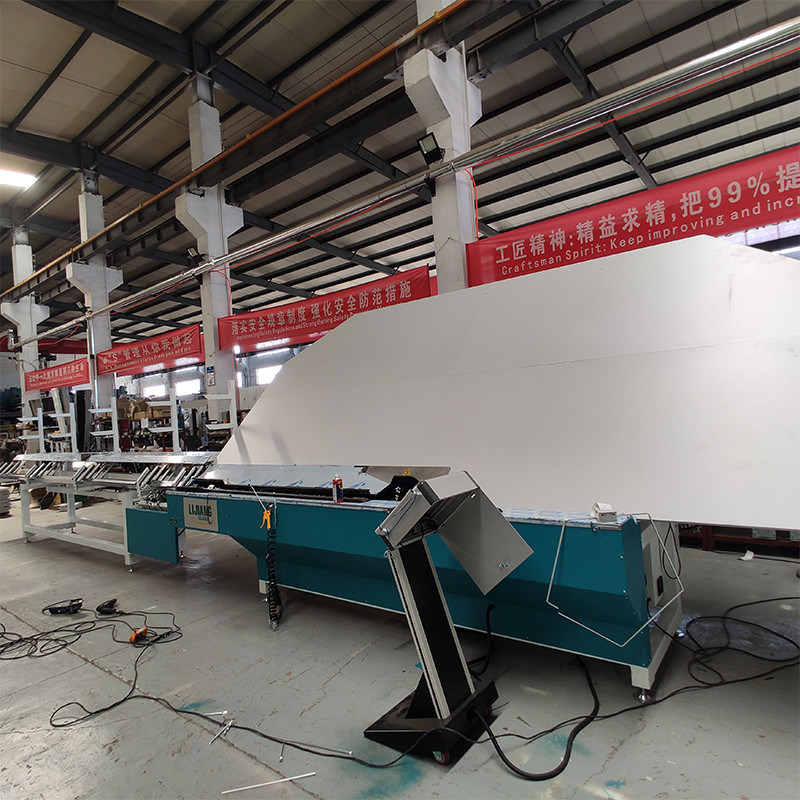

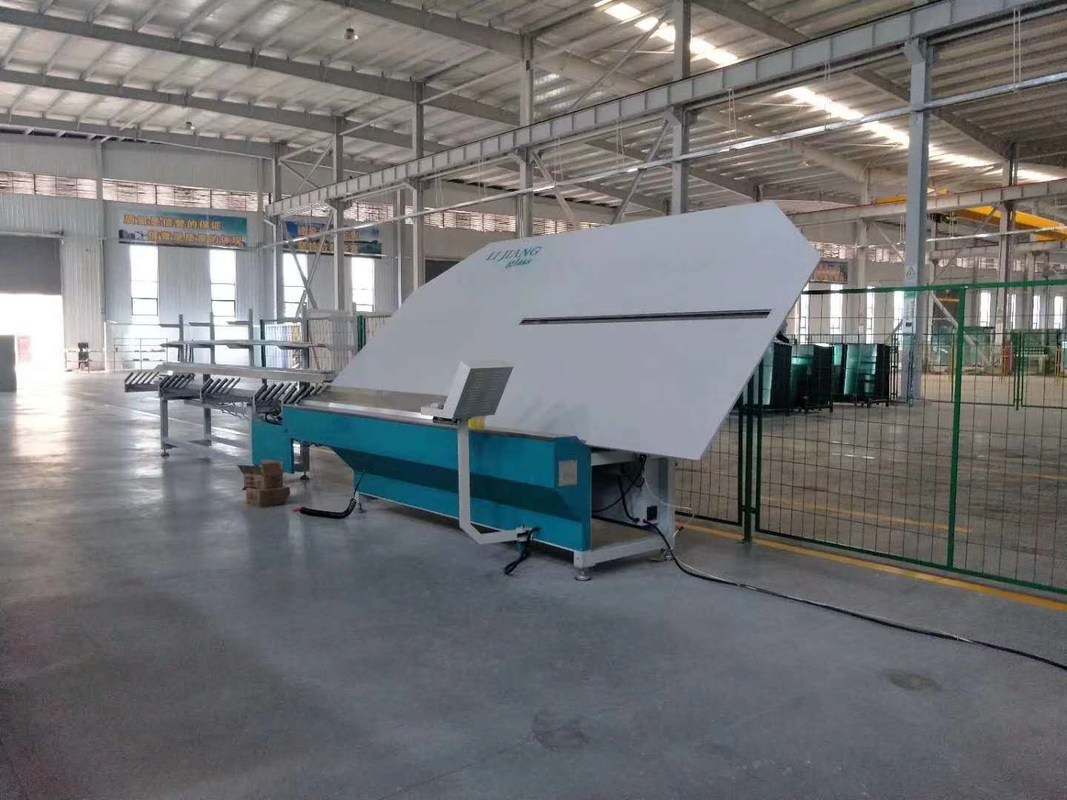

SPACER BENDING MACHINE PROFILE BENDING MACHINE FRAME BENDING MACHINE
l Remote control function
l USB input function ,it can read the excel data directly
l Spare parts of all machine have ID code ,convenient for after-sale service
l Heavy duty connectors ,convenience and safety for installation and debugging
l Magnetic valve use Taiwan Airtac
l German Siemens plc control systerm
l Japan Fuji servo control system

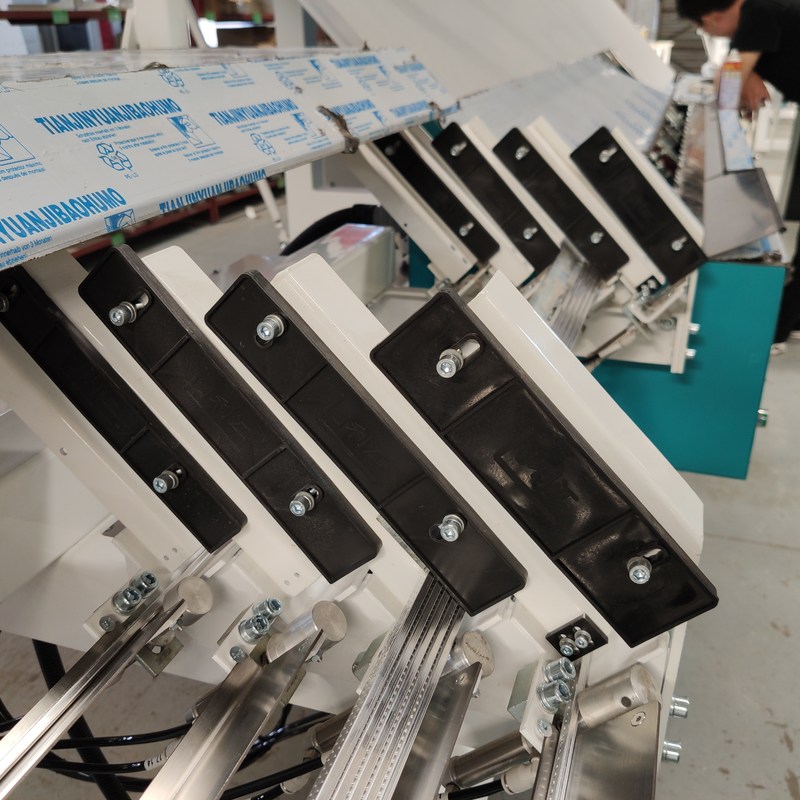

l 12 storage spacer units (option)
l Swisspacer/ Stainless Steel /Allmetal Stainless Steel /option)
(Stainless steel and warm edge spacer can not exist at one time )
l Drill hole for gas filling(option)
l Spacer inkjet printing ,various color is available for company logo or production date(option)
l Laber printing (option)
l Scanner scan two-dimension code ,bar code (option)
l Separate Pressing Wheel for arc frame, more accurate than the bending tool
Especially for Hexagon and Octagon frame (optional )
l ERP (optional)

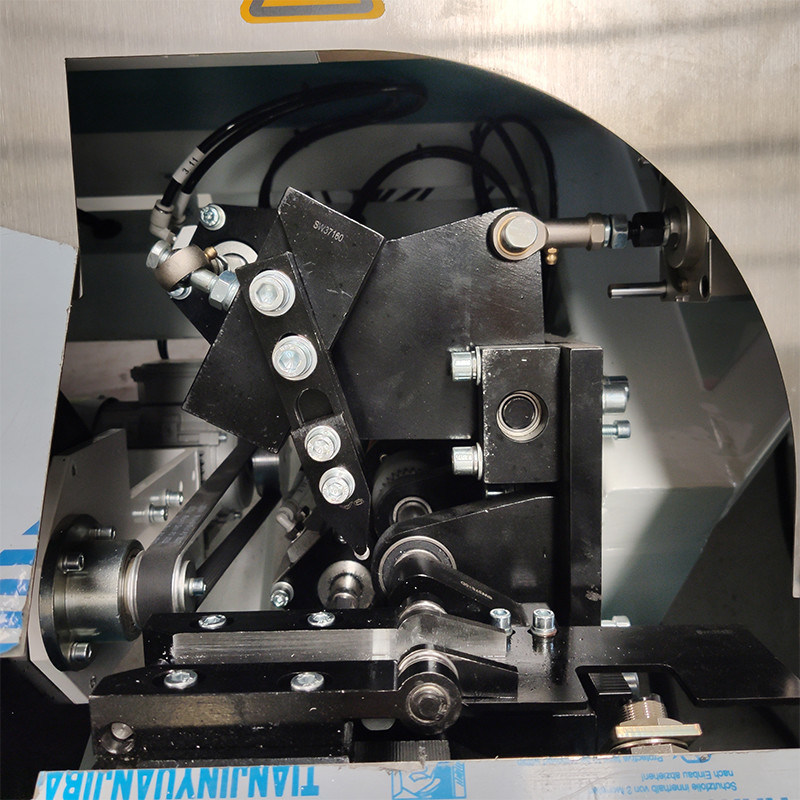

Remark : Bending tool
*For rectangle frame there have three size (6A/9A/12A)was complimentary
Other size need pay extra 42$/per size
* For Circle ,Hexagon and Octagon frame , 300$/per size
Spacer Bending machine main components
NAME | BRAND |
PLC | GERMAN SIEMENS |
Low voltage electrical apparatus | GERMAN SIEMENS |
Servo motor | GERMAN SIEMENS |
Servo driver | GERMAN SIEMENS |
Relay | JAPAN OMRON |
Triplet | Taiwan AIRTAC |
Cylinder | Taiwan AIRTAC |
TOUCH SCREEN | Taiwan WEINVIEW |
Switch power | Taiwan TEND |
GUIDE | Taiwan TBI |
Solenoid valve | Taiwan AIRTAC |
Sensor | KOREA AUTONICS |
Main technical parameter
Max.bending size | 2000mm*2000mm |
Min.bending size | 250mm*200mm |
Aluminum spacer width | 5.5-24mm |
Dimensional error: | ≤±0.5mm |
Angle error | ≤±1º |
Processing speed | ≤26s |
Air supply | ≥0.65MPa |
Total power | AC220/380V 50Hz 2.5KW |
Dimension | 10500mm*2200mm*2600mm |
Vertical Insulated Glass Produce Line for double glass production line
Auto Sealing Robot for double glass production line
Sealant Spreading Machine for double glass production line
Low-E Glass Washing &Drying Machine for double glass production line
Smart Edge Deleting Machine for double glass production line
Automatic Spacer Bending Machine for double glass production line
Automatic Desiccant Filling Machine for double glass production line
Butyl Extruder Machine for double glass production line
Glass Edge grinding Machine for double glass production line
Spacer Cutting Machine for double glass production line
Sealing gun Freezer for double glass production
Rotated Sealant Spreading Table double glass sealing
Argon Gas Filling Machine double glass
Semi-auto Aluminum Frame Transfer Machine for double glass production line
Molecular Sieve Filling Machine double glass production line
Glass Lifting Table double glass production line
Glass Loading /unloading Device for double glass production line
Water Treatment System for double glass production line (Economy)
Water Treatment System double glass production line (Advanced)
Auto Seaming Machine
National Glass Expo :Glasstec in Germany , CAM Eurasia Glass in Istanbul, India Zak, India Glasspro, Glasstech Aisa , Glass build in America, Mexico glass expo .Big Five In Dubai, Egpyt.
Domestic glass expo : China glass , (Beijing /shanghai), Guangzhou.
Advantages of Lijiang Products
1, we are producing all DGU machines : Vertical Insulated Glass Produce Line for double glass production line, Auto Sealing Robot for double glass production line, Sealant Spreading Machine for double glass production line, Low-E Glass Washing &Drying Machine for double glass production line, Smart Edge Deleting Machine for double glass production line, Automatic Spacer Bending Machine for double glass production line, Automatic Desiccant Filling Machine for double glass production line, Butyl Extruder Machine for double glass production line, Glass Edge grinding Machine for double glass production line, Spacer Cutting Machine for double glass production line, Sealing gun Freezer for double glass production , Rotated Sealant Spreading Table double glass sealing, Argon Gas Filling Machine double glass , Semi-auto Aluminum Frame, Spacer Transfer Machine for double glass production line, Molecular Sieve Filling Machine double glass production line, Glass Lifting Table double glass production line, Glass Loading /unloading Device for double glass production line, Water Treatment System for double glass production line (Economy), Water Treatment System double glass production line (Advanced), Auto Seaming Machine
2, we have our own technician team and we got patent for the spacer bending machine and butyl extruder machine and desiccant filling machine and so on.
For the Double Glazing Production line we have latest technology about pressing part and argon gas filling part .
For the Automatic sealing robot , the mechanical head is in front of machine, it can achieve the real connection with Double Glazing production line when producing the step glass.
For the Spacer bending machine, our machine can bend aluminum spacer and warm edge spacer ,and stainless steel, warm edge spacer need heating before bend, the corner error is acceptable range, we all use German Simens Japan SMC ,These national brand are stable and convenient for the future service .
for the butyl extruder machine , our best advantage is coating speed can up to 47m/min , it can save materials up to 30% compare with other brand(4-7g/m), we all use German Simens Japan SMC ,These national brand are stable and convenient for the future service. Now we are making new design -Machine can connect with big Bucket glue 200L, it can save refilling the glue time.
For the desiccant fillier machine , the biggest advantage is it can fill the rectangle and arc frame shape in one machine.
For the manual gas filling machine, we can input the argon gas concentration into touch screen and it can display the whole gas filling processing, customer will know exactly how much argon gas filled inside. When it up to the value you input , argon gas filling machine will automatic stop and give us alarming.
echnician Team:
We have our own technician team ,IG line and automatic sealing robot technician team have 6 experts which all have more than 15 glass machine working experience. Aluminum spacer bending and desiccant filling machine team we have 3 technician which have rich experience in double glass machines. Butyl extruder machine and sealing pump and hot melt machine team have 4 experienced technician, all of them are worked in glass machine filed more than 12 years
Service Team:
We have our own china domestic team and oversea service team .
Whole team was included by 15 china engineers who worked in glass machine filed more than 20 years and 5 oversea engineers , two of them from india and others from south America and midle east.
24 hours online service and local engineer available , guarantee customers got timely service and solution .
JINAN LIJIANG QUTOMATIC EQUIPMENT CO.LTD is an enterprise which integrated DGU Machines development, designing, sale and service into a whole. The company is located in the beautiful spring city, Jinan. Because it is close to Beijing-shanghai high-speed railway line, it’s very convent for transportation.
The company adheres to the “Hi-Q products”. We are striving to create the top-grade DGU Machines through setting up technology research and development center, inviting some experts to guide. We also cooperate with the domestic well-know enterprises and actively import foreign advanced technology. Now our company are the main supplier of glass deep processing enterprises in China. Our DGU machines are used by the main domestic famous glass factories, such as NORTH GLASS, XIN FU XING GLASS,YAO HUA GLASS, DALIAN HUAYING GLASS etc. We also have more than 400 customers who use our DGU machines in China. We have got CE certification in 2017. So far our machines has exported to more than 30 countries and regions, just like Europe, South America, Middle East, Southeast Asia and so on.
At the same time, our company cooperates with scientific research institution, which is based on research and development center, imported advanced intelligence. Our company successively cooperates with institution of China North Industries Group and Shandong University in order to develop more new products. Now we have already successfully produced vertical insulating glass production line, vertical insulating glass sealing robot and new butyl extruder machine, which quality has reached the domestic top-grade level.
LIJIANG GLASS are goes into a leading way in the DGU mechanical field with the advanced technology, first-class products, perfect service and good reputation!
