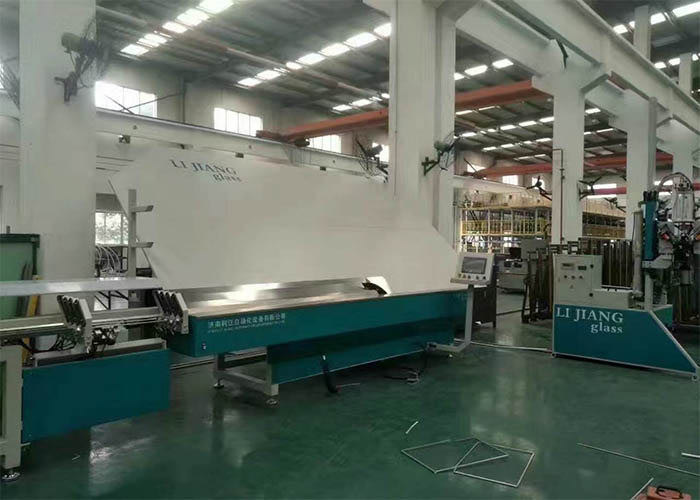

Automatic Bending Machine Aluminum Spacer Bending Cutting Machine

Automatic spacer bending cutting machine is used to bend and cut spacer frame for the inner of insulating glass units. Automatic bending machine is one of the auxiliary equipment for making insulating glass. Automatic Aluminum bending has many optional functions. Such as printing label for spacer's datas, printing logo and date and so on. Automatic spacer bar bending machine can bend stainless steel bars, warm-edge spacer bars (plastic spacer bars).

Main feature of automatic bending machine

• 4 groups of storages (2 or 12 groups of storages can be optional)

• Siemens 1200 PLC control system with fast working speed

• Automatically avoid the pins while bending and cutting

• Automatically cut and feed aluminum spacers

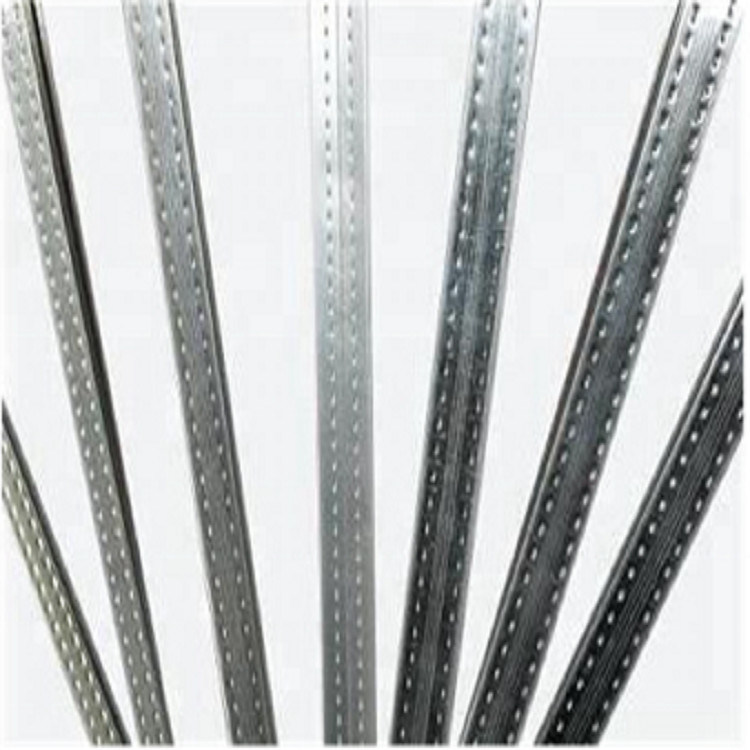

• Aluminum spacers are available in sizes of 6A-27A

• Bend spacer frames continuously

• Different bending tools for different sizes of spacers

• Pause and Reset device for handling equipment failures

• Bend aluminum spacer, smooth stainless steel, warm spacer

• Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A)

Different sizes of aluminum bars require different size tools (Optional)

• Connect to ERP system (Optional)

• USB input function, read the excel format file directly

• Automatically drill holes for filling argon gas (Optional)

• Spacer printing code function (Optional)

• Printing label sticker function (Optional)

Details of the automatic spacer bending machine :

• The size datas of glass sheet with 4 specifications and 32 sizes (8 kinds of each specification) can be set. The machine can automatically calculate the aluminum frame data according to each size. Continuous processing can greatly improve the efficiency and speed.
• The CNC servo feeding system.
• Except for start stop operation, all operations are completed on the touch screen, and the operation platform can be moved. Chinese operation interface, easy to operate, natural, easy to understand.
• The bending speed is automatically adjusted according to the size of aluminum frame to avoid the deformation of large frame frame and ensure the high speed and continuous of small frame.
• Automatic connection of aluminum spacer bars and intelligent avoidance design of aluminum bar joint (avoid bending or cutting to the joint).
• The high-speed continuous production function, the operator only needs to ensure that there is material in the material trough and remove the folded aluminum frame from the bending machine (the machine has fault alarm function, which can display the fault location and cause), and the bending machine will stop automatically after processing to the set number.
• The rationality judgment function of aluminum frame data, unreasonable data refuse processing and prompt.
• The start-up system is fully automatic reset.
• Automatic cutting of aluminum frame is completed.
• Design of quick maintenance adjustment panel.
• Dormant energy saving function and emergency stop protection.
• All functions can be manually operated to meet the needs of debugging and maintenance.
• Online no material prompt, dormancy prompt, fault prompt, work prompt, no material in the process, automatic stop to wait for material, continue to complete the process flow after feeding.
• The function of curved aluminum frame and special-shaped frame (unilateral, bilateral, trilateral, quadrilateral, hexagon, octagon, etc.)
• Output counting function, intelligent troubleshooting prompt.
