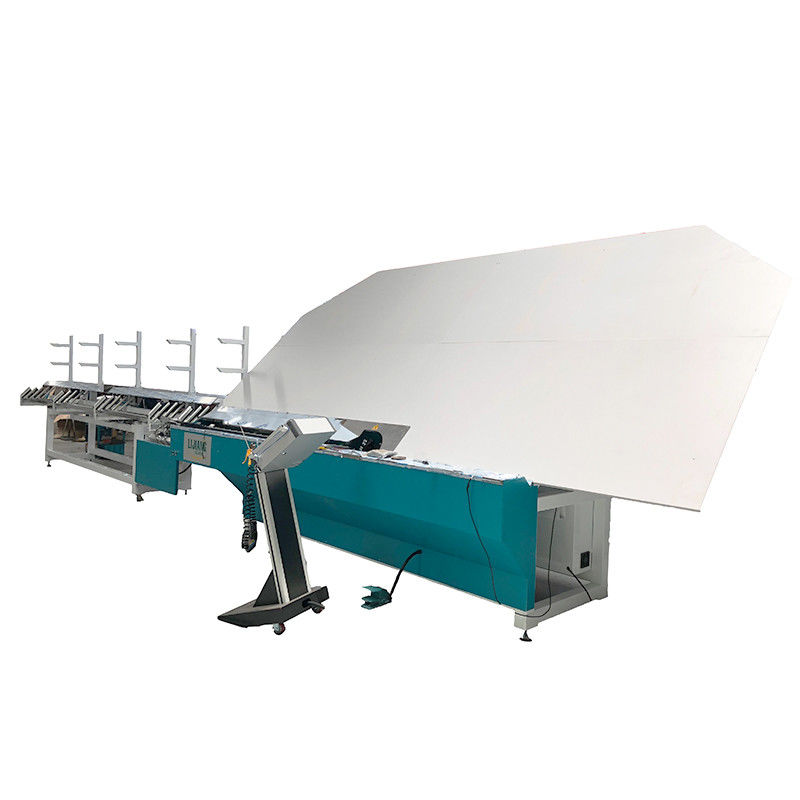

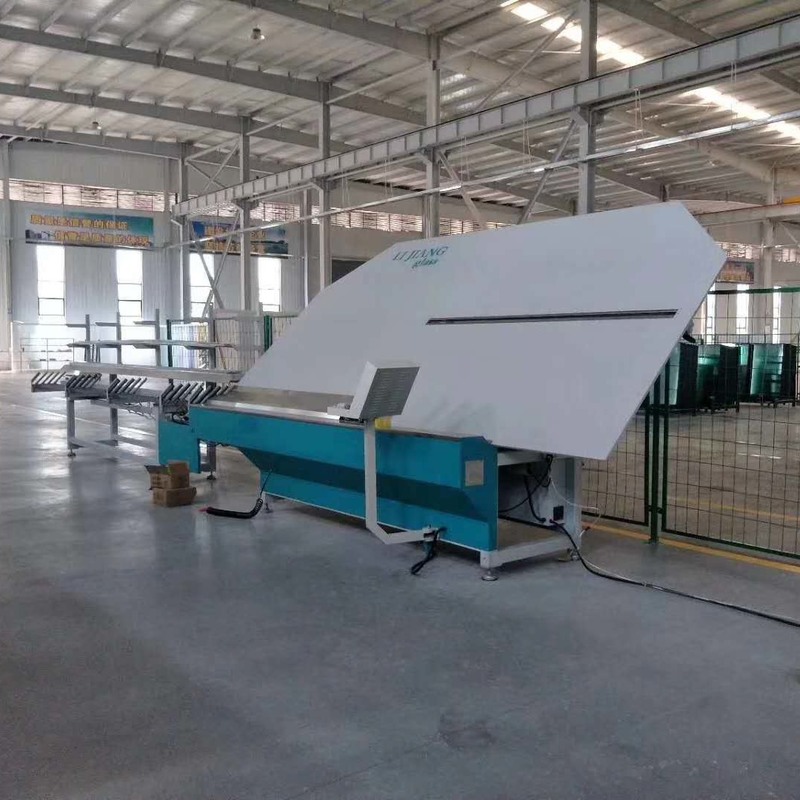

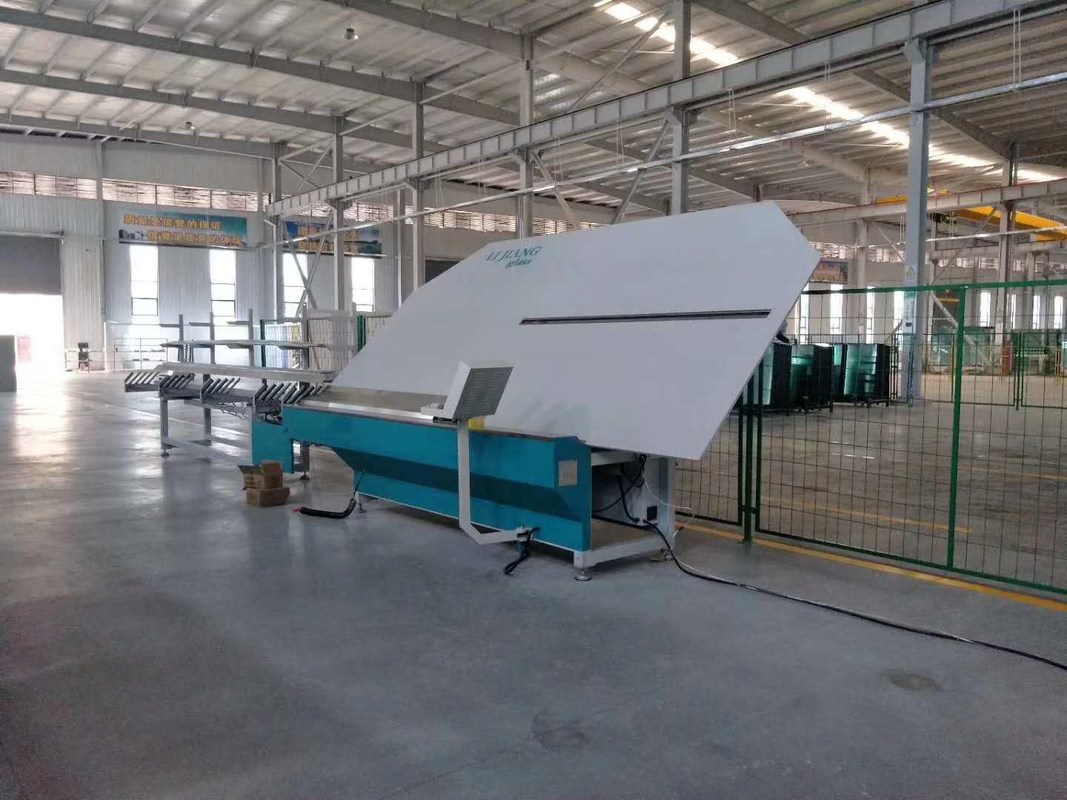

Cut Feed Aluminum 2000mm*2000mm Spacer Bending Machine

Automatic Warm Spacer Bending MachineAutomatically cut and feed aluminum spacers

Main feature

• Germany Siemens PLC control system, touch screen interface

• Japan FUJI CNC servo control system

• Four spacer size storage units

• Using servo system to control feeding mechanism

• Automatically cut and feed aluminum spacers

• Auxiliary function of adjustment for bending large aluminum frame

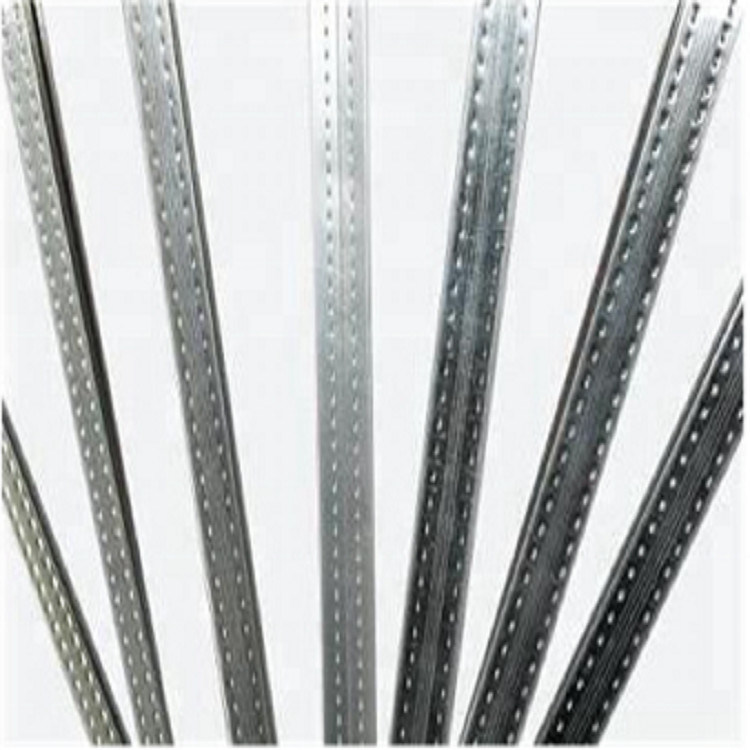

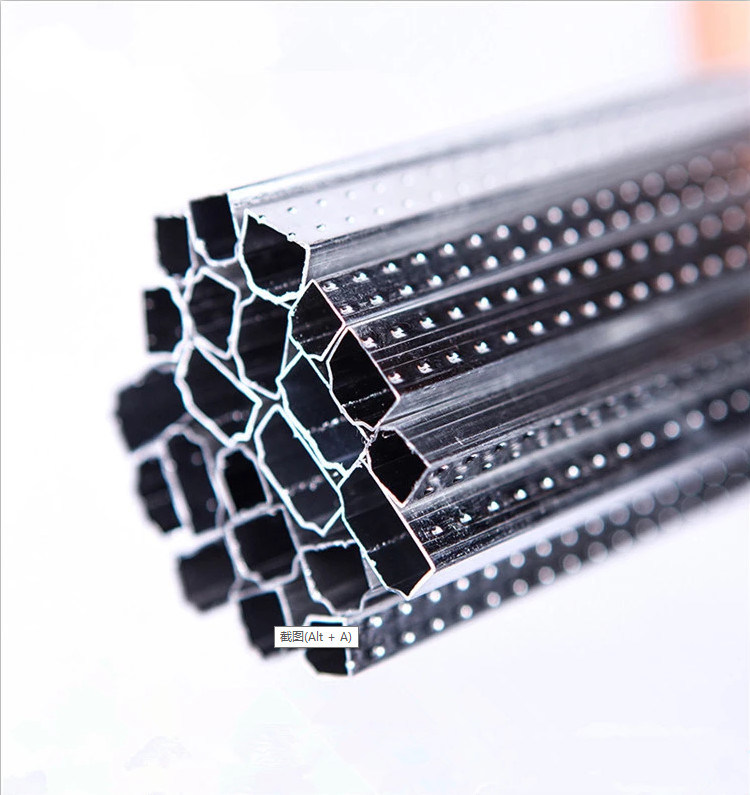

• Aluminum spacers are available in different sizes and sizes

• Bend shaped spacer frames continuously

• Separated guard board outside of bender

• Automatically avoid the connection while bending and cutting

• Pause and Reset device for handling equipment failures

• Can bend aluminum spacer, Technoform, Alupro, Thermix, warm spacer (Swisspacer)

• USB input function, read the excel format file directly etc (Optional)

• Stainless steel (Optional)

• Automatic drill gas filling hole (Optional)

• Connect to ERP system (Optional)

• Spacer printing code function (Optional)

• Printing label sticker function (Optional)

Technical data

Electrical parameters

• Adopt Siemens PLC control system
• There are 4 Siemens servo
• Adopt 12 sets of racks which could storage more different sizes of spacers. Use
• Siemens servo to change different racks.
• Automatically cut and feed aluminum spacers
• Bend shaped spacer frames continuously
• Automatically avoid the connecting corner while bending and cutting
• The machine grabs the spacer from the top instead of grabbing the spacer from
• bottom, solving the old-fashioned reversing problem.
• Using industrial computer technology which could realize the on-site drawing by
• workers on the industrial computer and directly bending the drawn graphics.
• The special machine hand device is used to bend big spacer frame

Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring

city------Jinan. It is an enterprise which integrated glass processing equipment research

and development, sales and service into a whole. As it is close to Beijing-Shanghai

high-speed rail, the transportation is very convenient.

The company is committed to building high-end insulating glass machinery and equipment

by learning from famous experts, establishing the research and development centers, cooperating

with domestic and foreign well-known enterprises, importing advanced technology and so on. Now,

our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua,

Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment

of the company, our products have been exported to Europe, America, South America, the Middle

East, Southeast Asia, India, nearly 30 countries and regions. At the same time, our company worked

with the well-known domestic research institutes, such as the North China Industrial Group, Shandong

University and others, to constantly improve the level of technical research. So far, we have independently

produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the

automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic

butyl extruder machine, its technology and quality have reached the highest leading level in China.

With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for

win-win situation and jointly creating a new world.
