Product Details:
|
Certification: | CE / UL | Voltage: | 380V 50Hz 3P |
---|---|---|---|
Product Name: | Automatic Spacer Bending Machine | Function: | Bending Aluminum Spacer Bars |
Warranty: | 1 Year | Max Bending Size: | 2500mm*2500mm |
Condition: | New Machine | Spacer Width: | 6mm - 27mm |
High Light: | 27A Spacer Bending Machine,6mm Spacer Bending Machine,27A bending glass machine |

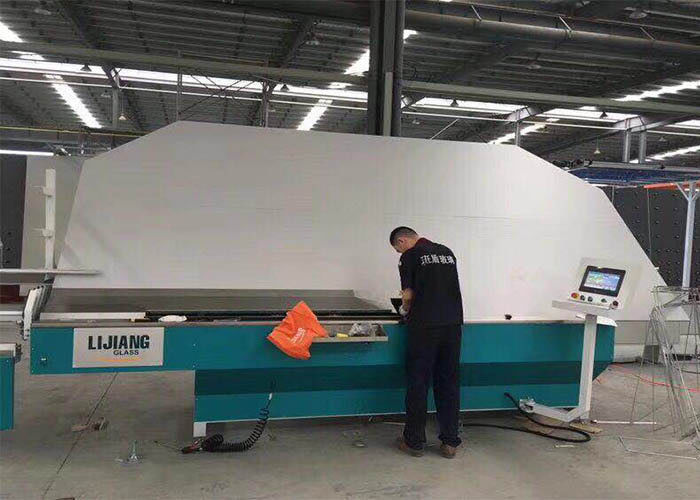

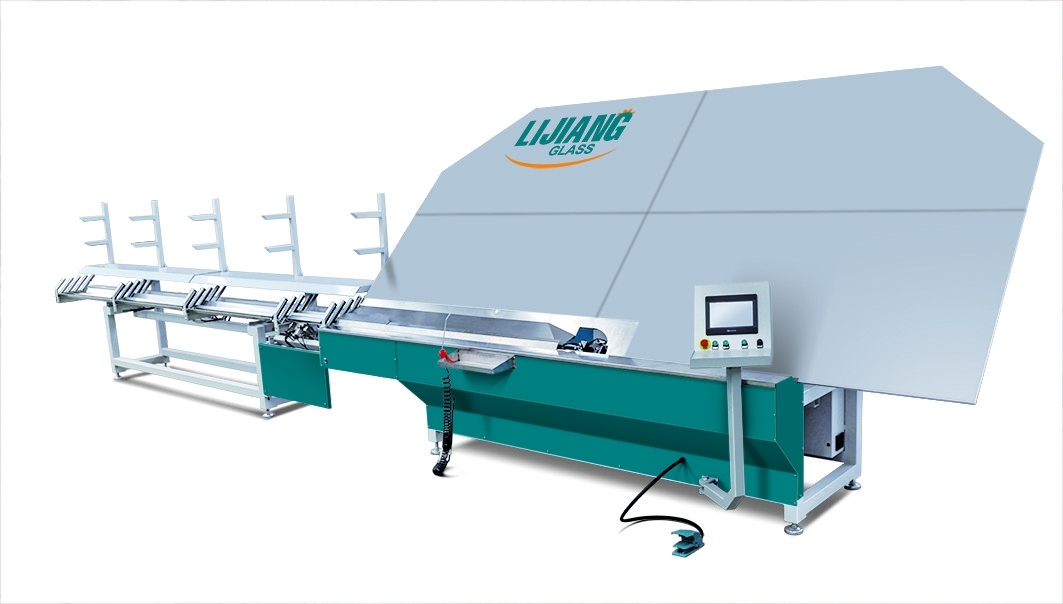

Full Automatic Spacer Bending Machine Cutting And Bending For Aluminum Spacer Bars
Main feature :
•Siemens 1200 PLC control system with fast working speed
•4 groups of storages (2 or 12 groups of storages can be optional)
•Automatically cut and feed aluminum spacers
•Automatically avoid the pins while bending and cutting
•Bend spacer frames continuously
•Aluminum spacers are available in sizes of 6A-27A
•Different bending tools for different sizes of spacers
•Pause and Reset device for handling equipment failures
•Bend aluminum spacer, smooth stainless steel, warm spacer
•Connect to ERP system (Optional)
•USB input function, read the excel format file directly
•Automatically drill holes for filling argon gas (Optional)
•Spacer printing code function (Optional)
•Printing label sticker function (Optional)
•Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A). Different sizes of aluminum bars require different size tools(Optional)
Main performance features:
Parameters :
Max. bending size | 2000mm*2000mm |
Min. bending size | 250mm*200mm |
Aluminum spacer width | 5.5-27mm |
Dimensional error | ±0.5mm |
Angle error | ±1º |
Processing speed | 17s |
Air supply | ≥0.65MPa |
Total power | AC220/380V 50Hz 2.5KW |
Dimension | 10500mm*2200mm*2600mm |
