Siemens PLC Control System 26s Spacer Bending Machine

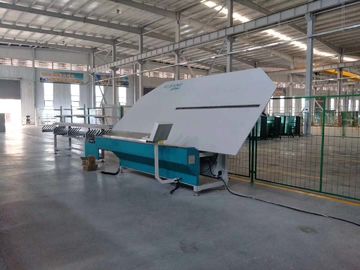

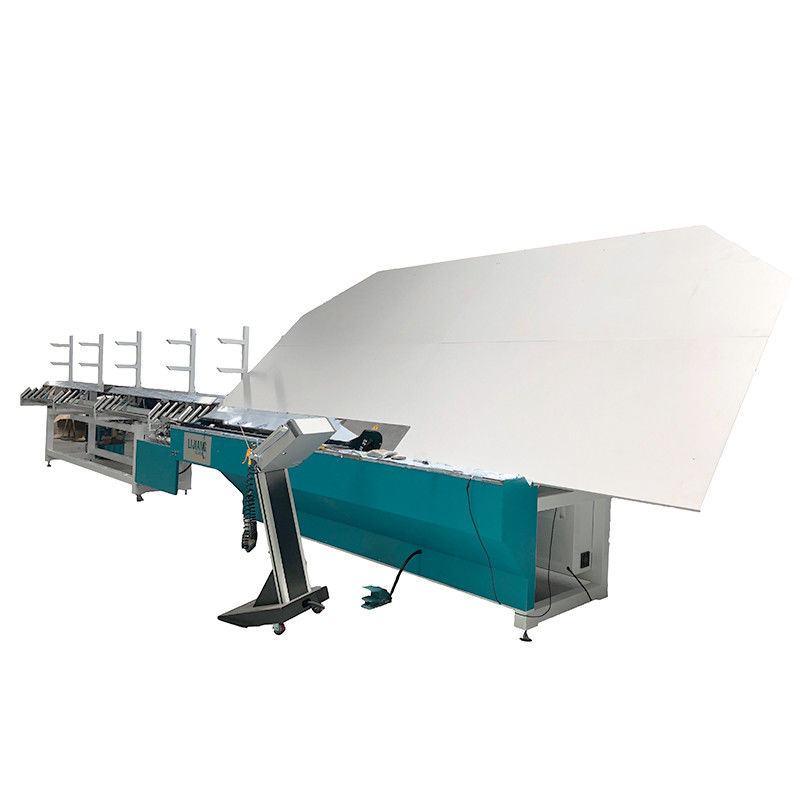

Automatic spacer bending machine LJZW2020 Adopt Siemens PLC control system

Automatic spacer bending machine is a special equipment for making aluminum frames of insulating glass,

which replaces the traditional fabrication technology. Automatic spacer bending machine can make a variety

of convex polygonal aluminum frames by one aluminum strip in one time, thus strengthening the strength of

the aluminum frame, making the sealing effect of the insulating glass more better.

² Equipment details

• Adopt Siemens PLC control system
• There are 4 Siemens servo
• Adopt 12 sets of racks which could storage more different sizes of spacers. Use Siemens servo
• to change different racks.
• Automatically cut and feed aluminum spacers
• Bend shaped spacer frames continuously
• Automatically avoid the connecting corner while bending and cutting
• The machine grabs the spacer from the top instead of grabbing the spacer from bottom, solving
• the old-fashioned reversing problem.
• Using industrial computer technology which could realize the on-site drawing by workers on the
• industrial computer and directly bending the drawn graphics.
• The special machine hand device is used to bend big spacer frame

• We have the special soft system which could avoid the 120mm to reduce waste. For example,
• if the length of the gusset is 60mm, when the program calculates the right angle, there is a
• gusset. When you start to bend the rectangular frame, you need firstly transport 120mm,
• then cut 120mm, and then step on the pedal to bend frame, so you will waste the 120mm.

Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring

city------Jinan. It is an enterprise which integrated glass processing equipment research and development,

sales and service into a whole. As it is close to Beijing-Shanghai high-speed rail, the transportation is very

convenient.

The company is committed to building high-end insulating glass machinery and equipment by learning from

famous experts, establishing the research and development centers, cooperating with domestic and foreign

well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North

Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and

other well-known enterprises. Since the establishment of the company, our products have been exported to

Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions.

At the same time, our company worked with the well-known domestic research institutes, such as the North

China Industrial Group, Shandong University and others, to constantly improve the level of technical research.

So far, we have independently produced the vertical automatic IG production line with filling gas on line, the

vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine and

the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading

level in China.

With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win

situation and jointly creating a new world.
