Product Details:
|
| NAME: | Automatic Aluminum Spacer Bending Machine | Angle Error: | ±1º |
|---|---|---|---|
| Processing Speed: | ≤26s | Air Supply: | ≥0.65MPa |
| Total Power: | AC220/380V 50Hz 2.5KW | Dimension: | 10500mm*2200mm*2600mm |
| High Light: | 27mm Glass Bending Equipment,Separated Glass Bending Equipment,27mm bending glass machine |
||

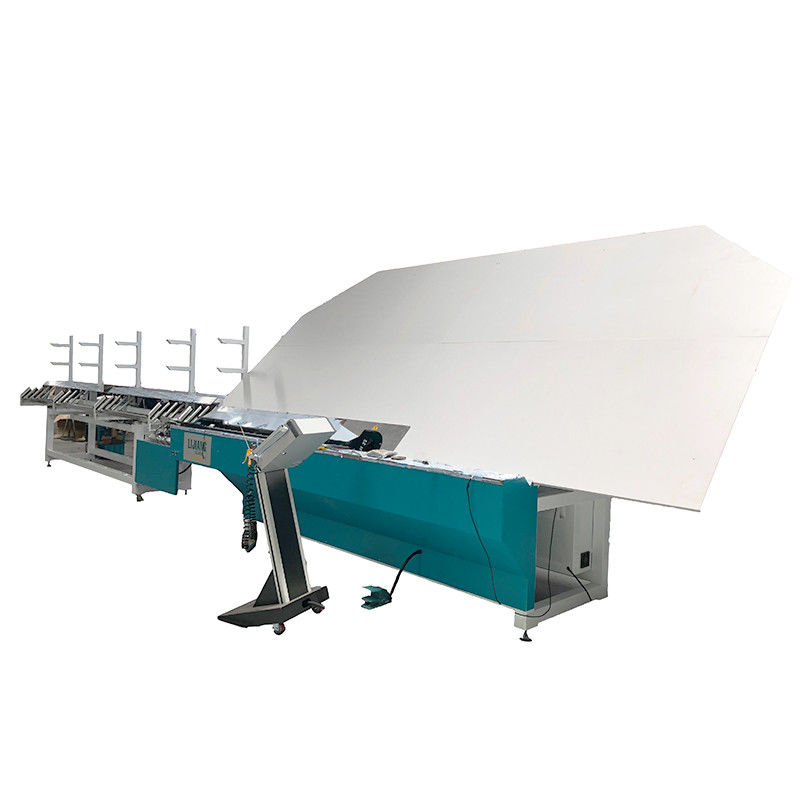

Automatic Aluminum Spacer Bending Machine Separated guard board outside of bender
Main feature
• Germany Siemens PLC control system, touch screen interface
• Japan FUJI CNC servo control system
• Four spacer size storage units
• Using servo system to control feeding mechanism
• Automatically cut and feed aluminum spacers
• Auxiliary function of adjustment for bending large aluminum frame
• Aluminum spacers are available in different sizes and sizes
• Bend shaped spacer frames continuously
• Separated guard board outside of bender
• Automatically avoid the connection while bending and cutting
• Pause and Reset device for handling equipment failures

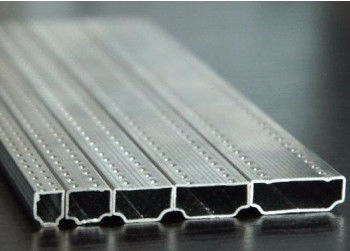

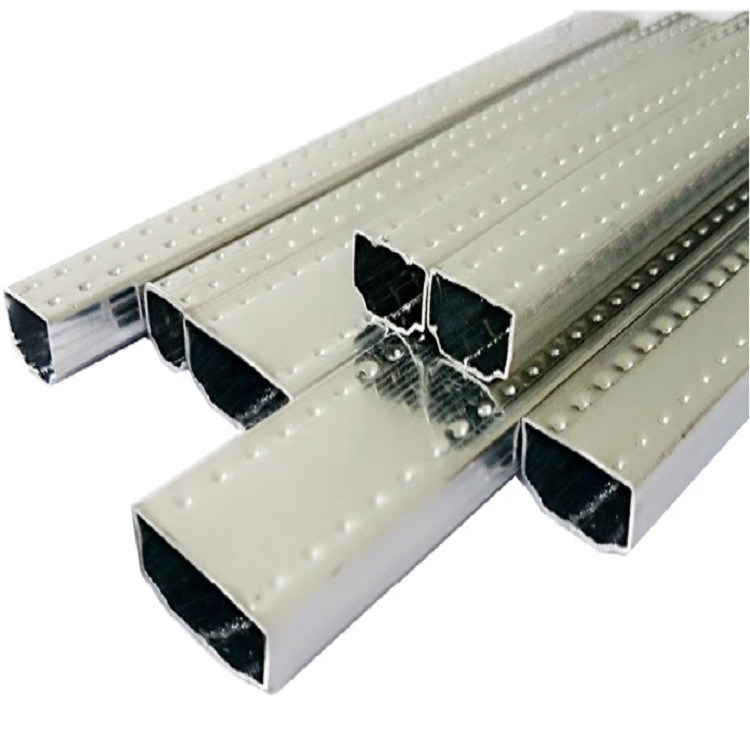

• Can bend aluminum spacer, Technoform, Alupro, Thermix, warm spacer (Swisspacer)
• USB input function, read the excel format file directly etc (Optional)
• Stainless steel (Optional)
• Automatic drill gas filling hole (Optional)
• Connect to ERP system (Optional)
• Spacer printing code function (Optional)
• Printing label sticker function (Optional)
| Max. bending size | 2000mm*2000mm (2500mm*2500mm) |
| Min. bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
| NAME | BRAND | NAME | BRAND |
| PLC | GERMAN SIEMENS | Triplet | Taiwan AIRTAC |
| Low voltage electrical apparatus | GERMAN SIEMENS | Cylinder | Taiwan AIRTAC |
| Servo motor | JAPAN FUJI | Solenoid valve | Taiwan AIRTAC |
| Servo driver | JAPAN FUJI | Switch power | Taiwan TEND |
| Relay | JAPAN OMRON | TOUCH SCREEN | Taiwan WEINVIEW |
| Sensor | KOREA AUTONICS | GUIDE | Taiwan TBI |
• USB input function, read the excel format file directly etc (Optional)
• Spacer printing code function (Optional)
• Printing label sticker function (Optional)
• Can bend aluminum spacer and stainless steel ( Optional)
• Automatic drill gas filling hole (Optional)
• Connect to ERP system (Optional)
Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring
city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and
service into a whole. As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.
The company is committed to building high-end insulating glass machinery and equipment by learning from famous
experts, establishing the research and development centers, cooperating with domestic and foreign well-known
enterprises, importing advanced technology and so on. Now, our friendly partners include North Glass, Xin Fuxing,
Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises.
Since the establishment of the company, our products have been exported to Europe, America, South America, the
Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same time, our company worked with
the well-known domestic research institutes, such as the North China Industrial Group, Shandong University and
others, to constantly improve the level of technical research. So far, we have independently produced the vertical
automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer bending
machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine, its technology
and quality have reached the highest leading level in China.
With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win
situation and jointly creating a new world.
FAQ
Q: What is the system of Kation’s after sale service?
A: Kation has its own special system for the service, we make a “tree of knowledge”for guiding customer
to find the usual problem and the answer when customers meet.
Q: What is the details of the after sale service?
A: Step1: Notice before installation
Step2 : Confirm before installation
Step3: On-site installation
Step4: On-site debugging
Step5: On-site training
Step6: Client sign
Step7: On-line service
Step8: Technical service
More details please search www.lijiang-glass.com
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
Q: About this Machine,What’s the guarantee ?
A:1)Our guarantee for 12 months.
2)24 hour’s technical support by email or calling
3)English manual and video tutorial
4)We will provide the consumable parts at an agency price
5)24 hours on line service each day, free technical support.
