Product Details:
|
| Product Name: | Factory Price Glass Vacuum Suction Cup Sucker Lifter | Material: | ABS+Rubber |
|---|---|---|---|
| Product Name Suction Cup Material Stainless Steel Horizontal Suction Force: | 90KG | Vertical Suction Force: | 78KG |
| Diameter Of Suction Cup: | 123MM | Rubber Plate Thickness: | 7MM |
| High Light: | 123MM Glass Lifter Suction Cup,90KG Glass Lifter Suction Cup,90KG granite suction cups |
||

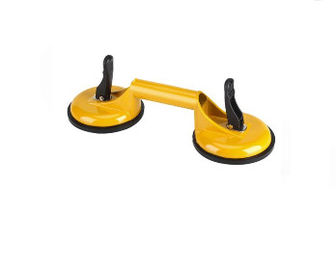

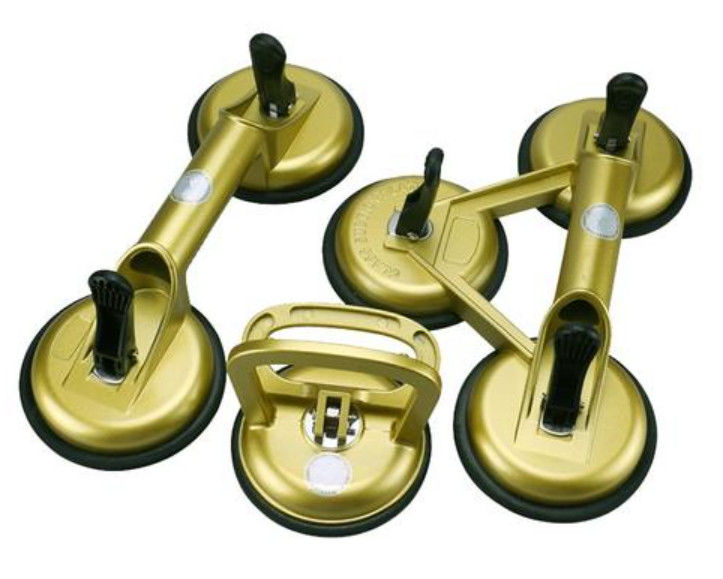

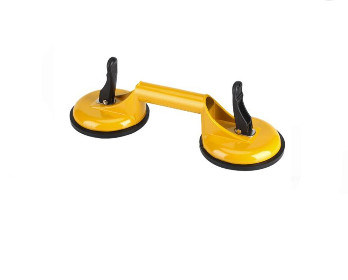

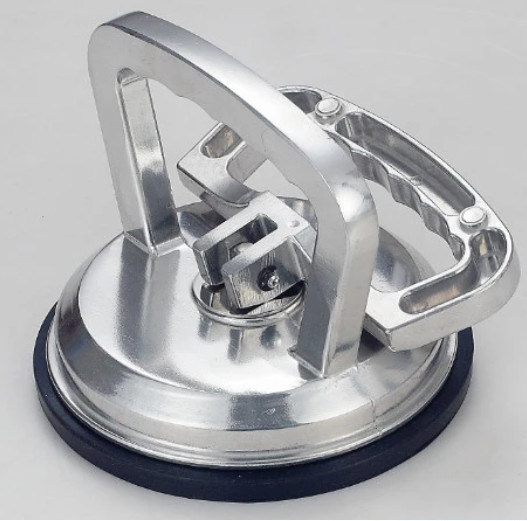

Factory price glass Aluminium alloy vacuum suction cup sucker lifter
Glass Suction Cup Kation-SC01
It is mainly used for sucking flat and smooth objects such as glass and ceramic tiles. It uses the
toughness and deformation of the rubber chassis to create a vacuum, and uses atmospheric
pressure to suck the items firmly, so as to achieve the purpose of lifting and carrying the items.
Compression torque setting 4: set the servo compression torque when the glass size is within
the four zones of the suction cup.
Setting of pressing time 1: setting the length of the servo pressing time when the glass size is
within the area of the suction cup.
Setting of press time 2: setting the length of the servo press time when the glass size is in the
area of sucker 2.
Press time setting 3: set the length of the servo press time when the glass size is in the three
zones of the suction cup.
Press time setting 4: set the length of the servo press time when the glass size is within the
four zones of the suction cup.
The moment before pressing glass, plate distance before the second sheet (3 pieces) glass
spacing: refers to the moment before pressing or gas adsorption of glass plate before and
after the linking piece on the aluminum frame interval, recommended distance is 6 ~ 8 mm.
Beam electronic ruler value: it is the value of beam electronic ruler displayed in real time.
The value of the electronic ruler when the beam is extended: the value of the electronic ruler
when the beam's dc electric push rod is fully extended.
The value of the electronic ruler when the beam is zero: the value of the electronic ruler when the
beam's dc electric push rod is fully retracted.
When entering the glass in section 11.06, the forward positioning distance after entering the glass:
it is to set the glass to enter the pressure section of the plate and transmit the inverted glass
positioning over a long distance.
06 when the glass is in the section, the reverse positioning distance after the forward positioning
is completed: it is to set the glass to enter the section of plate pressure and then transmit the
glass positioning distance backward.
Automatic transmission speed of glass: set the speed of automatic transmission of glass
in section 06.
Automatic closing speed: refers to the opening and closing speed of the front plate.
| Max. glass size | 2500mm*3500mm |
| Max glass size for filling gas | 2500mm*3200mm |
| Min. glass size | 280mm*450mm |
| Glass thickness | 3-15mm |
| Insulating glass thickness | 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |
| Washing brushes | 3 pairs of soft brushes with 0.1mm hair |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ 40KW |
| Dimension | 23500*3500*3700mm |
| Weight | 6500kg |
