Place of Origin:
CHINA
Brand Name:
LIJIANG
Certification:
CE
Model Number:
6A
Aluminium spacer bar 6A Bendable with high frequency and low price

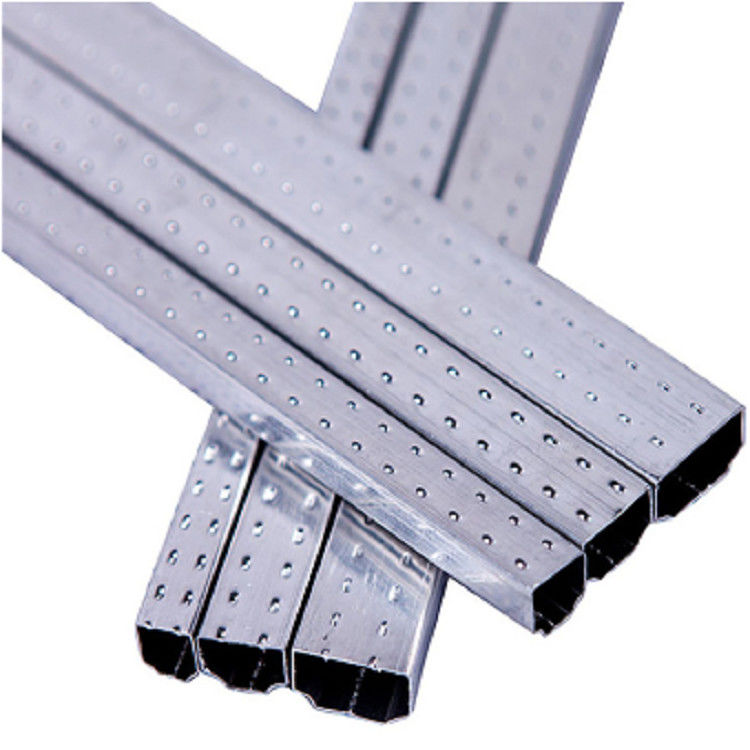

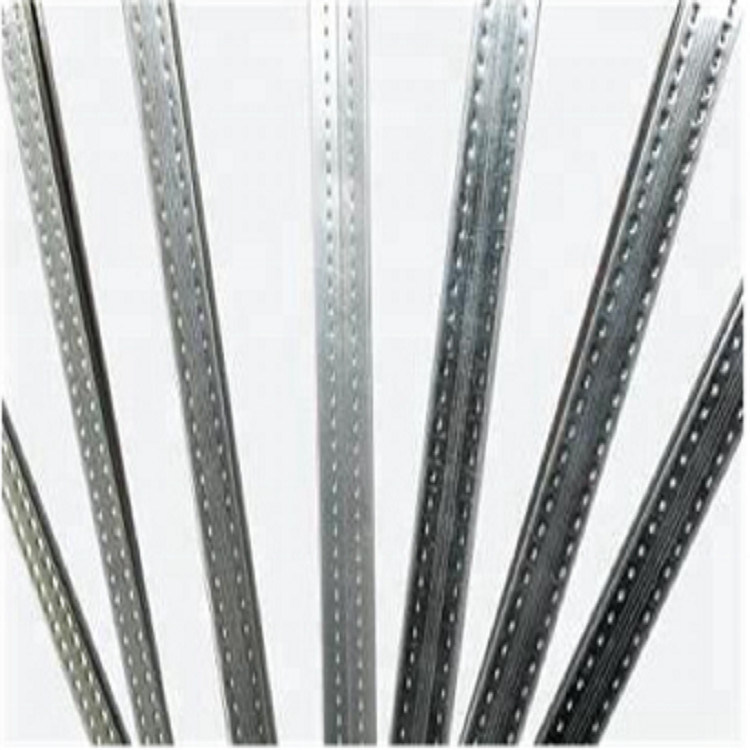

Insulating Glass Aluminum Spacer Bar 6A
Product Description and advantage:
1. Material:3003 alloy aluminum
2.5.5mm side welding line,100% guarantee bendable.
3. wall thickness is within 0.30~ 0.35mm,and tolerance is ±0.025mm.
4. Appearance:Surface is Bright smooth and has no knocking. Air hole is uniform and in order.
5. It conforms to the standard requirement of “Insulating Glass
6.Size:5.5mm-35mm.
The water system consists of two independent water circulation systems: the first level water
circulation system and the second level water circulation system. Water is pumped out of the
water tank by the water pump and sprayed onto the glass surface by the spray pipe. After
cleaning the glass with a brush, the water flows back to the tank for recycling. The primary
cleaning water tank is equipped with a water heating device with temperature control, which
can keep water temperature automatically. In order to ensure the cleaning effect, the water
conductivity must be no greater than 40 (including s, if the water quality is bad, need to be
equipped with water treatment equipment, water after water treatment into the rinse water
tank, recycling according to the above steps, the water treatment device by the user should
bring along their own.
| NAME | ORIGIN | BRAND |
| Servo motor | Germany | SIEMENS |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Transfer motor | Taiwan | LINHAI |
| Brush motor | Taiwan | LINHAI |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| Electric gauge | China | MIRAN |
| Photoelectric switch | Germany | SICK |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| IG line with gas filling online | ||
This screen shows the current state of production function of the machine.
"Cleaning speed" is the set of cleaning machine transmission speed.
"Upper frame setting time" refers to the delay stopping time of the second glass at the glass
locating device of the aluminum frame assembly section.
"Set value of aeration concentration" refers to the value of the aeration concentration to be
reached in the automatic detection mode of aeration. After reaching the set concentration,
the gas-filled compaction output will be stopped.
"Manual inflating time setting" refers to the inflating time required for inflation in the non-inflating
automatic detection mode.
"Glass parameters" refers to the non thickness mode manually input the parameters of the
glass thickness and width of aluminum frame, provide servo press and automatic pneumatic
parameters, click on the glass parameters set into the picture
