Product Details:
|
| Product Name: | Warm Edge Spacer Bar | Material: | Aluminum |
|---|---|---|---|
| Width: | 5.5-35MM | Package: | Carton |
| Used: | Insulating Glass Making | ||
| Highlight: | 9A Warm Edge Spacer Bars,Double Warm Edge Spacer Bars,9A warm edge spacer |
||

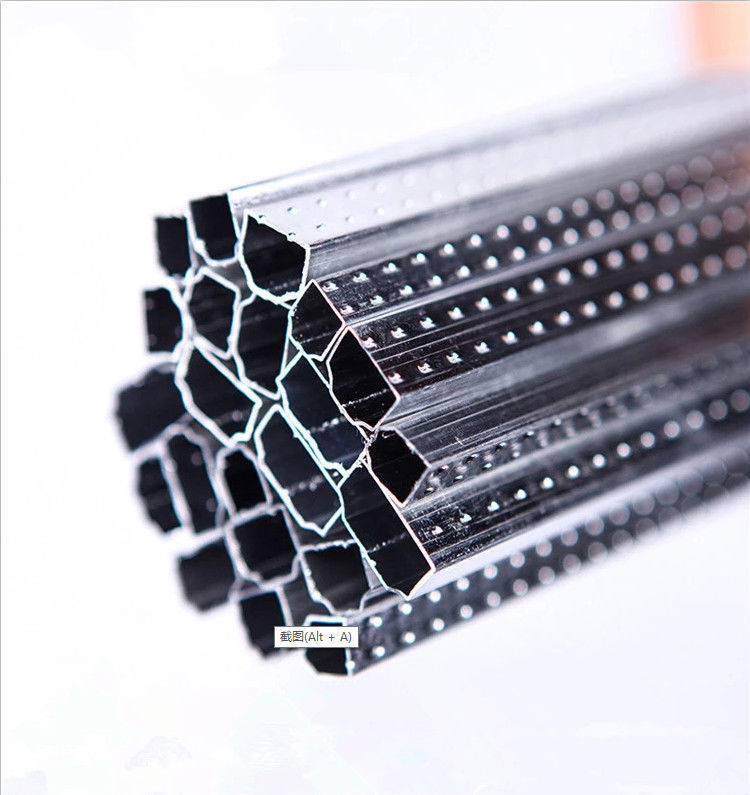

High frequency welding gray stainless steel warm edge spacer bars 9A for double glazed
Cleaning and drying section tilted vertical placement. The control box is arranged on the outside
of the cleaning section for easy operation. The cleaning section and water tank are made of
stainless steel and corrosion resistant materials. The transfer roller is acid-alkali rubber roller.
The cleaning and drying section adopts stepless frequency conversion speed regulation, and
the glass can run smoothly at the appropriate speed. In the cleaning section, three pairs of
brushes are cleaned with high-pressure water sprayer, which can clean low-e glass. There
is a pair of inclined air knives with baffle in the middle of the drying section, which can be
adjusted automatically according to the distance between two air knives with different
thickness of glass, thus ensuring the effect of air drying. The fan is 11KW.
The water system consists of two independent water circulation systems: the first level
water circulation system and the second level water circulation system. Water is pumped
out of the water tank by the water pump and sprayed onto the glass surface by the spray
pipe. After cleaning the glass with a brush, the water flows back to the tank for recycling.
The primary cleaning water tank is equipped with a water heating device with temperature
control, which can keep water temperature automatically. In order to ensure the cleaning
effect, the water conductivity must be no greater than 40 (including s, if the water quality
is bad, need to be equipped with water treatment equipment, water after water treatment
into the rinse water tank, recycling according to the above steps, the water treatment
device by the user should bring along their own.

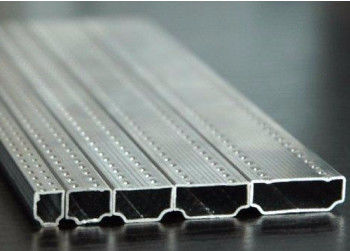

Product Description and advantage:
1. Material:3003 alloy aluminum
2.5.5mm side welding line,100% guarantee bendable.
3. wall thickness is within 0.30~ 0.35mm,and tolerance is ±0.025mm.
4. Appearance:Surface is Bright smooth and has no knocking. Air hole is uniform and in order.
5. It conforms to the standard requirement of “Insulating Glass
6.Size:5.5mm-35mm.
| Max. glass size | 2500mm*3500mm |
| Max glass size for filling gas | 2500mm*3200mm |
| Min. glass size | 280mm*450mm |
| Glass thickness | 3-15mm |
| Insulating glass thickness | 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |
| Washing brushes | 3 pairs of soft brushes with 0.1mm hair |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ 40KW |
| Dimension | 23500*3500*3700mm |
| Weight | 6500kg |
automatic button, in the work in the page the "two bo mode" and "inflatable model" are pressed,
and then click on the "thickness" or click on the "glass" parameters input and the thickness of
the glass and aluminum frame width (choose one), if you need to online automatic detection,
is the "pneumatic automatic detection" press, and set to gas concentration; If online testing is
not required, the "automatic inflation detection" is not followed, and the inflation time is set
according to the size and thickness of the glass and the width of the aluminum frame.
Automatic cleaning machine button. Clean the glass after entering checking frame machine,
automatic stop at the end of the photoelectric switch, the inspection glass cleaning quality, no
problem, if the glass stepping on foot switch, glass, into the next segment; If the glass is not
qualified, it will be removed after another trampling switch, transmission start.
first glass after inspection qualified to enter the pressure into the material section thickness
in photoelectric slow stop, start automatically measuring the thickness of the glass (if wrong
thickness mode does not stop here directly into the pressure plate section), thickness after
entering or piece of flat section, to set forward positioning distance, lateral positioning block
flip seal plate, conveyor belt, inverted the glass to the locating piece stop position, open the
side seal plate. Clamp closed to moment before pressing stop location, synchronous belt
transmission is raised, before pressing glass plate torque, chuck started action, will glass to
absorb, and then transmitted synchronous belt, open to the initial position before the board.
•Siemens 1200 PLC control system with fast working speed
•4 groups of storages (2 or 12 groups of storages can be optional)
•Automatically cut and feed aluminum spacers
•Automatically avoid the pins while bending and cutting
Bend spacer frames continuously
