Product Details:
|
| Product Name: | Molecular Sieve | Type: | Kation-DF-S |
|---|---|---|---|
| Diameter (mm): | 0.5-0.9 | Bulk Density (g/ml): | 0.74-0.80 |
| Static Water Absorption (%): | ≥20.0 | Crushing Strength (N): | ≥5 |
| Dust (Turbidity Meter) Ppm: | ≤30 | ||
| High Light: | 0.9mm molecular sieve dryer,Glass molecular sieve beads |
||

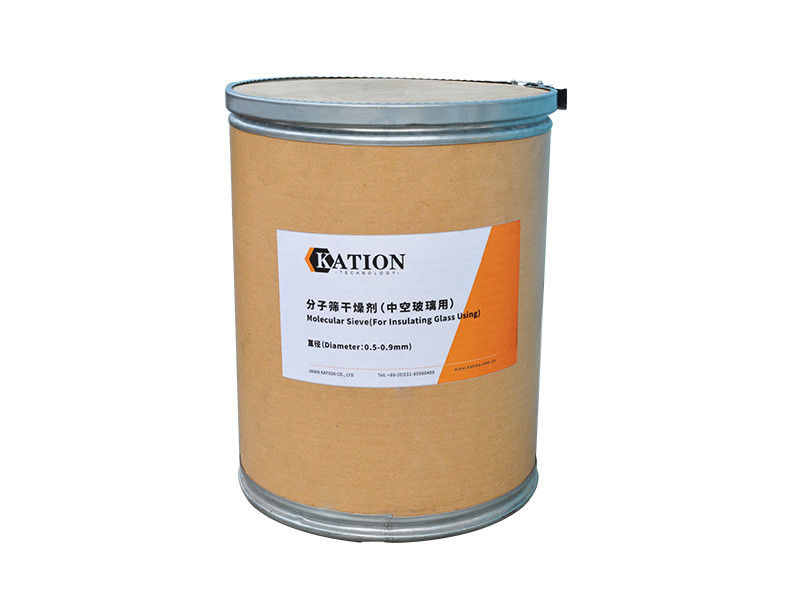

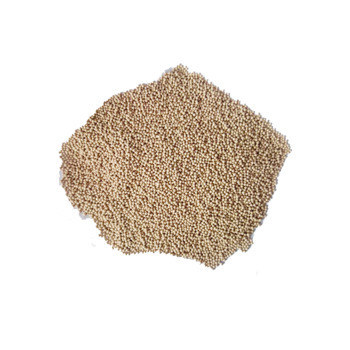

Molecular Sieve Kation-DF-S
The insulating glass special molecular sieve is specially designed for the insulating glass
industry, it has the characteristics of high selective adsorption,. low dust content, high
abrasion resistance and sufficient strength, it provides excellent comprehensive performance
for insulating glass, completely solve the problem of ordinary insulating glass molecular sieve
desiccant easy to make insulating glass explosion or dew caused by expansion or contraction,
fully guarantee the safety and energy saving of insulating glass.
Butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl.
The butyl extruder uses large electrical control panel which makes the operation more easier than
before. The conveyor of aluminum is controlled by frequency converter. The speed can be adjusted
from 0m/min to 47m/min, it is the fastest speed in China until now. The butyl extruder is very popular
with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system,
which makes the squeezing pressure more stable. The dispensing cylinder adopts vertical rotary
support system, making the refill of butyl more easier. The height of squeezing head can be adjusted
automatically according to different kinds of aluminum spacers. Finally, the butyl extruder has
reached the worldwide technology with the characteristic of complete functions and stable working mode.
Transfer unit consists of frequency control motor, belts and belt pulleys. The range of running
speed for belt is 5 ~ 47m / min; the height of beam can be adjusted by hand wheels, that locate
in the left side of machine( see from picture 1.2), after adjusting to the properly height, please
tighten front and back set screws. Structure of this part is simple and can be easily to adjust,
it also has quickly transfer speed, stable and reliable to operate.
In normal conditions, operator can independently finish gluing butyl on the two side of aluminum
frame within the size of 2000 * 2000 mm. When the size is more than 2000 mm, should be done
by two people. Assist operator should be away from the conveyor belt more than 200mm,
in order to avoid the danger of clamping and involving in the belt.
| Product name | Molecular Sieve | |
| Type | Kation-DF-S | Kation-DF-B |
| Diameter (mm) | 0.5-0.9 | 1.0-1.5 |
| Bulk density (g/ml) | 0.74-0.80 | 0.72-0.78 |
| Static water absorption (%) | ≥20.0 | ≥20.0 |
| Crushing strength (N) | ≥5 | ≥15 |
| Dust (Turbidity meter) ppm | ≤30 | ≤30 |
| Delta T (10 g /10ml) ℃ | ≥38 | ≥38 |
| Equilibrium N2 capacity (% ) | ≤0.2 | ≤0.2 |
| Dew point ℃ | <-73 | <-73 |
| Size ratio (%) | ≥98.0 | ≥98.0 |
| Water content (%) | ≤1.5 | ≤1.5 |
| Name | Brand | Original |
| PLC | KINCO | China |
| Valve | HAWE | German |
| Low voltage electrical apparatus | SIEMENS | German |
| Hydraulic and pneumatic supercharging system | MAXIMATOR | German |
| Frequency converter | KINCO | China |
| Pneumatic components(cylinder/valve) | ARTAC | Taiwan |
| Quick exhaust valve/Vacuum generator | SMC | Japan SMC |
| Travel light | OMRON | Japan |
| Optical fiber | OMRON | Japan |
