Product Details:
|
| Name: | Profile Bending Machine | System: | Siemens PLC |
|---|---|---|---|
| Speed: | 1M/20S | Aluminum Spacer Width: | 6A-27A |
| Angle Error: | ≤±1 | Dimensional Error: | ≤±0.5mm |
| Air Supply: | ≥0.65MPa | ||
| High Light: | 1M/20S spacer bar bending machine,Computer automatic bending machine |
||

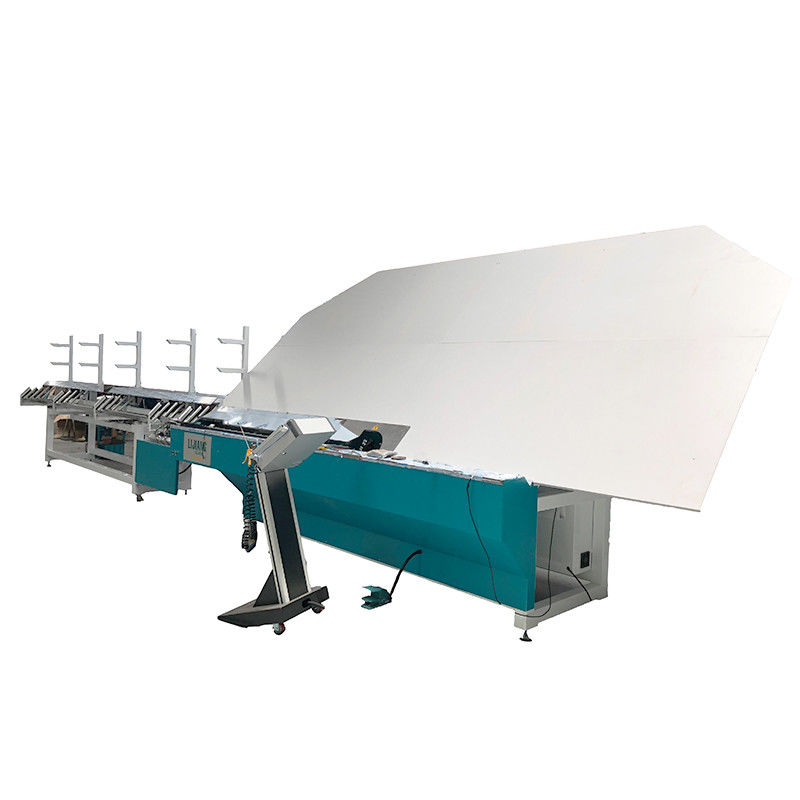

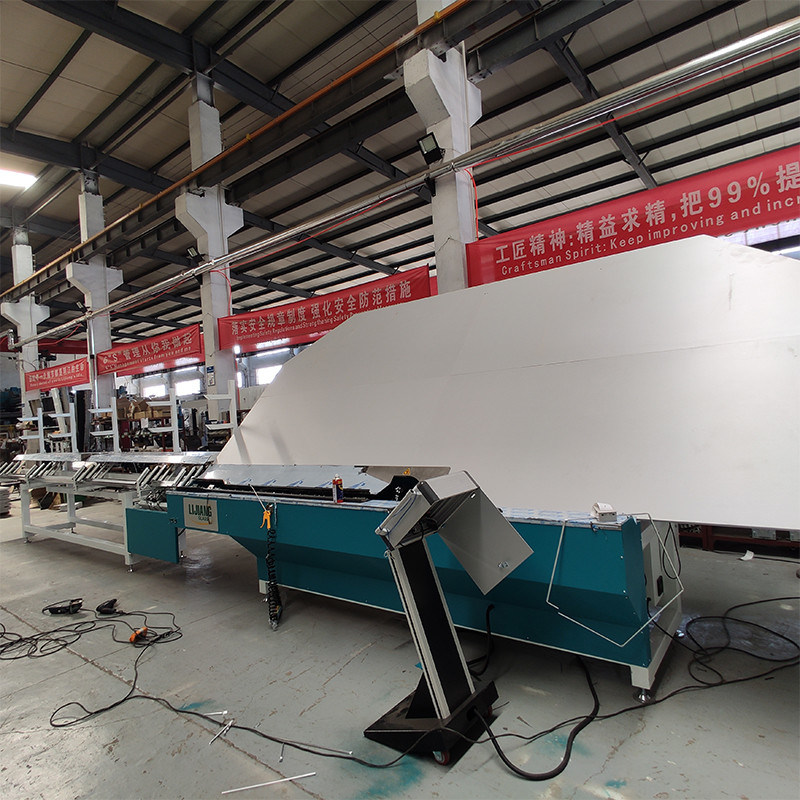

LJZW 2020A Automatic Bar Bending Machine Human-computer interaction interfaceInlet control system
Automatic aluminum frame bending machine is used to make special equipment for trough aluminum insulating glass, which replaces the original traditional production process, that is, the aluminum frame four edge pin assembly method. This equipment can complete a single aluminum strip to produce a variety of convex polygon aluminum frame, so as to enhance the strength of the aluminum frame, insulating glass sealing effect better, longer life.Main Performance features:Except start-stop operation, all operations are completed on the touch screen. Chinese operation interface, easy to operate, natural, simple and easy to understand.4 specifications, 32 sizes (8 for each size) of glass raw sheet size data can be set, and the number of aluminum frames of each size can be set to 9999 pieces in one continuous processing. According to each size of the equipment automatically calculate aluminum frame data, sort, continuous processing, efficiency and speed greatly improved.
The whole process of automatic feeding, can be added to the automatic trough replacement function
According to the size of aluminum frame automatically stepless adjustment of bending speed, avoid deformation of large frame frame, ensure the small frame high-speed continuous.
Aluminum strip automatic extension, aluminum strip joint intelligent avoidance design
High-speed continuous production function, operators only need to ensure that the material groove and take down the folded aluminum frame from the bending machine, bending machine processing to a set number of automatic stop
Sleep energy saving function and emergency shutdown protection
All functions can be manual, to meet the needs of debugging and emergency repair
On-line no material prompt, dormancy prompt, fault prompt, work prompt, no material in the process, automatic stop waiting for material, after loading continue to complete the process flow
Box data rationality judgment function, unreasonable data refuse processing and prompt
Automatic reset of boot system

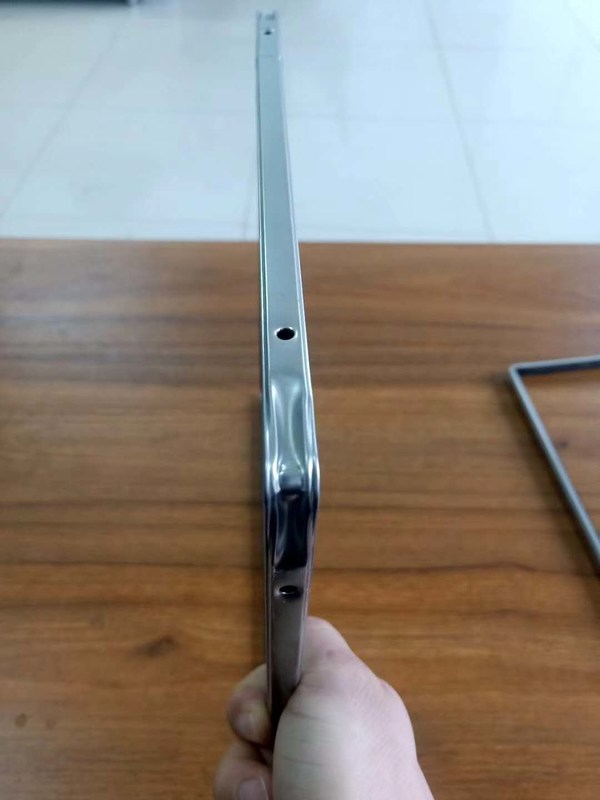

Automatic cutting of aluminum frame
The back plate adopts imported multi-layer industrial plate with excellent wear resistance and easy cleaning
All stand industrial spray treatment
Quick repair adjustment panel design

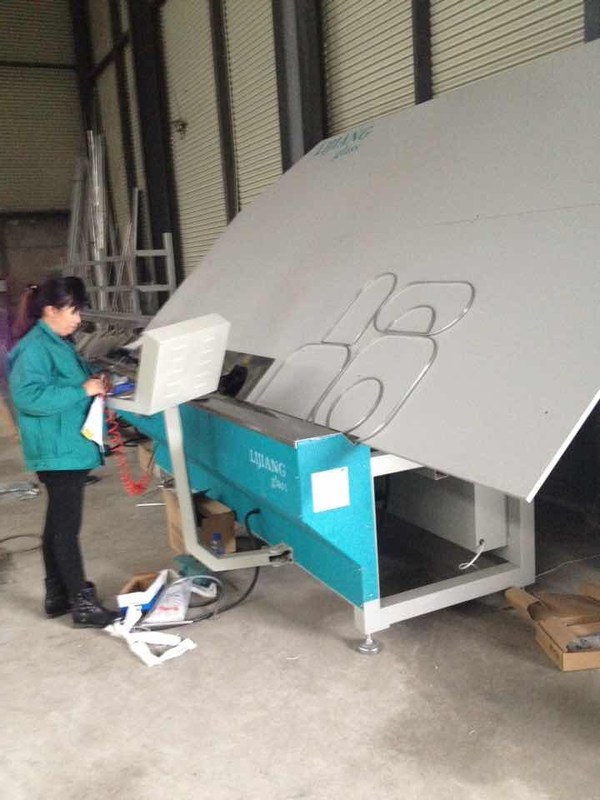

Optional installation of curved curved aluminum frame, shaped frame function
Output technology function, intelligent error correction prompt
| Max.bending size | 2000mm*2000mm (2500mm*2500mm) |
| Min.bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
| NAME | BRAND | NAME | BRAND |
| PLC | GERMAN SIEMENS | Triplet | Taiwan AIRTAC |
| Low voltage electrical apparatus | GERMAN SIEMENS | Cylinder | Taiwan AIRTAC |
| Servo motor | JAPAN FUJI | Solenoid valve | Taiwan AIRTAC |
| Servo driver | JAPAN FUJI | Switch power | Taiwan TEND |
| Relay | JAPAN OMRON | TOUCH SCREEN | Taiwan WEINVIEW |
| Sensor | KOREA AUTONICS | GUIDE | Taiwan TBI |
