Color Customized Accurate Angle ±0.5mm Spacer Bending Machine

Aluminum bar bending machine, color can be customized according to customers, bending Angle accurate, used for insulatin

Corner folding method can greatly improve the service life of middle glass, three less empty corner division accounts for % of the system, corner bending can be a good long system of airtight, lift the service life with the maturity of domestic rich frequency welding can bend aluminum bar, glass life

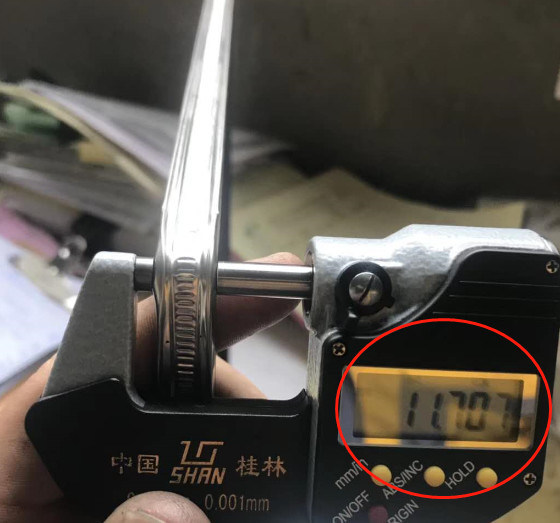

We for its aluminum bar shape ruler control in the man mm so for the glass beautiful and equipment is made than the station, glass ruler meter =2m, +3m aluminum bar should be made in the main 15m such folded aluminum shape inch to strictly hand the national standard requirements this is suitable for hollow home or equipment manufacturers. 2. Angle error control. During the bending process of aluminum strip, the Angle ruler will change due to the extrusion deformation of the tool head. If the adjustment of the nozzle clearance will cause the thickness of butyl glue coating changes, on the hollow quality. Therefore, the Angle error control after aluminum bar bending is also very important. This point is not reflected in the national standard. According to the practice experience and domestic and foreign application, we believe that the Angle error at least should be ≤0.2mm on the basis of the body error covering the aluminum bar. All glass factories should pay close attention to this Angle when selecting equipment

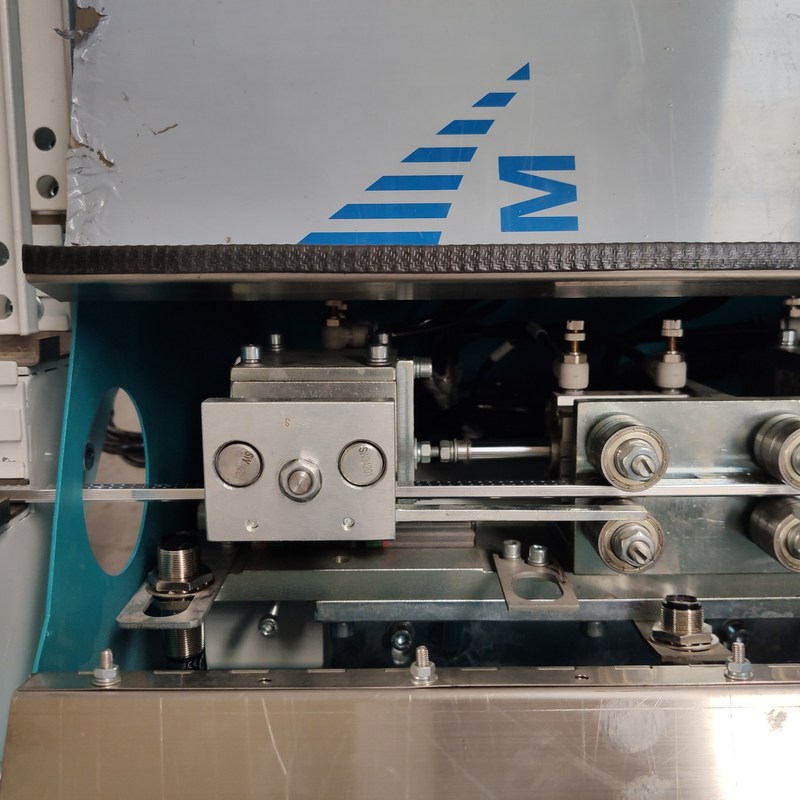

Equipment details

• Emergency stop switch: to control the power on and power off of the equipment, when a sudden error occurs, press the emergency stop switch and turn clockwise when opened.
  Start: control the device to start up, open the emergency stop switch, pause for 20 seconds, press the start button to start the device
  Pause: the device stops working temporarily.
  Reset: press the next reset button when the device is suspended to continue working.
  Alarm: the machine will beep when the equipment is wrong

• Dc 24V power supply:Convert ac 220V power supply to dc 24V power supply.
  The power switch:Main power switch of the machine.
  Ac contactor:It is used to connect, disconnect the circuit, or control the motor frequently.
  Servo motor controller:Precise control of servo motor by electrical signal.
  PLC:A program used to store a control device.
  Relay: on/off signal controlled by PLC

• n.
•
• Electrical parameters

• NAME	BRAND	NAME	BRAND
  PLC	GERMAN SIEMENS	Triplet	Taiwan AIRTAC
  Low voltage electrical apparatus	GERMAN SIEMENS	Cylinder	Taiwan AIRTAC
  Servo motor	GERMAN SIEMENS	Solenoid valve	Taiwan AIRTAC
  Servo driver	GERMAN SIEMENS	Switch power	Taiwan TEND
  Relay	JAPAN OMRON	TOUCH SCREEN	Taiwan WEINVIEW
  Sensor	KOREA AUTONICS	GUIDE	Taiwan TBI

•

• Max.bending size	2000mm*2000mm (2500mm*2500mm)
  Min.bending size	250mm*200mm
  Aluminum spacer width	5.5-27mm
  Dimensional error	±0.5mm
  Angle error	±1º
  Processing speed	≤26s
  Air supply	≥0.65MPa
  Total power	AC220/380V 50Hz 2.5KW
  Dimension	10500mm*2200mm*2600mm
