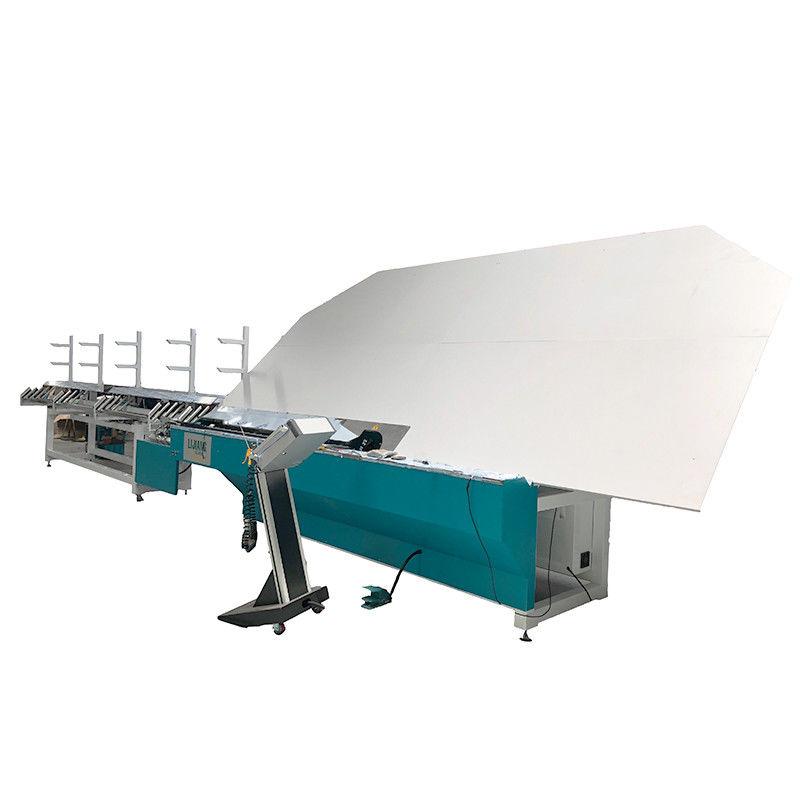

Energy Saving Double Glazing 27mm Glass Bending Machine

The latest bending machine products, high accuracy and precision

Hollow glass is by glass, aluminum, sealant three factors constitute a closed cavity, the failure of hollow glass is mainly the glass broken, two pieces of glass patch, and glass air condensation. There are many reasons for the breakage of glass and the patch of glass. The main reason for the breakage is that the problems occurred in the tempering process and the storage and installation process are not well controlled. The patch is mainly caused by the lack of control in the glass processing and the insufficient consideration of the air pressure in the use and processing places in the design processing process. We consider the use of one of the three elements of the spacer strip, the development of spacer strip to hollow glass product quality has a great promotion, is also an essential link

Application

For example, the equipment has the function of bending warm edge spacer
1. How do warm edges heat up
2. Set the temperature of the warm edge strip

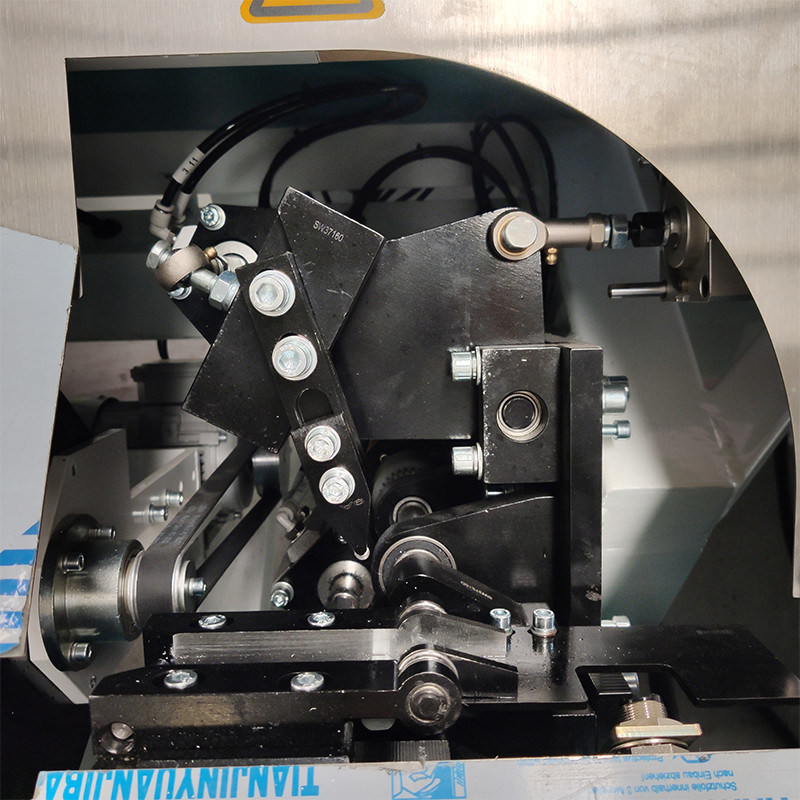

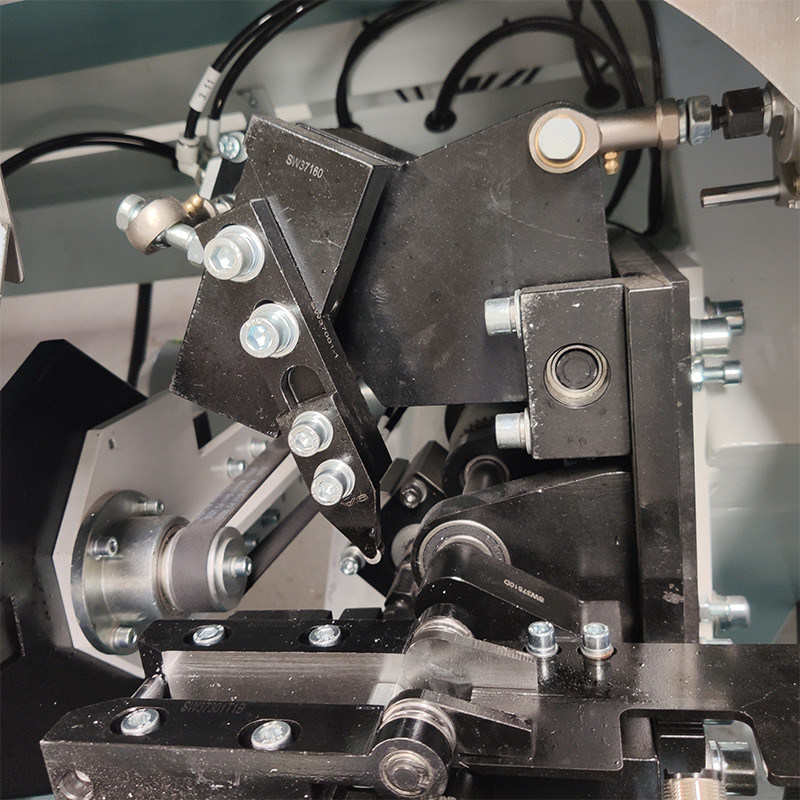

3. Adjustment of warm edge cutter head
4. Setting and action of warm edge parameters

Equipment details

• Emergency stop switch: to control the power on and power off of the equipment, when a sudden error occurs, press the emergency stop switch and turn clockwise when opened.
  Start: control the device to start up, open the emergency stop switch, pause for 20 seconds, press the start button to start the device
  Pause: the device stops working temporarily.
  Reset: press the next reset button when the device is suspended to continue working.
  Alarm: the machine will beep when the equipment is wrong

• Dc 24V power supply:Convert ac 220V power supply to dc 24V power supply.
  The power switch:Main power switch of the machine.
  Ac contactor:It is used to connect, disconnect the circuit, or control the motor frequently.
  Servo motor controller:Precise control of servo motor by electrical signal.
  PLC:A program used to store a control device.
  Relay: on/off signal controlled by PLC

• n.
•
• Electrical parameters

• NAME	BRAND	NAME	BRAND
  PLC	GERMAN SIEMENS	Triplet	Taiwan AIRTAC
  Low voltage electrical apparatus	GERMAN SIEMENS	Cylinder	Taiwan AIRTAC
  Servo motor	GERMAN SIEMENS	Solenoid valve	Taiwan AIRTAC
  Servo driver	GERMAN SIEMENS	Switch power	Taiwan TEND
  Relay	JAPAN OMRON	TOUCH SCREEN	Taiwan WEINVIEW
  Sensor	KOREA AUTONICS	GUIDE	Taiwan TBI

•

• Max.bending size	2000mm*2000mm (2500mm*2500mm)
  Min.bending size	250mm*200mm
  Aluminum spacer width	5.5-27mm
  Dimensional error	±0.5mm
  Angle error	±1º
  Processing speed	≤26s
  Air supply	≥0.65MPa
  Total power	AC220/380V 50Hz 2.5KW
  Dimension	10500mm*2200mm*2600mm
