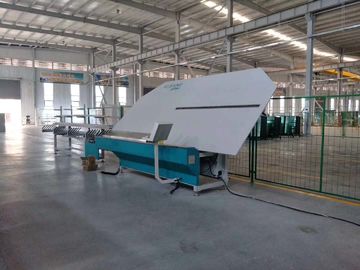

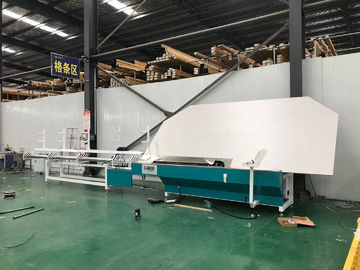

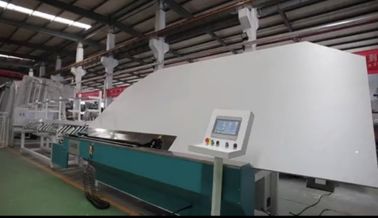

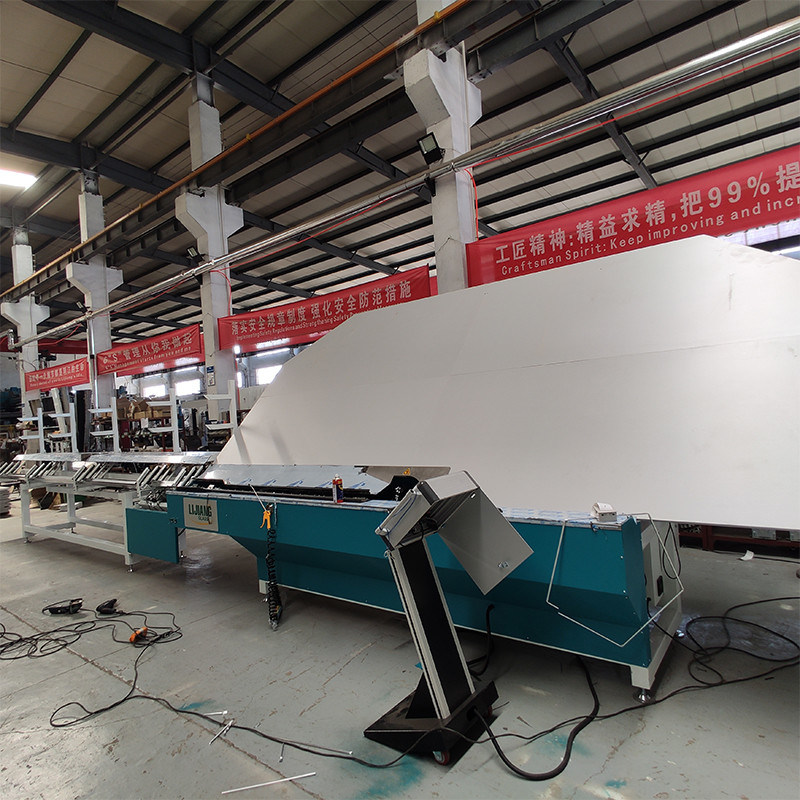

6mm - 27mm Automatic Aluminum Spacer Bars Bending Machine For Insulating Glass

Equipment details

• Using Siemens PLC control system
• There are 4 Siemens servos
• Using 4 sets of shelves, you can store more gaskets of different sizes. Replace different racks with Siemens servers.
• Automatically cutting and feeding aluminum gasket
• Continuously curved spacer frame
• Automatically avoid connection angle when bending and cutting
• The machine grabs the shim from the top instead of the shim from the bottom, thus solving the old commutation problem.
• Using industrial computer technology, workers can draw on-site on the industrial computer and directly bend the drawn graphics.
• Special manipulator device for bending large spacers

Application

Automatic gasket bending machine is a special equipment for manufacturing hollow glass aluminum frame instead of traditional manufacturing technology. The equipment can produce one aluminum band at a time, which can make a variety of convex polygonal aluminum frames, thereby enhancing the strength of the aluminum frame and making the insulating glass sealing effect better.

Technical data

Electrical parameters

Equipment details

Heavy connectors are easy to install and debug, safe

Spare parts of all machine have ID codes.

USB input function, directly read excel format files, etc. (optional)

Connect to ERP system (optional)

It can bend aluminum gasket, Technoform, Alupro, Thermix, temperature spacer (Swisspacer) and stainless steel (optional), etc.

We have a special soft system that can avoid the distance of 120mm to reduce waste. For example, if the length of the gusset is 60mm, the gusset will appear when the program calculates the right angle. When you start bending the rectangular frame, you first need to transport 120mm, then cut 120mm, and then step on the pedal to bend the frame, which will waste 120mm.
