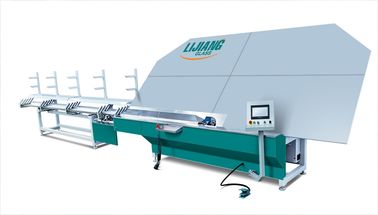

Insulating Glass Spacer Printing Aluminum Strip Bending Machine

Aluminum strip bending machine for insulating glass with Spacer printing function

Automatic aluminum spacer bending machine is controlled by PLC. By virtue of the mode of

human-machine interactive data input on the touch screen, the facility can get the expected

parameter data in different specifications of rectangular aluminum frames, or the convex

polygon’s edge and corner data composed of arc-shaped section or straight flange not more

than 8 edges. Simultaneously, acquire the quantity of the aluminum frames that are required

to be processed, as well as the parameter of other control equipment in accurate operation,

which essentially satisfy the required shapes of the current insulating glass.

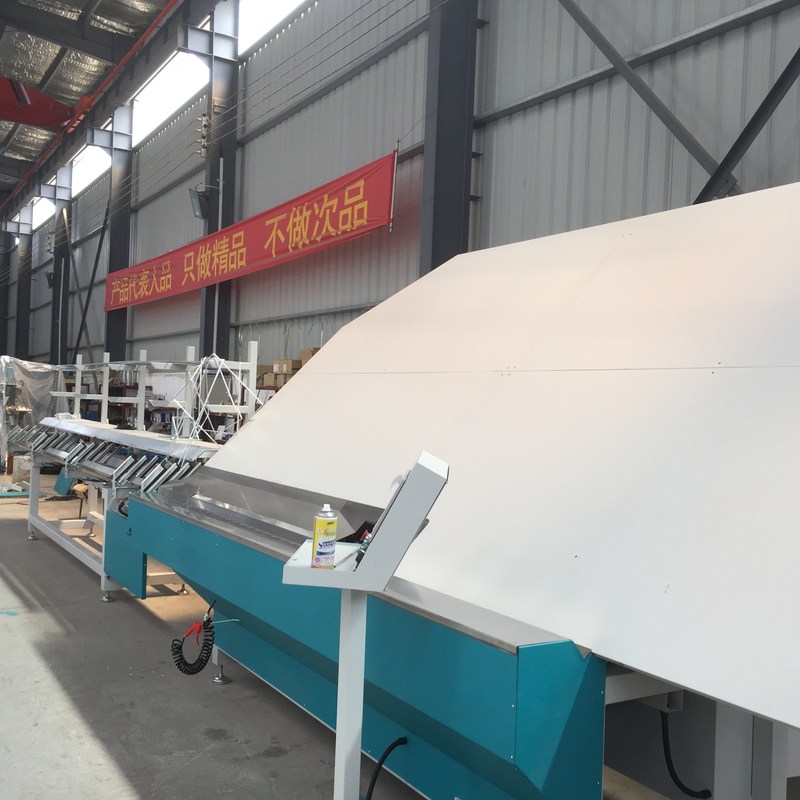

Storage rack includes four movable storage chests, charging platform, trough-changing

mechanism, trough examination and other systems and components.

Storage rack charging platform mechanism of changing rack Auto feeding

Trough: The four storage troughs can save one to four types of aluminum spacers with the

same width or different widths, supplying for automatic access when the equipment is

operating. The four troughs can be freely in switching the position;

(2) Charging platform: the charging platform will provide operators with an operating platform

to add materials to the trough;

(3) Automatic feeding system: when the equipment is in operation, automatic feeding system

will convey the aluminum spacer to the ready position; in the process of bending, if the

aluminum spacer used for bending has reached the end, then automatic feeding system

will complete the following actions of the aluminum spacer to ensure the continuity of

bending work and realize the function of no tailing;

(4) Trough-changing mechanism: if the aluminum strips in the pre-trough are done, then

it is available to operate material-changing system to change into the trough with materials.

(5) Foot switch of trough changing: it is used to open the locked device, and operate

trough-changing mechanism.

Bending stainless steel ( Optional)

Bending warm spacer (Optional)

Spare parts of all machine have ID codes.
