Product Details:
|
| Name: | Automatic Aluminum Profile Bending Machine | Usage: | Insulating Glass Processing |
|---|---|---|---|
| Aluminum Spacer Width: | 6A-27A | Max.bending Spacer Size: | 2000*2000mm |
| Min.bending Spacer Size: | 250mm*200mm | Angle Error: | Within 1 |
| Dimensional Error: | Within 0.5mm | Air Supply: | >0.65MPa |
| Speed: | 0-47m/min | Diemension: | 10500*2200*2600mm |
| High Light: | 27A aluminum bending machine,Touch Screen bar bending machine |
||
Product overview of Aluminum profile Bending Machine
Automatic Aluminum spacer bending machine is used to apply Siemens control system and touch screen operation to achieve automatically bend aluminum and warm edge spacers of insulating glass evenly, and the machine has functions of size optimization calculation, evading connected pieces and connecting automatically.Automatic bending machine is necessary equipment in insulating glass productions.
Main Features of spacer bending machine
1.Four or Twelve different spacer size storage units can choose
2.German siemens plc control system,touch screen interface.
3. Support continuous bending , it automatically avoid spacer -connection while bending and cutting
4.Heavy duty connectors ,convenience and safety for installation and debugging
5.The special machine hand device is used to bend big spacer frame
6. Aluminum spacers are available in different specifications and sizes
7.Spare parts of all machine have ID code ,convenient for after-sale service
9.Automatic spacer bending machine can bend aluminum spacer /technoform /Alupro /swisspacer/ stainless steel /thermix (optional)
10.USB input function ,it can read the excel data directly
Main technical parameter of Aluminum frame Bending Machine
| Max.bending size | 2000mm*2000mm |
| Min.bending size | 250mm*200mm |
| Aluminum spacer width | 6-27A |
| Dimensional error: | ≤±0.5mm |
| Angle error | ≤±1º |
| Speed | 0-47m/min |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |

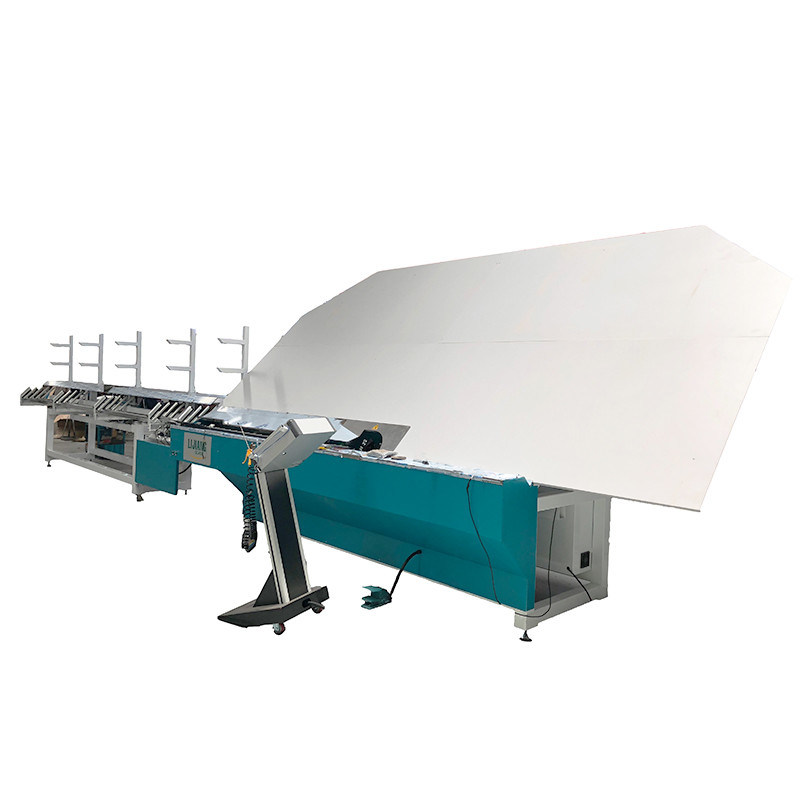

Detail of Aluminum bar Bending Machine
Other related products
Vertical Insulating Glass Sealing Robot LJTJ2540
Main Features:
• Min & Max glass sizes can be optional
• Adopt 8 servo motors
• Adopt Japan servo control system with stable performance
• Automatically measure glass size, glue depth and glue speed with linear adjustment
• Adopt timing belt to keep smooth convey with accurate position
• Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working
• The glass corners are full without air bubbles, smooth surface
|
Max.glass size |
2500mm |
|
Min.glass size |
170mm*400mm (2000mm machine) |
|
Glass thickness |
12-56mm |
|
Working speed |
5-40m/min |
|
Air pressure |
0.6-0.8MPa |
|
Squeeze pressure |
<350kg/m³ |
|
Plane angle |
6°- 9° |
|
Max glass weight |
400kg |
|
Voltage power |
380V 12kw |
|
Overall dimension |
8700mm*2000mm*3500mm |
