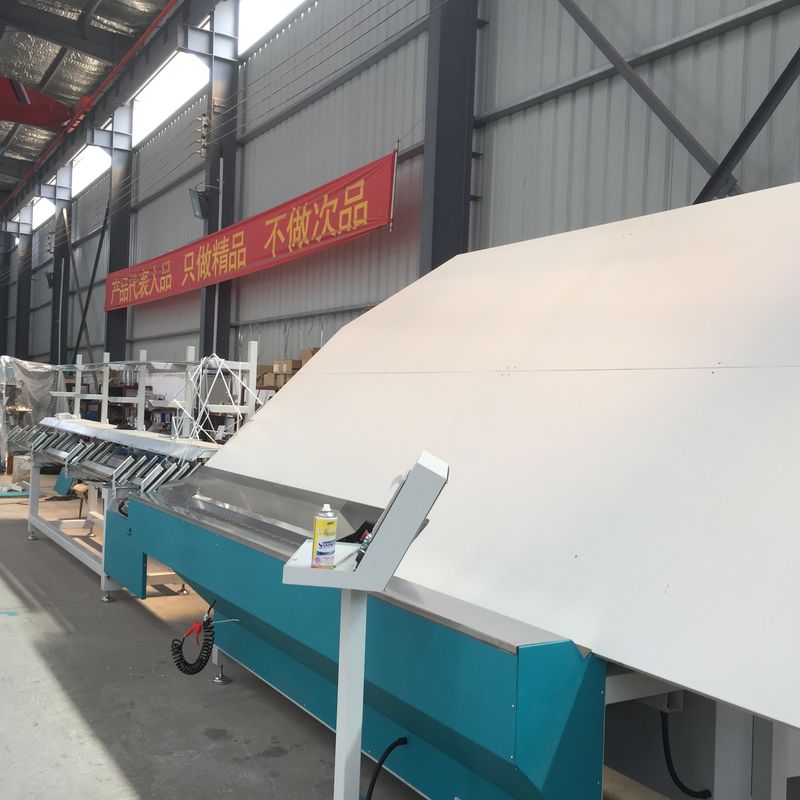

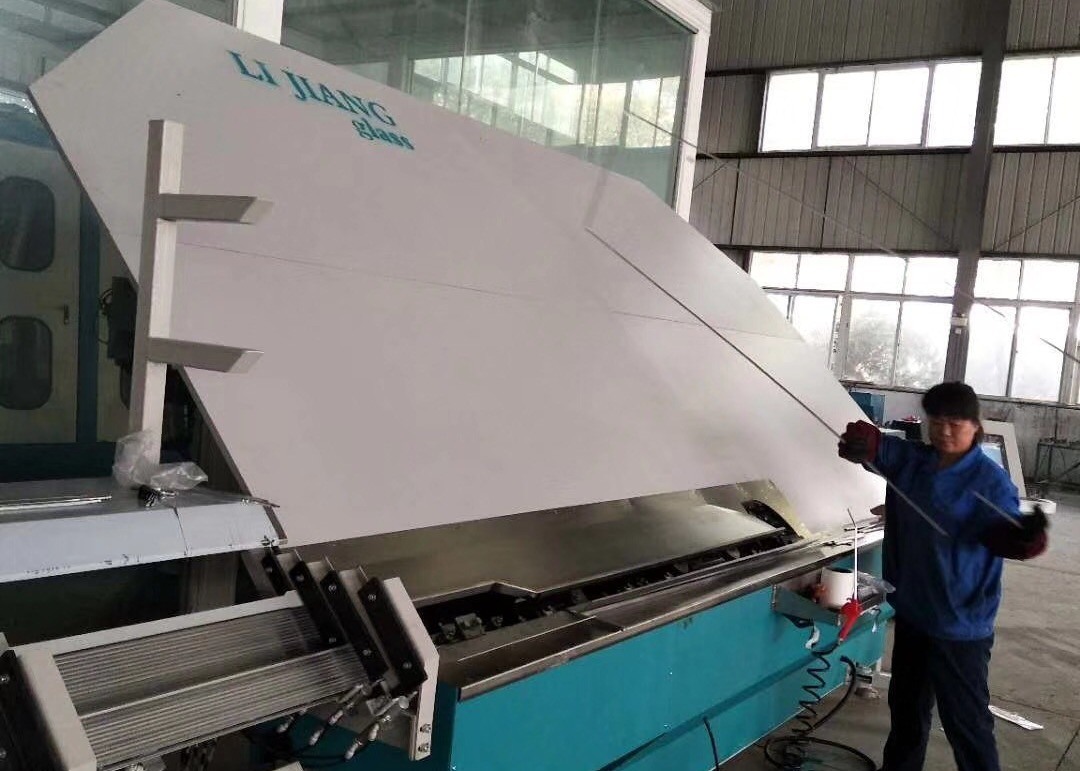

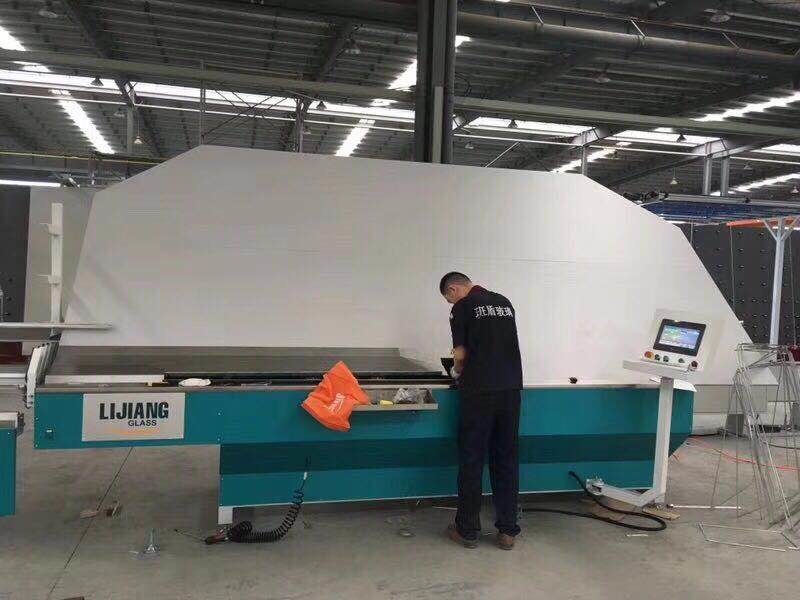

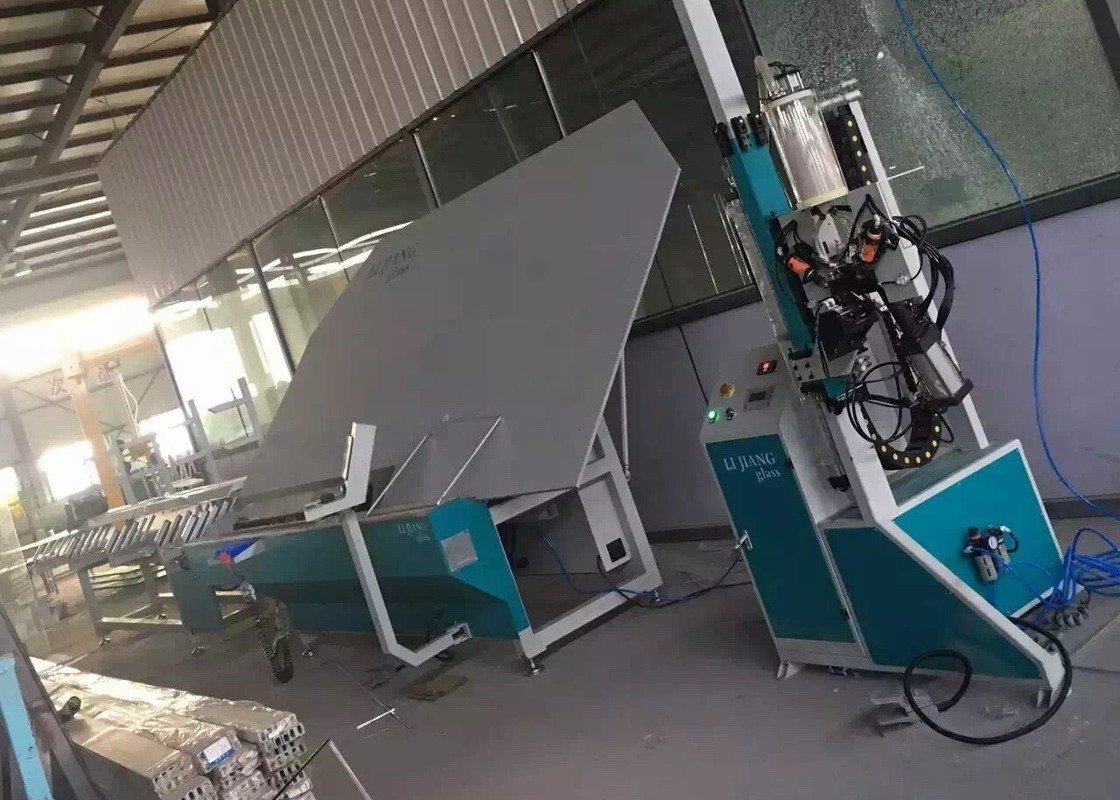

Smart double glazing spacer bending machine for sale with Siemens control system

Application

The automatic gasket bending machine is a special device that replaces the hollow glass aluminum frame of hollow glass manufacturing technology. The device can create a variety of convex polygonal aluminum frames from one aluminum bar at a time. This improves the strength of the aluminum frame and improves the hermeticity of the insulating glass.

Equipment details

• Adopted Si Siemens PLC control system.
• 4 There are 4 Siemens servos.
• 4 Uses 4 sets of racks that can store different size spacers. Use Siemens servos to replace different racks.
• aluminum Automatic cutting and supply of aluminum spacers.
• Continuously bent spacer frame.
• bending avoids connection corners automatically when bending and cutting.
• The machine will grab the spacer from the top instead of from the bottom, solving the classic flip problem.
• Workers of industrial computers can be rendered on-site using industrial computer technology and the drawn graphics can be bent directly.
• special machine hand device is used to bend big big spacer frame.

Technical data

Electrical parameters

 Equipment details

• Heavy duty connectors is convenience and safety for installation and debugging

• Spare parts of all machine have ID codes.

• Precise bending effect, corner error less than 0.1mm.

• USB input function, directly read excel format files, etc. (optional)
• Connect to ERP system (optional)
• It can bend aluminum gasket, Technoform, Alupro, Thermix, temperature spacer (Swisspacer) and stainless steel (optional), etc.
• We have a special soft system that can avoid a distance of 120mm to reduce waste. For example, if the length of the gusset is 60mm, the gusset will appear when the program calculates the right angle. When you start to bend the rectangular frame, you first need to transport 120mm, then cut 120mm, and then step on the pedal to bend the frame, which will waste 120mm.
