±0.5mm Dimensional Error Spacer Bending Machine

2020 new production LJZW2020A spacer bending machine , Aluminum spacer LIJIANG

                                      ALL THE IG PRODUCTS ARE 20% OFF ON MAY,2020

JIANG production line adopts the latest technology, its main purpose is to create high-end quality, to provide customers with the latest production technology, improve production efficiency, save production costs and produce maximum benefits. Now LIJIANG mainly has two kinds of IG line with different two different technologies. One (Picture 1) uses transfer wheels to transport glass, and the other is a new technology that uses air-floating technology to transport glass. This new technology is to prevent the glass from being contaminated by wheels and leaving traces, so new technology is used to improve the IG production high quality.

Application

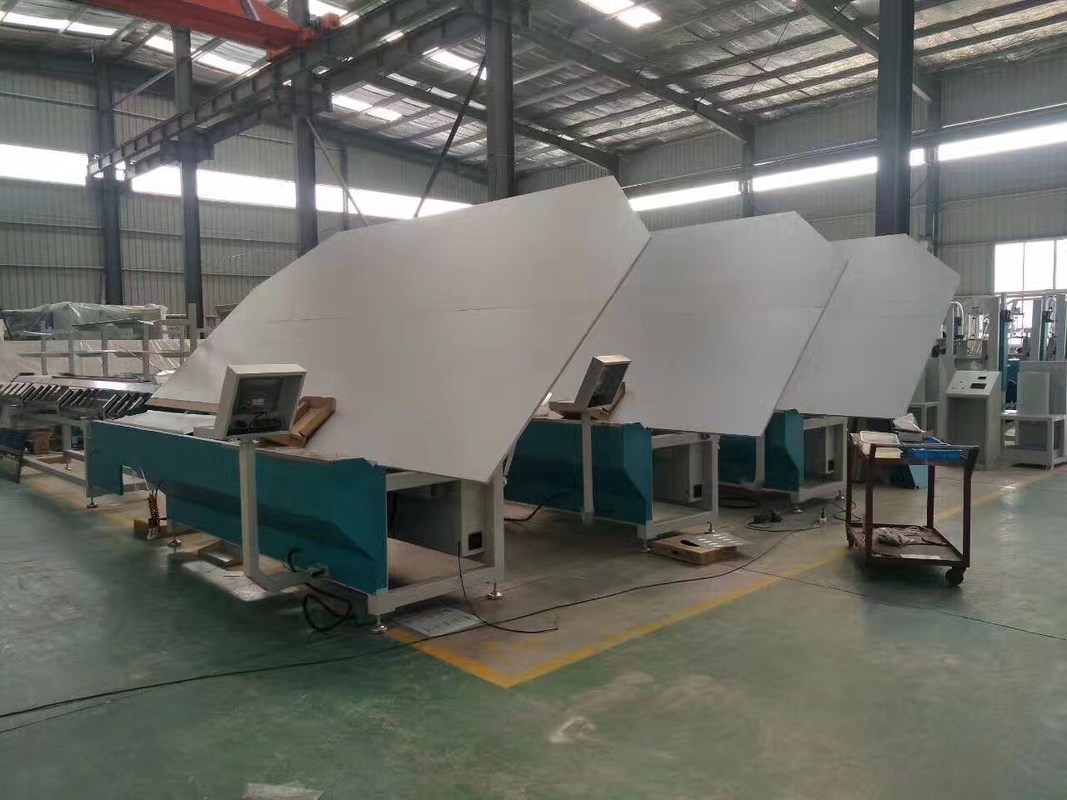

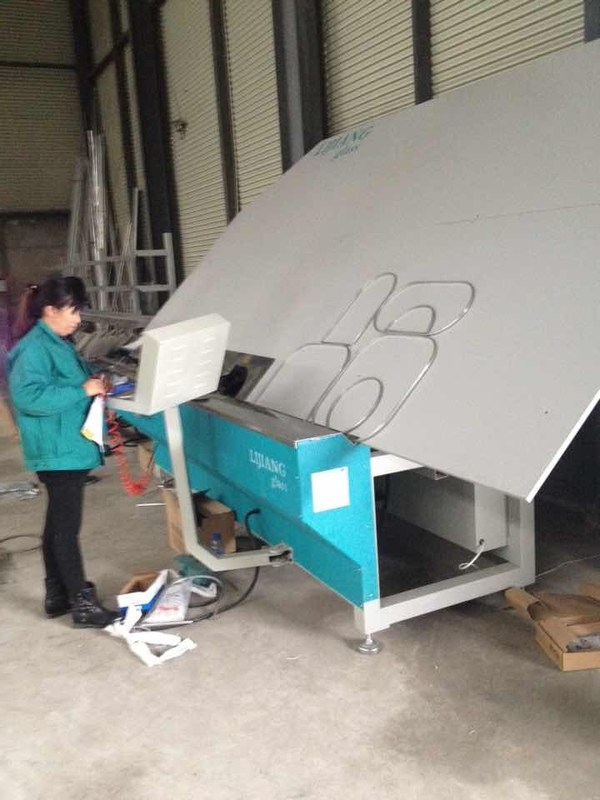

Automatic spacer bending machine is a special equipment for making aluminum frames of insulating glass, which replaces the traditional fabrication technology. This equipment can make a variety of convex polygonal aluminum frames by one aluminum strip in one time, thus strengthening the strength of the aluminum frame, making the sealing effect of the insulating glass more better.

Equipment details

• Adopt Siemens PLC control system
• There are 4 Siemens servo
• Adopt 12 sets of racks which could storage more different sizes of spacers. Use Siemens servo to change different racks.
• Automatically cut and feed aluminum spacers

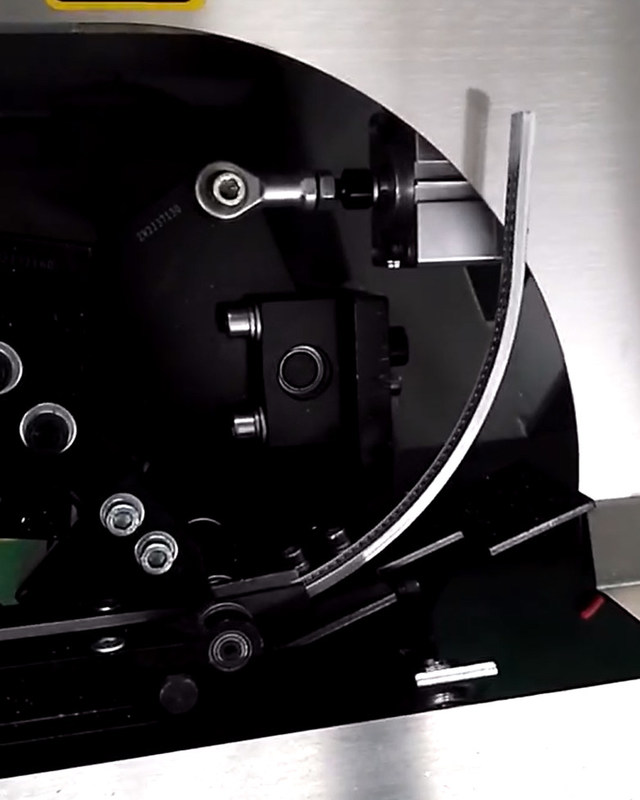

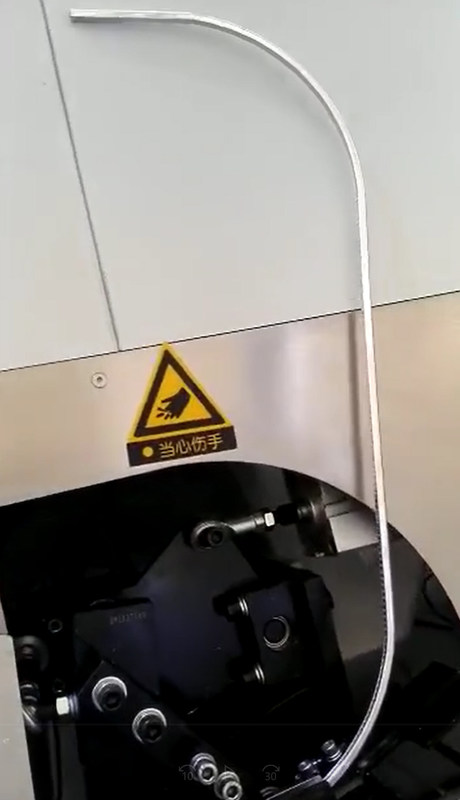

• Bend shaped spacer frames continuously
• Automatically avoid the connecting corner while bending and cutting
• The machine grabs the spacer from the top instead of grabbing the spacer from bottom, solving the old-fashioned reversing problem.
• Using industrial computer technology which could realize the on-site drawing by workers on the industrial computer and directly bending the drawn graphics.
• The special machine hand device is used to bend big spacer frame

• USB input function, read the excel format file directly etc (Optional)

• Precise bending effect, corner error less than 0.1mm.

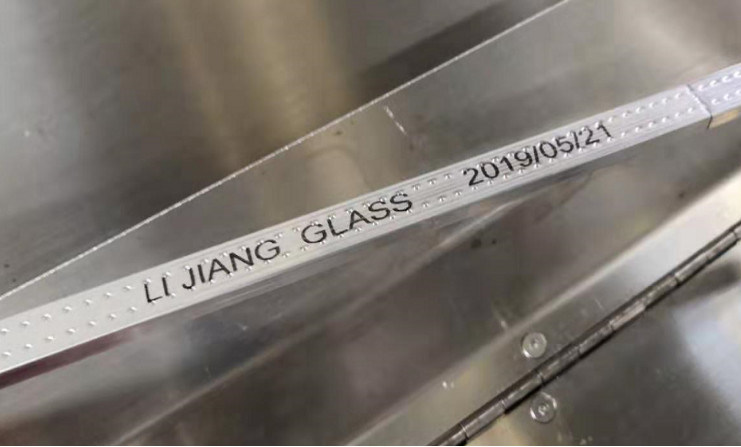

• Spacer printing code function (Optional)
• Connect to ERP system (Optional)
• Heavy duty connectors is convenience and safety for installation and debugging

• Spare parts of all machine have ID codes.
• Automatic drill gas filling hole (Optional)
• Printing paper label sticker function (Optional),could remove it easily.
• Can bend aluminum spacer ,Technoform, Alupro, Thermix, warm spacer (Swisspacer) and stainless steel ( Optional) and so on.
• Electrical parameters
•

• Technical data

• Max.bending size	2000mm*2000mm (2500mm*2500mm)
  Min.bending size	250mm*200mm
  Aluminum spacer width	5.5-27mm
  Dimensional error	±0.5mm
  Angle error	±1º
  Processing speed	≤26s
  Air supply	≥0.65MPa
  Total power	AC220/380V 50Hz 2.5KW
  Dimension	10500mm*2200mm*2600mm
