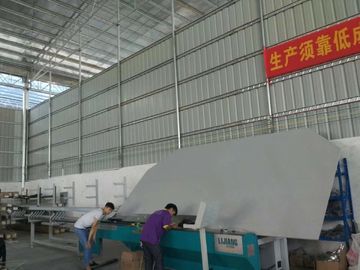

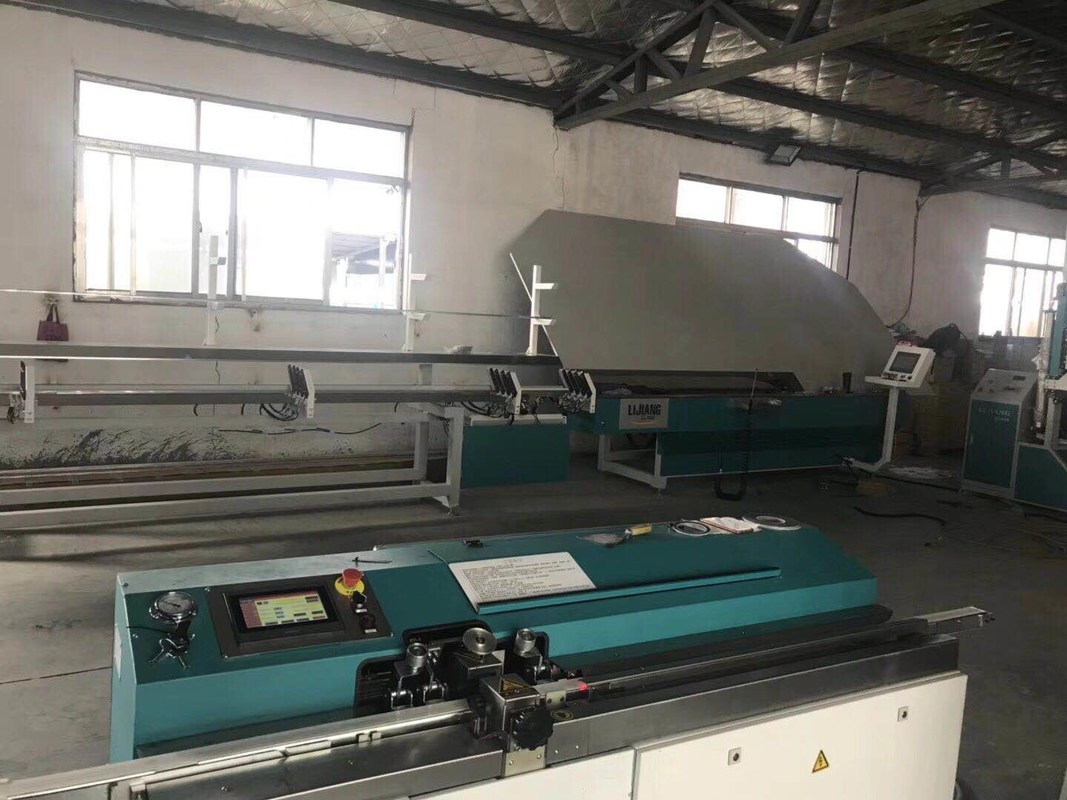

I Line Glass Dustry Aluminum Spacer Bar Bending Machine

LIJIANG GREEN LJZW2020A high accurate i line,glass dustry Aluminum spacer bending machine ,easy and accurate

In the process of using the touch screen, be careful to operate.Cannot use any other object on the touch screen hit and knock against in order to avoid damage to internal components.Operation must comply with the principle of work, to prevent the resulting personal injury or machine damage!

The touchscreen screen has both Chinese and English languages, and you can click the button in the lower right corner of the screen to switch between two languages.

Application

In this picture:

<Total Production> displays the total production of the production line, click on the <Clear> button, the count is cleared.

<Double glass total production> shows the total output of double glass production line (including the stepped glass).

<Triple glass total production> shows the total output of double glass production line.

<Shaped glass total production > shows the total production of shaped glass.

<Total daily output> displays the total daily production of the line.

<Double glass daily production> shows the total production of double glass one day.

<Shaped glass daily production> shows the total production of shaped glass one day.

<Triple glass daily production> shows the total production of triple glass one day.

Equipment details

• Adopt Siemens PLC control system
• There are 4 Siemens servo

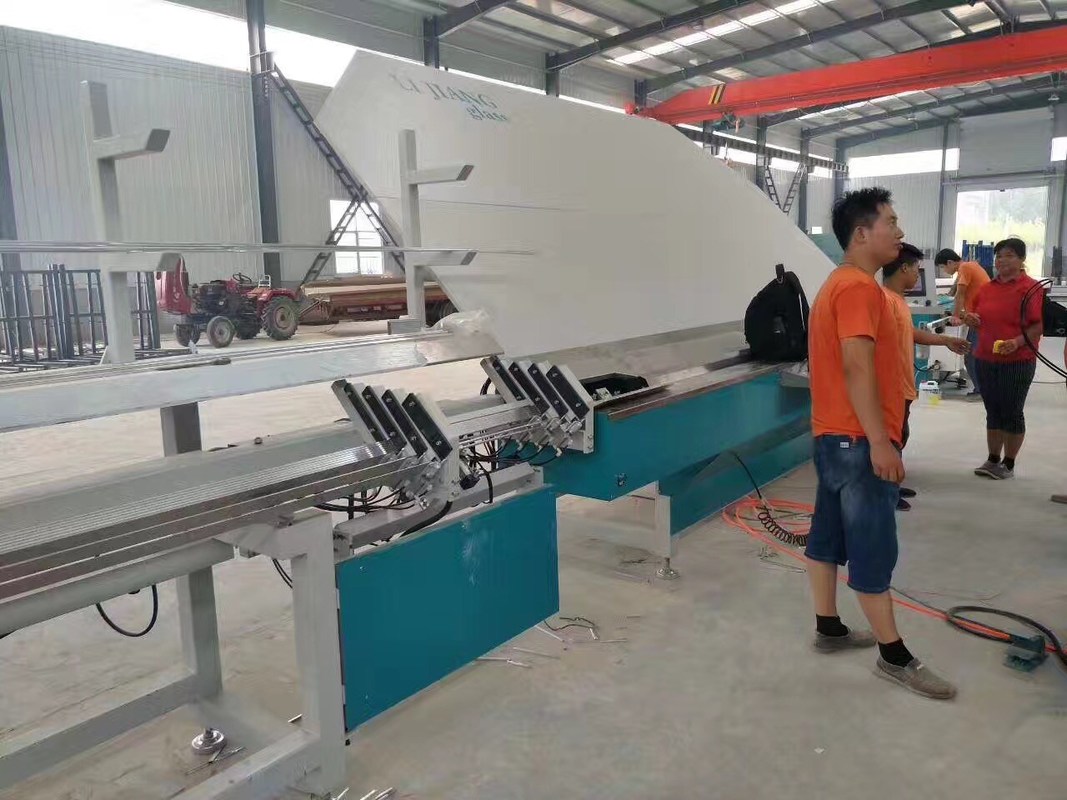

• Adopt 12 sets of racks which could storage more different sizes of spacers. Use Siemens servo to change different racks.
• Automatically cut and feed aluminum spacers
• Bend shaped spacer frames continuously
• Automatically avoid the connecting corner while bending and cutting
• The machine grabs the spacer from the top instead of grabbing the spacer from bottom, solving the old-fashioned reversing problem.
• Using industrial computer technology which could realize the on-site drawing by workers on the industrial computer and directly bending the drawn graphics.

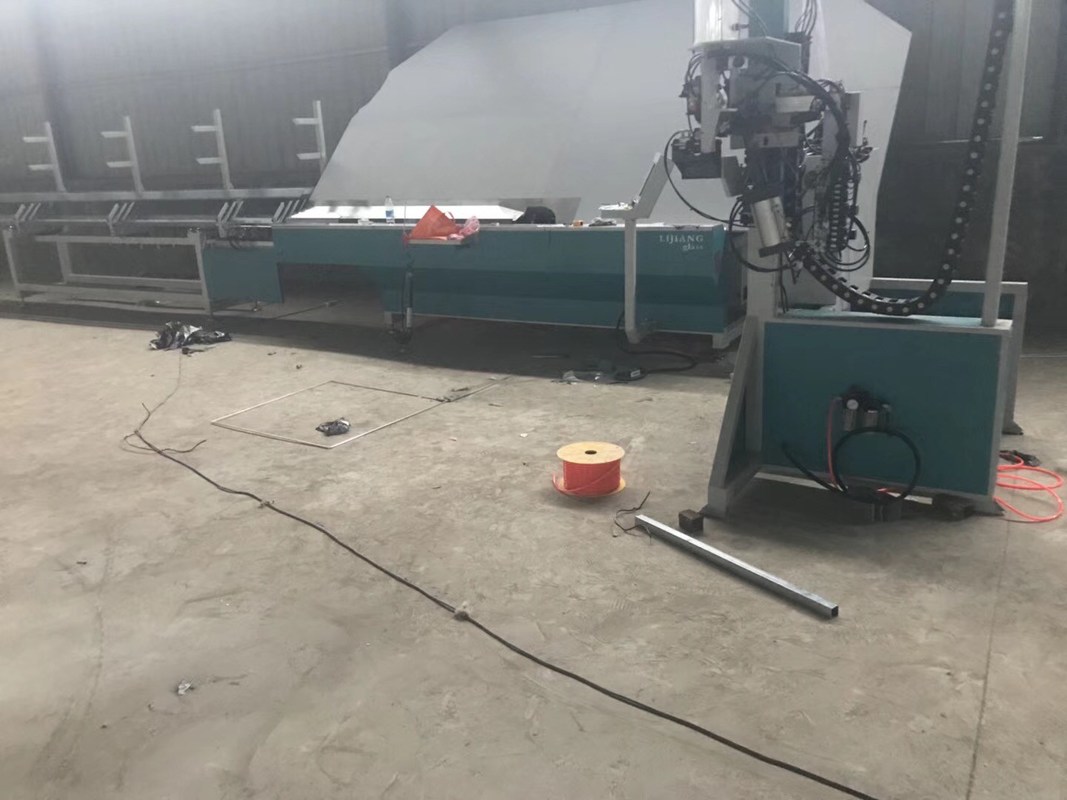

• The special machine hand device is used to bend big spacer frame

This screen shows the current state of production function of the machine.

"Cleaning speed" is the set of cleaning machine transmission speed.

"Upper frame setting time" refers to the delay stopping time of the second glass at the glass locating device of the aluminum frame assembly section.

"Set value of aeration concentration" refers to the value of the aeration concentration to be reached in the automatic detection mode of aeration. After reaching the set concentration, the gas-filled compaction output will be stopped.

"Manual inflating time setting" refers to the inflating time required for inflation in the non-inflating automatic detection mode.

"Glass parameters" refers to the non thickness mode manually input the parameters of the glass thickness and width of aluminum frame, provide servo press and automatic pneumatic parameters, click on the glass parameters set into the picture:

•

• NAME	BRAND	NAME	BRAND
  PLC	GERMAN SIEMENS	Triplet	Taiwan AIRTAC
  Low voltage electrical apparatus	GERMAN SIEMENS	Cylinder	Taiwan AIRTAC
  Servo motor	GERMAN SIEMENS	Solenoid valve	Taiwan AIRTAC
  Servo driver	GERMAN SIEMENS	Switch power	Taiwan TEND
  Relay	JAPAN OMRON	TOUCH SCREEN	Taiwan WEINVIEW
  Sensor	KOREA AUTONICS	GUIDE	Taiwan TBI

• Technical data

• Max.bending size	2000mm*2000mm (2500mm*2500mm)
  Min.bending size	250mm*200mm
  Aluminum spacer width	5.5-27mm
  Dimensional error	±0.5mm
  Angle error	±1º
  Processing speed	≤26s
  Air supply	≥0.65MPa
  Total power	AC220/380V 50Hz 2.5KW
  Dimension	10500mm*2200mm*2600mm
