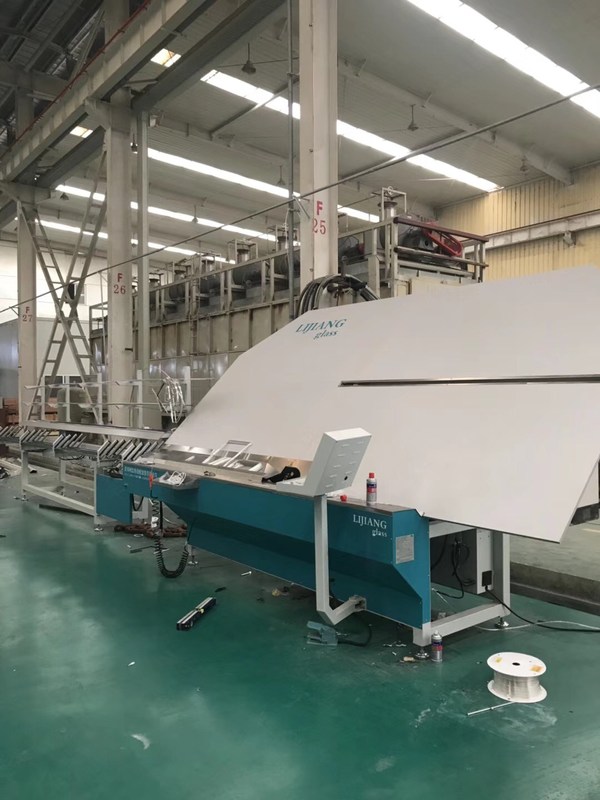

250mm*200mm Bending Insulating Glass Production Line

LJZW2020A insulating glass production line,glass dustry Aluminum spacer bending machine ,easy and accurate

                                      ALL THE IG PRODUCTS ARE 20% OFF ON MAY,2020

cleaning and drying section tilted vertical placement. The control box is arranged on the outside of the cleaning section for easy operation. The cleaning section and water tank are made of stainless steel and corrosion resistant materials. The transfer roller is acid-alkali rubber roller. The cleaning and drying section adopts stepless frequency conversion speed regulation, and the glass can run smoothly at the appropriate speed. In the cleaning section, three pairs of brushes are cleaned with high-pressure water sprayer, which can clean low-e glass. There is a pair of inclined air knives with baffle in the middle of the drying section, which can be adjusted automatically according to the distance between two air knives with different thickness of glass, thus ensuring the effect of air drying. The fan is 11KW.

The water system consists of two independent water circulation systems: the first level water circulation system and the second level water circulation system. Water is pumped out of the water tank by the water pump and sprayed onto the glass surface by the spray pipe. After cleaning the glass with a brush, the water flows back to the tank for recycling. The primary cleaning water tank is equipped with a water heating device with temperature control, which can keep water temperature automatically. In order to ensure the cleaning effect, the water conductivity must be no greater than 40 (including s, if the water quality is bad, need to be equipped with water treatment equipment, water after water treatment into the rinse water tank, recycling according to the above steps, the water treatment device by the user should bring along their own.

Application

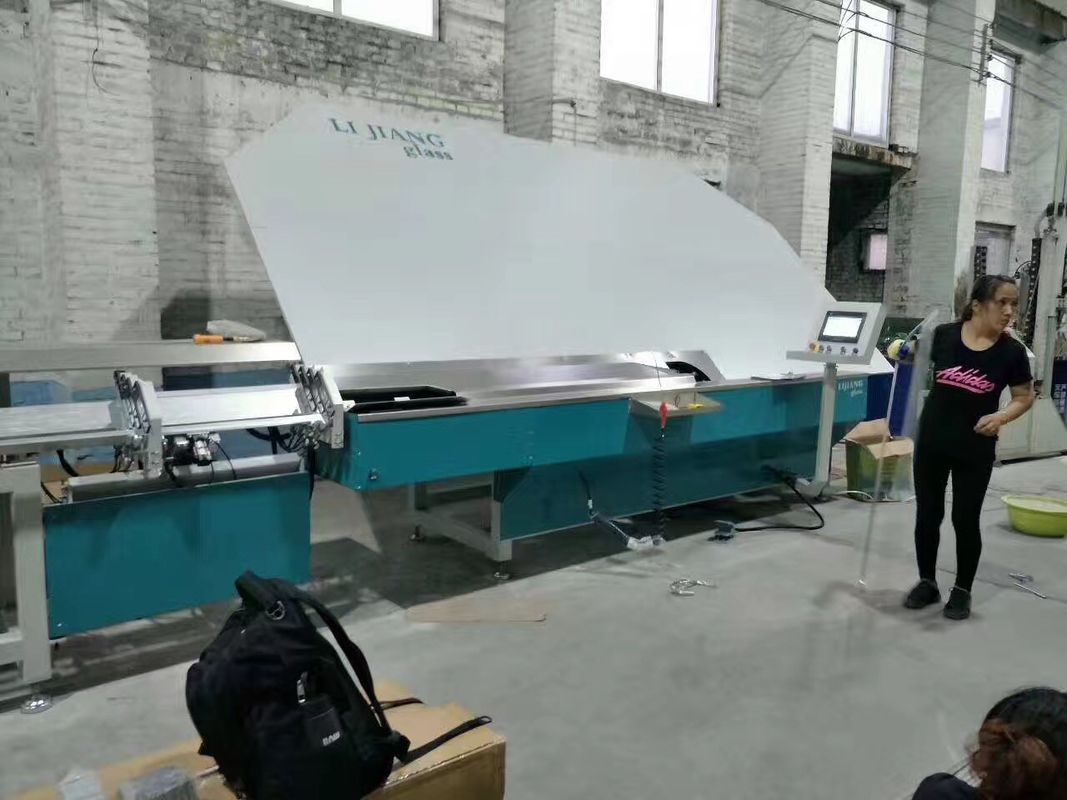

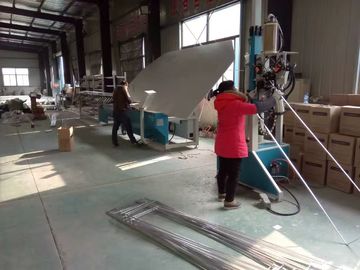

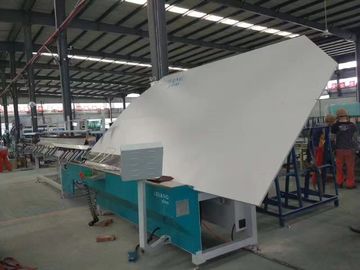

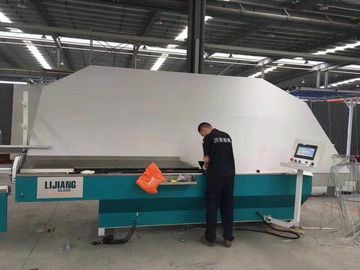

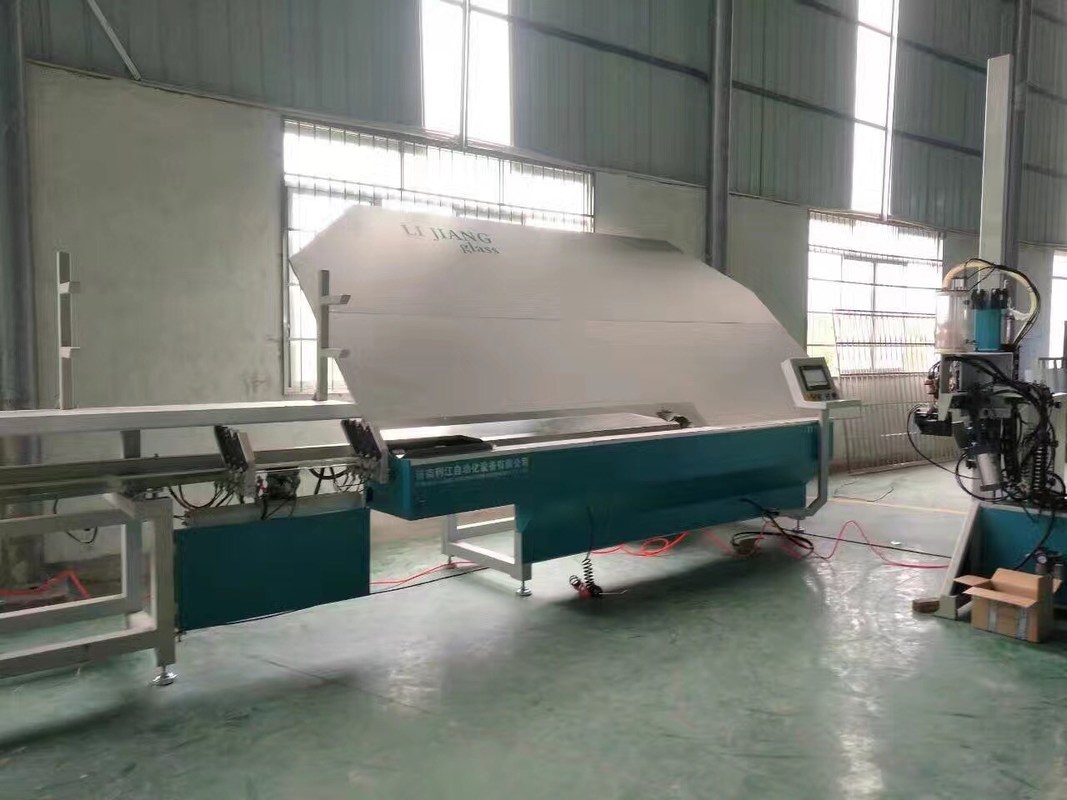

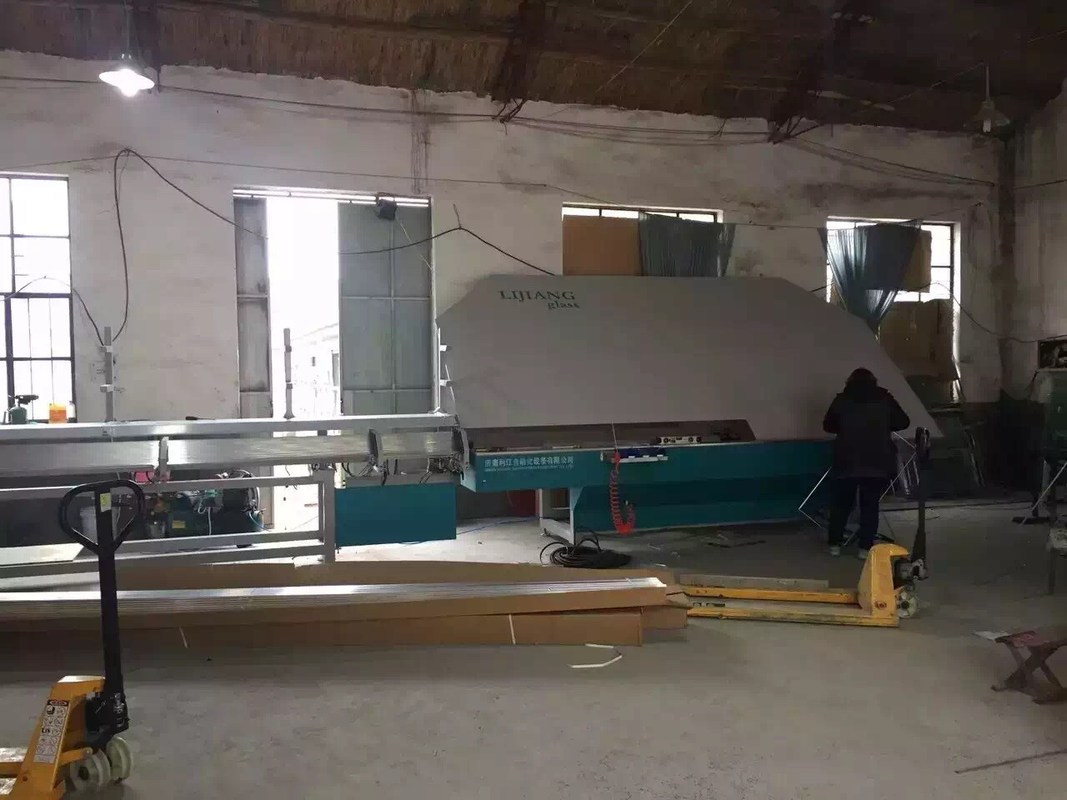

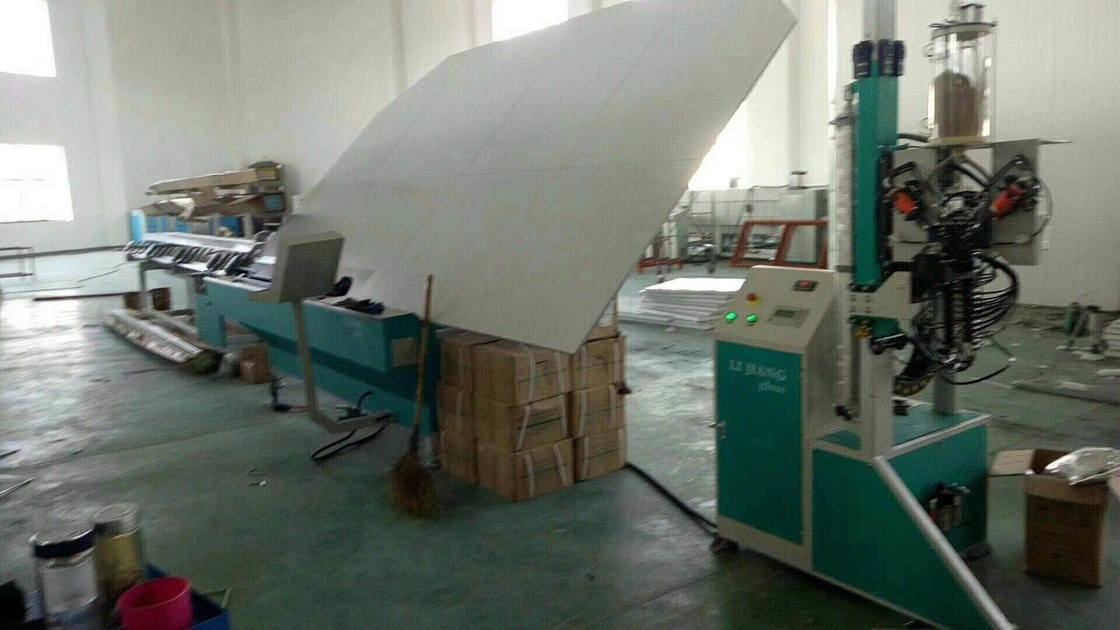

Automatic spacer bending machine is a special equipment for making aluminum frames of insulating glass, which replaces the traditional fabrication technology. This equipment can make a variety of convex polygonal aluminum frames by one aluminum strip in one time, thus strengthening the strength of the aluminum frame, making the sealing effect of the insulating glass more better.cleaning discharge section is inclined vertical structure. The transfer roller is a wear-resistant, acid-proof and alkali polyurethane roll. It adopts stepless frequency conversion speed regulation.

fully automatic inflatable hollow glass flat compression section. It is suitable for laminating double layer and multilayer insulating glass.

This machine can be used to compress hollow glass composed of planar glass of various shapes (including coated glass and laminated glass, etc.).

Equipment details

• Adopt Siemens PLC control system
• There are 4 Siemens servo
• Adopt 12 sets of racks which could storage more different sizes of spacers. Use Siemens servo to change different racks.
• Automatically cut and feed aluminum spacers

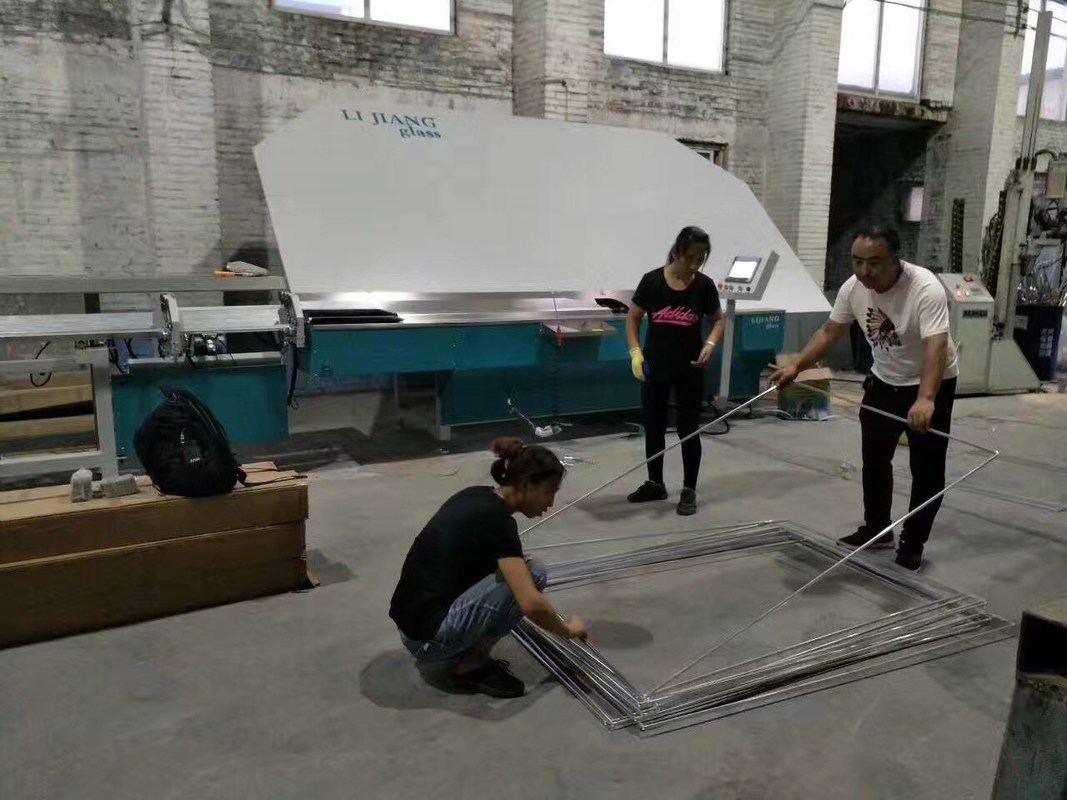

• Bend shaped spacer frames continuously
• Automatically avoid the connecting corner while bending and cutting
• The machine grabs the spacer from the top instead of grabbing the spacer from bottom, solving the old-fashioned reversing problem.
• Using industrial computer technology which could realize the on-site drawing by workers on the industrial computer and directly bending the drawn graphics.
• The special machine hand device is used to bend big spacer frame

• USB input function, read the excel format file directly etc (Optional)

• Precise bending effect, corner error less than 0.1mm.

• Spacer printing code function (Optional)
• Connect to ERP system (Optional)
• Heavy duty connectors is convenience and safety for installation and debugging

• Spare parts of all machine have ID codes.
• Automatic drill gas filling hole (Optional)
• Printing paper label sticker function (Optional),could remove it easily.
• Can bend aluminum spacer ,Technoform, Alupro, Thermix, warm spacer (Swisspacer) and stainless steel ( Optional) and so on.
• Electrical parameters
•

• NAME	BRAND	NAME	BRAND
  PLC	GERMAN SIEMENS	Triplet	Taiwan AIRTAC
  Low voltage electrical apparatus	GERMAN SIEMENS	Cylinder	Taiwan AIRTAC
  Servo motor	GERMAN SIEMENS	Solenoid valve	Taiwan AIRTAC
  Servo driver	GERMAN SIEMENS	Switch power	Taiwan TEND
  Relay	JAPAN OMRON	TOUCH SCREEN	Taiwan WEINVIEW
  Sensor	KOREA AUTONICS	GUIDE	Taiwan TBI
